Operation SDM-650B Satellite Modem
4–2 Rev. 5
4.1 Front Panel
The modem front panel (Figure 4-1) provides the local user interface, which is necessary
to configure and monitor the modem status.

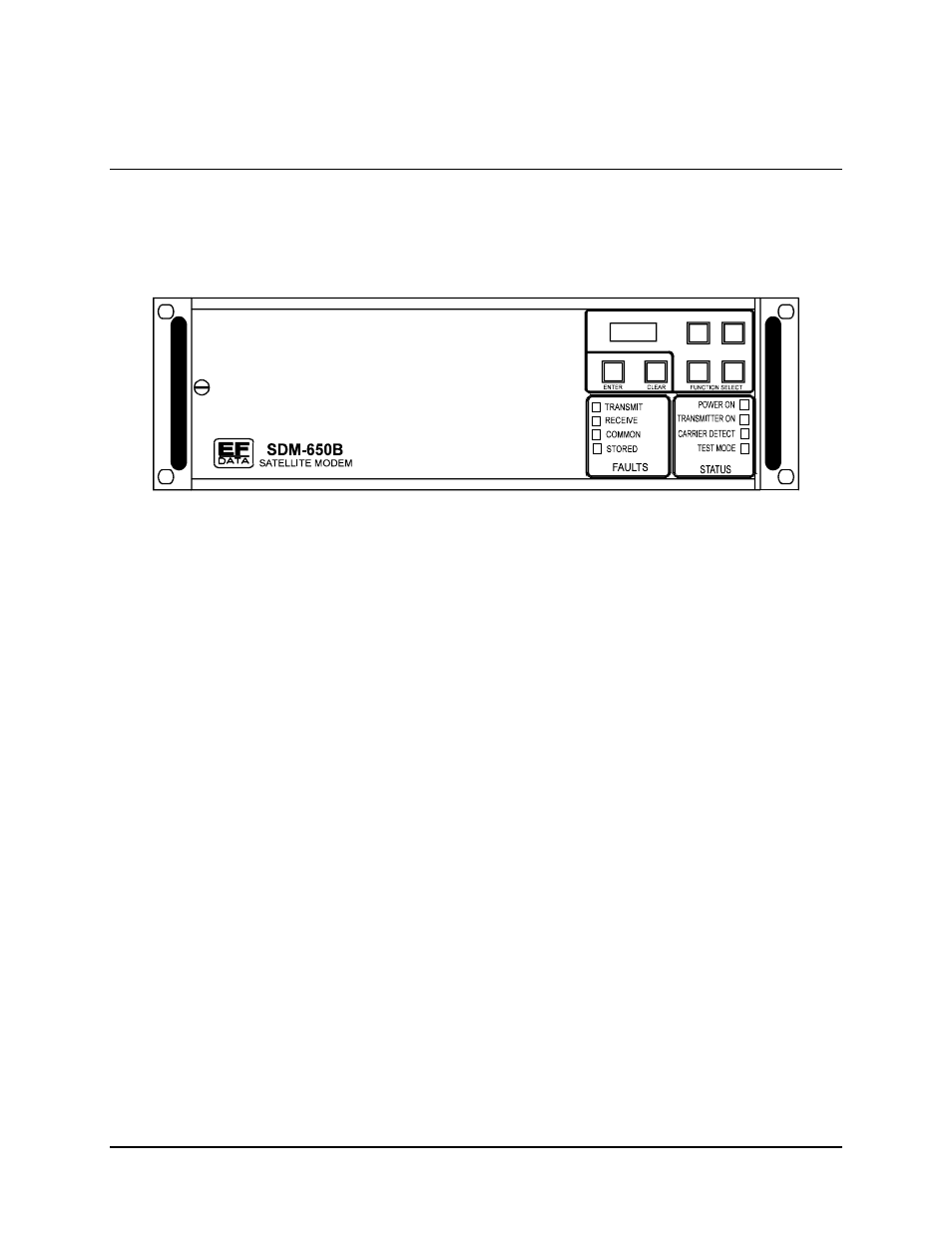

Figure 4-1. SDM-650B Front Panel View
The front panel features a 16-character, 2-line LCD display, and 6-key keypad that
provides sophisticated functions, yet is easy to use. Eight LED indicators are also present
on the front panel to provide overall status at a glance.
All functions are accessible at the front panel by entering one of five pre-defined Select
categories or levels:
• Configuration (Config)
• Monitor
• Faults
• Stored Faults (StFaults)
• Utility
