10/07 Rev. AA MANUAL EASY PLUG Commands
All devices
A = TTX 600 --TLX 604 – Eagle B = TTX 300 Offline -- Cobra Offline D = TTX 300 Online –TTX 207 -- Cobra Online – Da Capo
E = TTX 450/650/674/675/950/1050 – Puma/Puma plus/Lion/Lion plus/Tiger/Tiger XXL -- S45/65/95/105 -- TDI/STDI/XXTREME
G = TTX 350 – Ocelot – TTK – Texxtile H = 64-xx –Chess x –TT4 – DPM – PEM – ALX 92x – AP 4.4/5.4
67
R
#R X/Y Offset data blocks
X/Y Offset of all subsequent data blocks
Definition Logically or optically-related printouts (data blocks) can be shifted as a
whole.
The reference point #Tx or #Jx (see #T and #J )for all subsequent
positionings is shifted from the zero point by the entered x/y value.

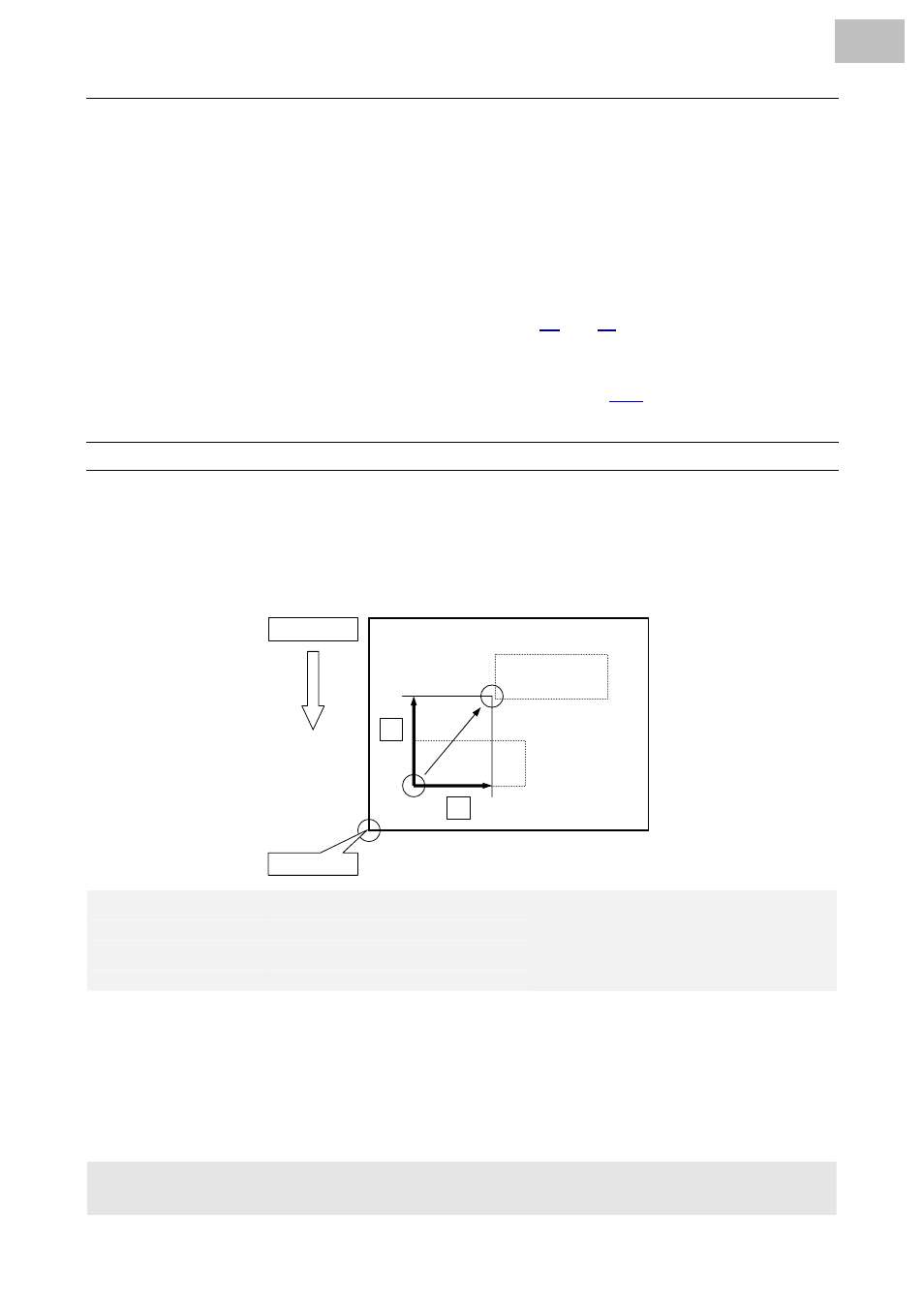

Zero point is the bottom, left-hand corner of the label (see illustration),
provided that this has not been shifted by the
#PO command.
Command must stand between #ER and #Q!
Syntax #Rvx/vy Groups B, D, E, G, H
v = + Offset in positive x / y direction
= - Offset in negative x / y direction
x = num Horizontal offset of the print position
y = num Vertical offset of the print position
Example #R5/5 Block is shifted to the right and upwards
by resp. 5 mm.
#R-5/-5 Block is shifted to the left and
downwards by resp. 5 mm.
+y
+x
Feed
Zero point
DEMO TEXT
DEMO TEXT
