Introduction
in2 data points declared in the FPM device and that the out1 data point in the FPM device is updating
the dynamic data point on the SmartServer.
To connect the data points declared in your FPM to the data points on the SmartServer, follow these
steps:
1. Create a dynamic SNVT_count data point on the VirtFB functional block under the i.LON App
(Internal) device. To do this, follow these steps:
1. From the tree, expand the Net network, expand the LON channel, and then expand the i.LON
App (Internal) device to show the VirtFB functional block at the bottom of its tree.

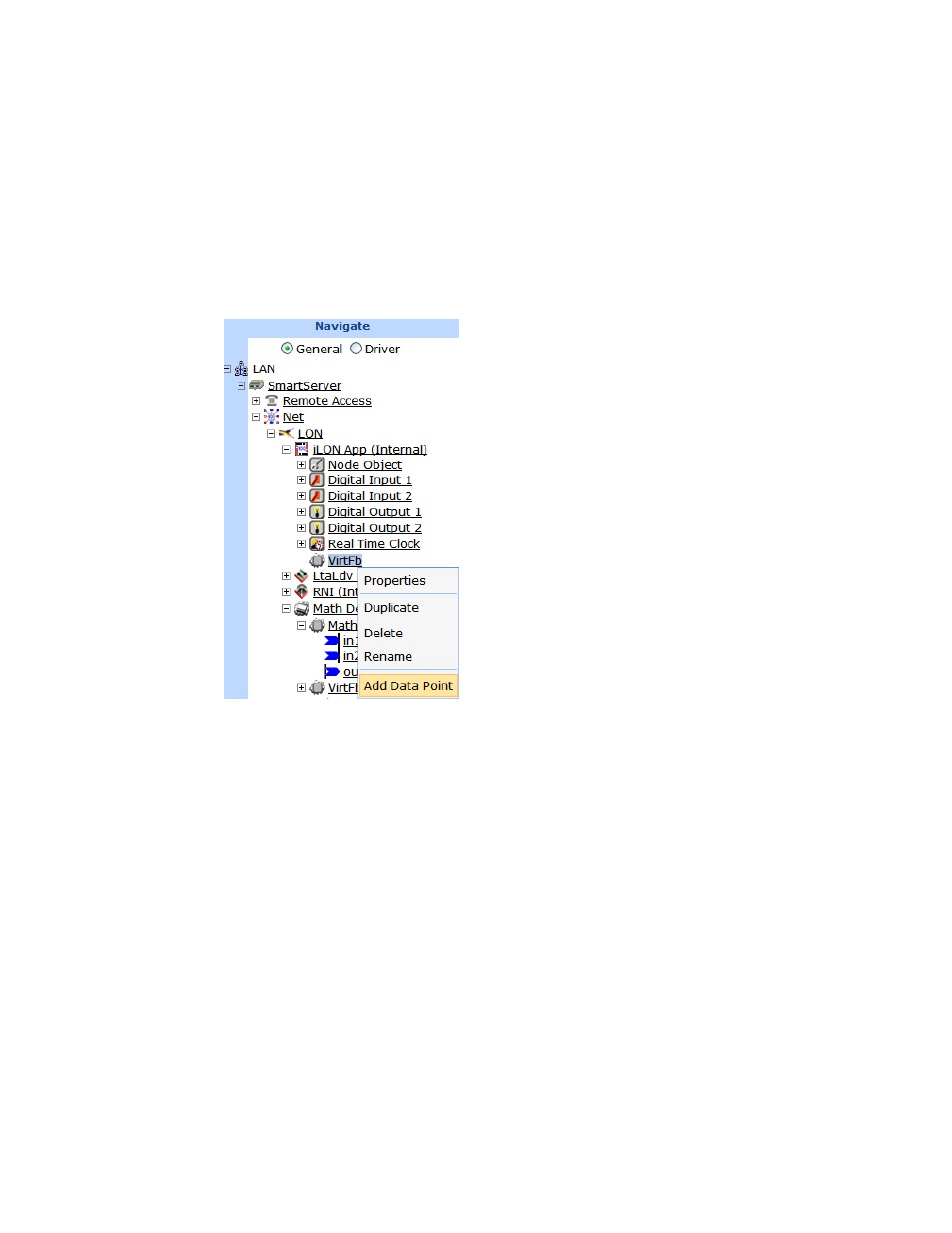

2. Right-click the VirtFB functional block and then click Add Data Point on the shortcut menu.
3. The Add Data Point dialog opens.
4. In the Name property, enter a meaningful name such as “count1”.
5. In the Select property, expand the Dynamic icon, expand the root/lonworks/types directory,
expand the standard resource files folder, expand Network Variable Types, and then click the
SNVT_count data point.
