16

Introduction

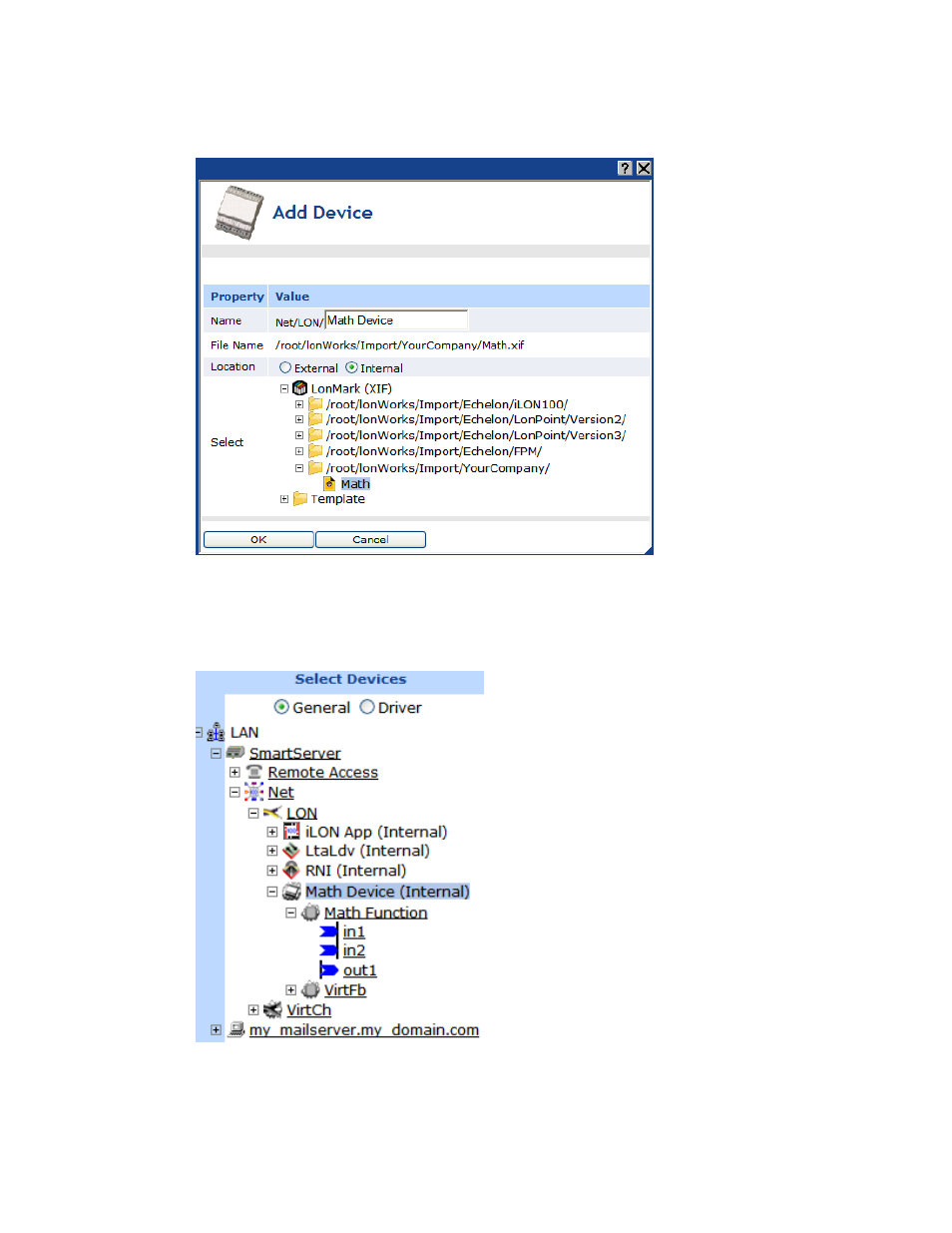

5. Expand the LonMark (XIF) folder, expand the root/lonworks/import/<YourCompany> folder,

and then select the XIF for your Math FPM.

6. Click OK. A Math Device (Internal) device is added to the bottom of the LON channel tree.

7. Click Submit. You must wait for the SmartServer to instantiate the XIF file used for the internal

Math device. The time it takes depends on the size of the XIF. Once the XIF has been
instantiated, you can expand the Math Device (Internal) device and the Math Function
functional block to show the data points in the FPM application.
