96 Creating Freely Programmable Modules

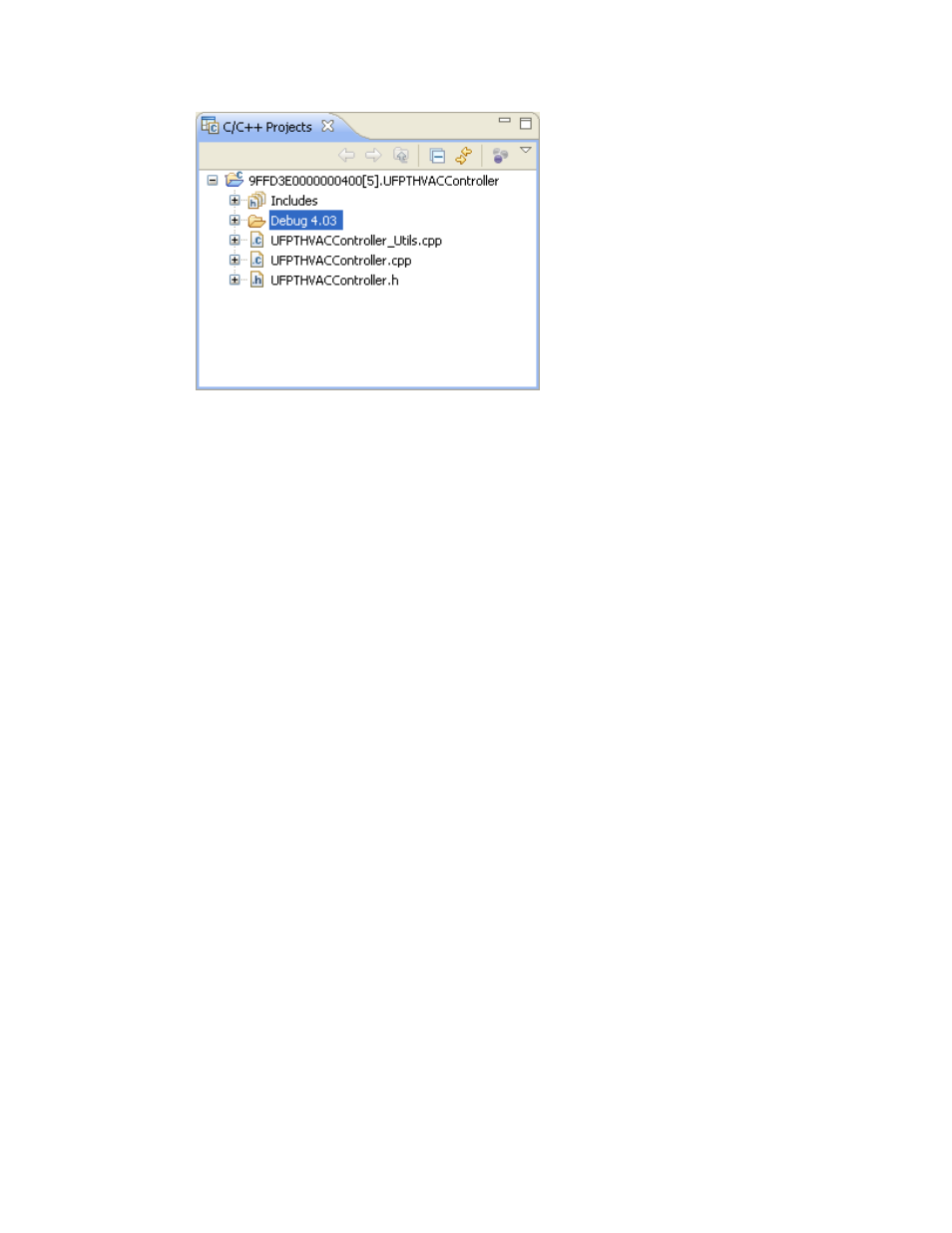

8. Upload the debug configuration of your FPM to your SmartServer. To do this, expand the Debug
4.03 or Debug folder, right-click the <company program ID>.UFPT<FPM name>.app || .drv file
and then click Transfer to i.LON SmartServer in the shortcut menu. In the Install FPM
Module dialog, enter the IP address or hostname of your SmartServer in the Host box, select the
Reboot check box, click Finish, and then click Yes to confirm the rebooting of your SmartServer.
9. Deploy the debug configuration of the FPM on your SmartServer as described in Adding FPM
Devices to the SmartServer in Chapter 6.
10. Connect the Workbench debugger to the iLonSystemWdb or iLonSystemWdbEnd image on
your computer via the target server, following these steps:
a. Verify that the WorkBench registry is running.
b. Right-click anywhere in the Target Manager view, point to New, and then click
Connection… on the shortcut menu.
