3-66
a.Fix: Replace the snap ring and run through all
the gear selector positions. Test the unit in nor-
mal

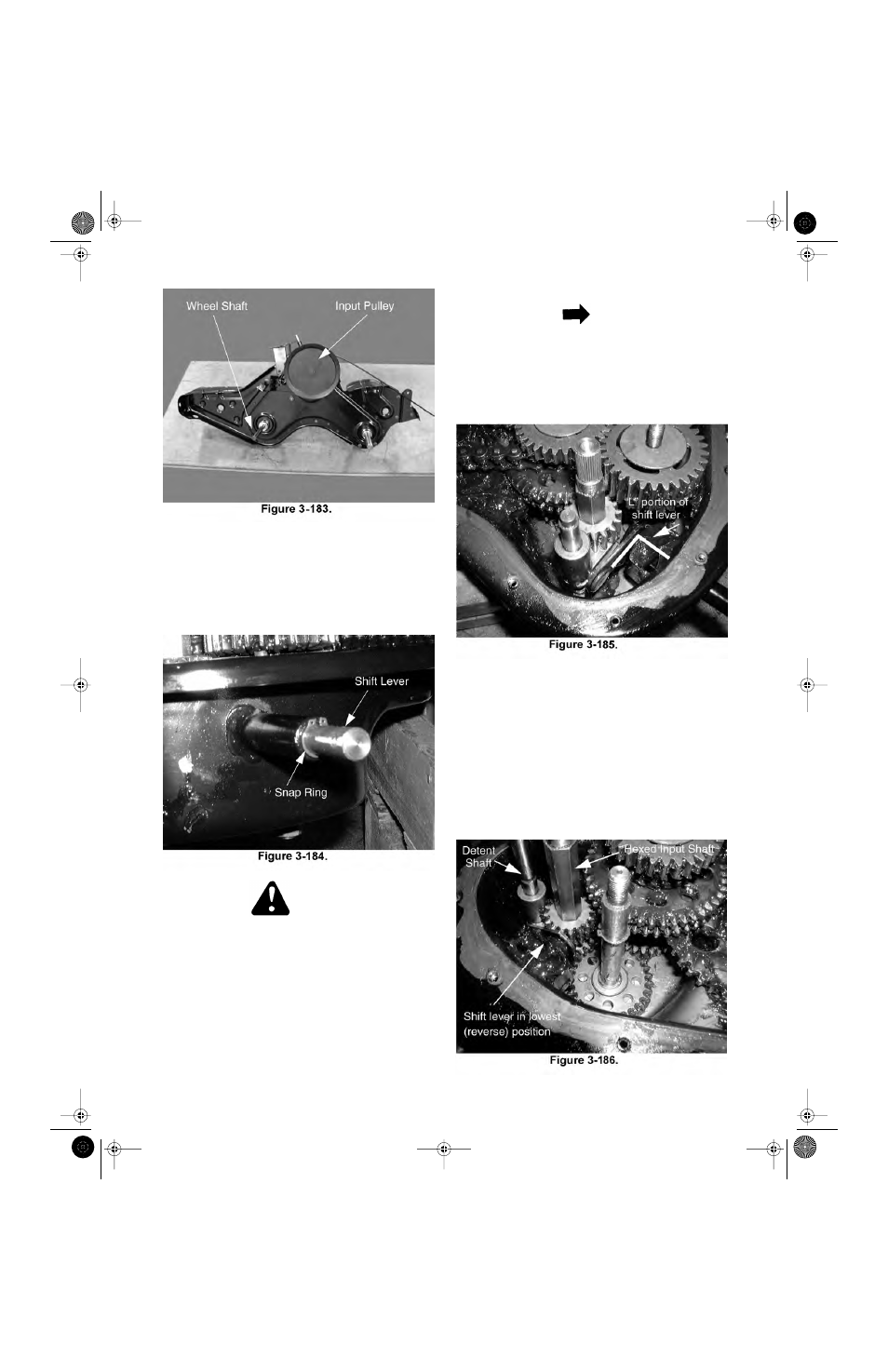

11.With the spring pin and indicator bracket
removed, does the shift lever have a snap ring
securing it in place? See Figure 3-184.
CAUTION
Internal damage may have occurred to the
shift lever because of the missing snap ring. If
damaged, proceed to the Interior Gear Case
Assembly Inspection section.
a.Fix: Replace the snap ring and run through all
the gear selector positions. Test the unit in nor-
mal operating conditions to make certain inter-
nal damage did not occur. If damage, proceed
to the Interior Gear Case Assembly Inspection
section.
Interior Gear Case Assembly Inspection
NOTE
Perform the Tiller Gear Case Assembly
Removal and the Gear Case Separation sec-
tions prior to performing the interior inspection.
1.Inspect the “L” portion of the shift lever where it
engages into the shift fork. See Figure 3-185.
2.Is the “L” portion of the shift lever bent and not
allowing the shift fork to move through all
detent positions?
a.Fix: Proceed to the Shift Lever Replacement
section.
REVERSE WHEELS:
1.Using a drift punch, rotate the shift lever to the
reverse drive position (all the way down). See
Figure 3-186.
