3-23
3
2.Lift belt off transmission pulley and engine pul-
ley.
3.Remove hex nut which secures reverse idler
pulley to idler bracket. Slide idler pulley out and

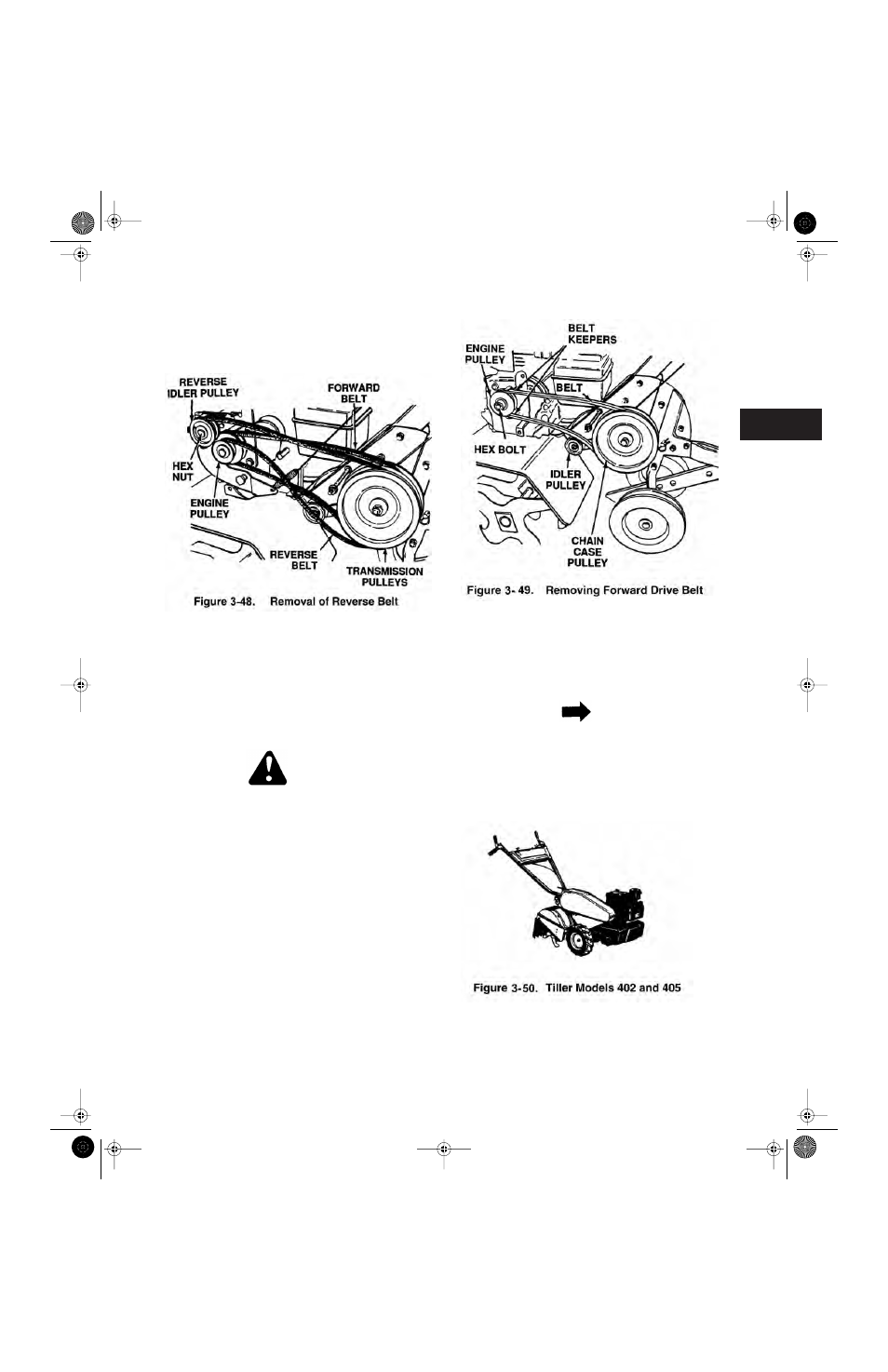

remove belt. See Figure 3-48.
4.Reassemble new belt following instructions in
reverse order. Make certain reverse drive belt
is assembled with the wide side of belt against
transmission and engine pulleys. Be certain to
adjust clutch control as instructed in the final
clutch adjustment section.
3-5.8 Forward Drive Belt Removal and
Replacement.
WARNING
Disconnect spark plug wire and ground it
against engine.
1.Remove belt cover as instructed in step 1 of
previous subsection.
2.To remove forward drive belt on 390 models,
first remove reverse drive belt as instructed
previously.
3.Remove belt from idler pulley and from around
chain case pulley.
4.Using a 9/16 inch wrench, remove hex bolt
which secures engine pulley. Slide pulley half
out from between belt keepers. Remove belt.
See Figure 3-49.
5.Install new belt following instructions in reverse
order. Make certain forward drive belt is
assembled with the wide side of belt away from
transmission and engine pulleys. Be certain to
adjust clutch control as instructed in the final
clutch adjustment section.
NOTE
Upon reassembly, make certain the belt is
routed in between belt keepers at engine pul-
ley and over idler pulley.
3-6. TILLER MODELS 402 AND 405. See Figure
3-50 and Table 3-5.
