3.Remove belt. Reassemble new belt following
instructions in reverse order.
NOTE
Upon reassembly, make certain the belt is
routed over idler pulley and inside of belt keep-

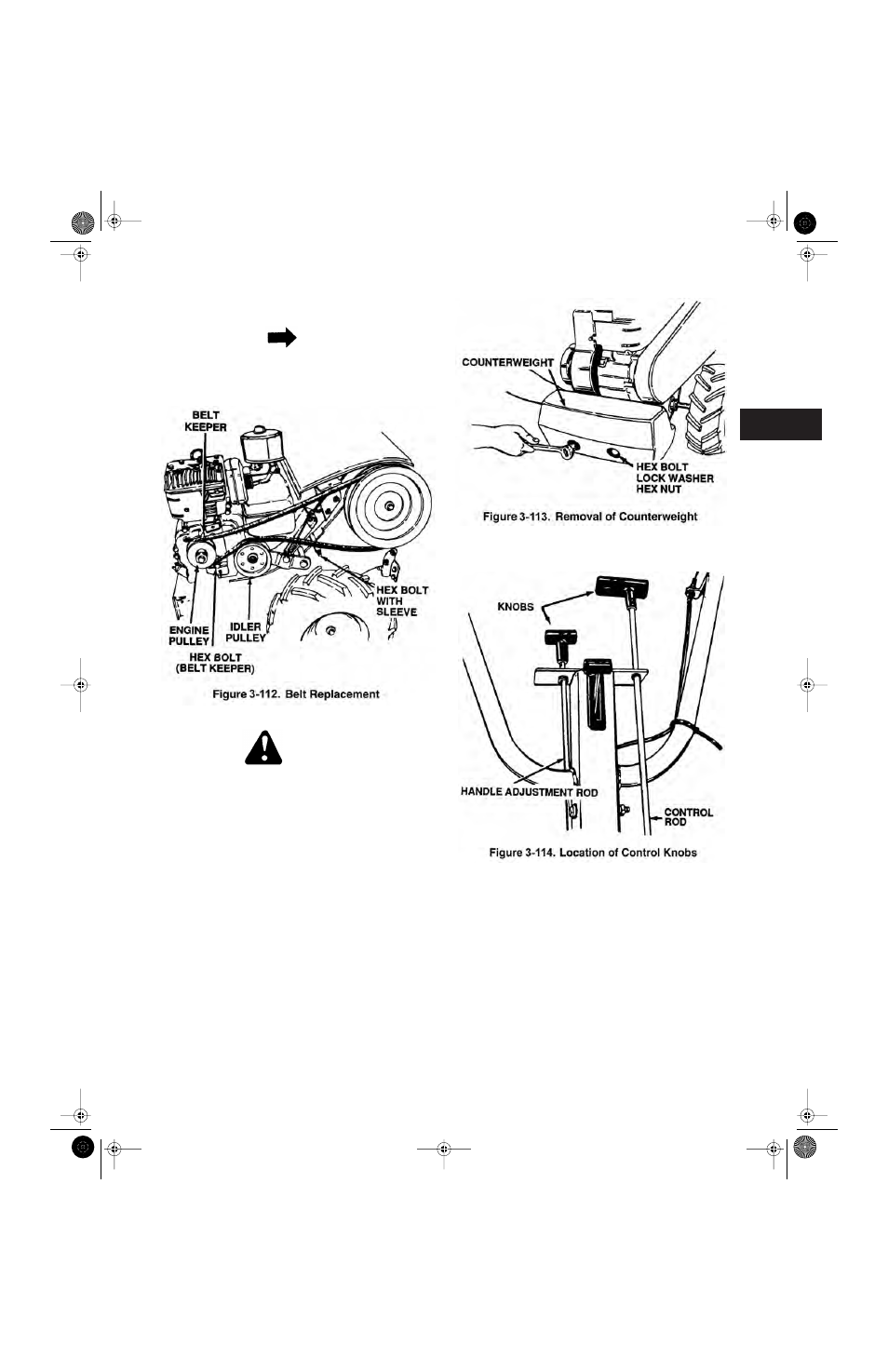

ers at engine pulley. See Figure 3-112.
3-9.4 Disassembly of Tiller.
WARNING
Disconnect spark plug wire and ground it
against engine before performing any repairs.
1.Remove counterweight from the front of tiller
by removing two hex bolts, flat washers, 1/2
inch lock washers and hex nuts. See Figure 3-
113.
2.Remove knobs from control rod and handle
adjustment rod. See Figure 3-114.
3.Remove cotter pin from the end of handle
adjustment rod at positioner bracket. Remove
handle adjustment rod. See Figure 3-115.
