Cub Cadet I-Beam Style User Manual
Page 104
3-85
3
NOTE

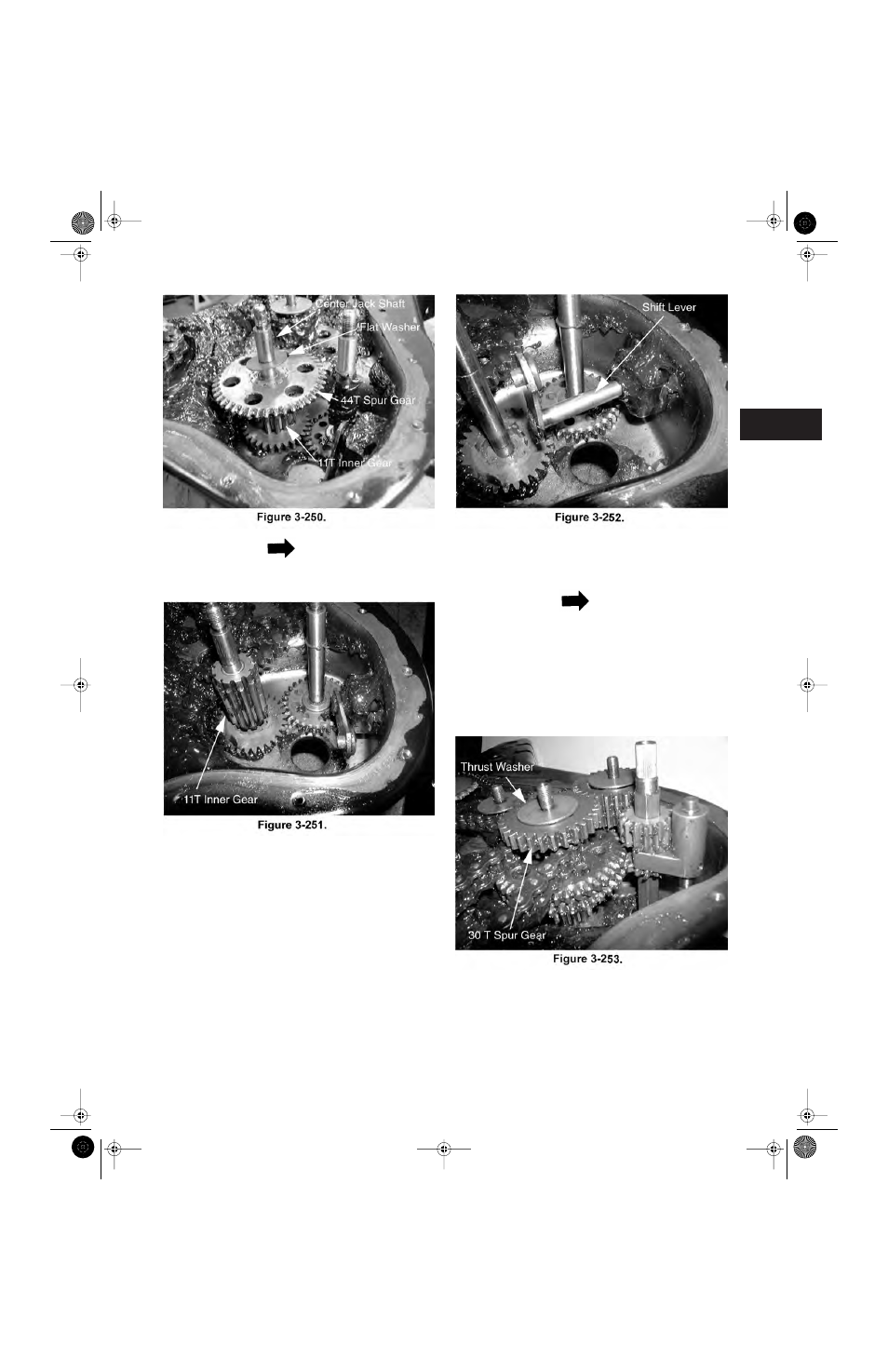

The 11T inner gear assembly is stepped on
both the top and bottom. See Figure 3-251.
11.Remove the shift lever from the gear case.
See
Figure 3-252.
12. Assemble in the reverse order above.
Tine Shaft Removal
NOTE
Perform the Tiller Gear Case Assembly
Removal and the Gear Case Separation sec-
tions prior to performing tine shaft assembly
removal.
1.Remove the large thrust washer and 30T spur
gear from the center jack shaft. See Figure 3-
253.
2.Grasp the 18T tine shaft assembly and 9T tine
input sprocket assembly and raise both until
the 9T tine input sprocket assembly comes
Tillers.fm Page 85 Tuesday, February 19, 2002 1:28 PM
