CanogaOS Configuration Guide
Proprietary & Confidential Canoga Perkins Metro Ethernet Switches Page 304 of 350
eth-0-1 Vlan 2
trust port
eth-0-2 Vlan 2
eth-0-3 Vlan 2
eth-0-4 Vlan 2
Switch B
Switch A
(ARP Inspection)
Computer A
Computer B
Computer C

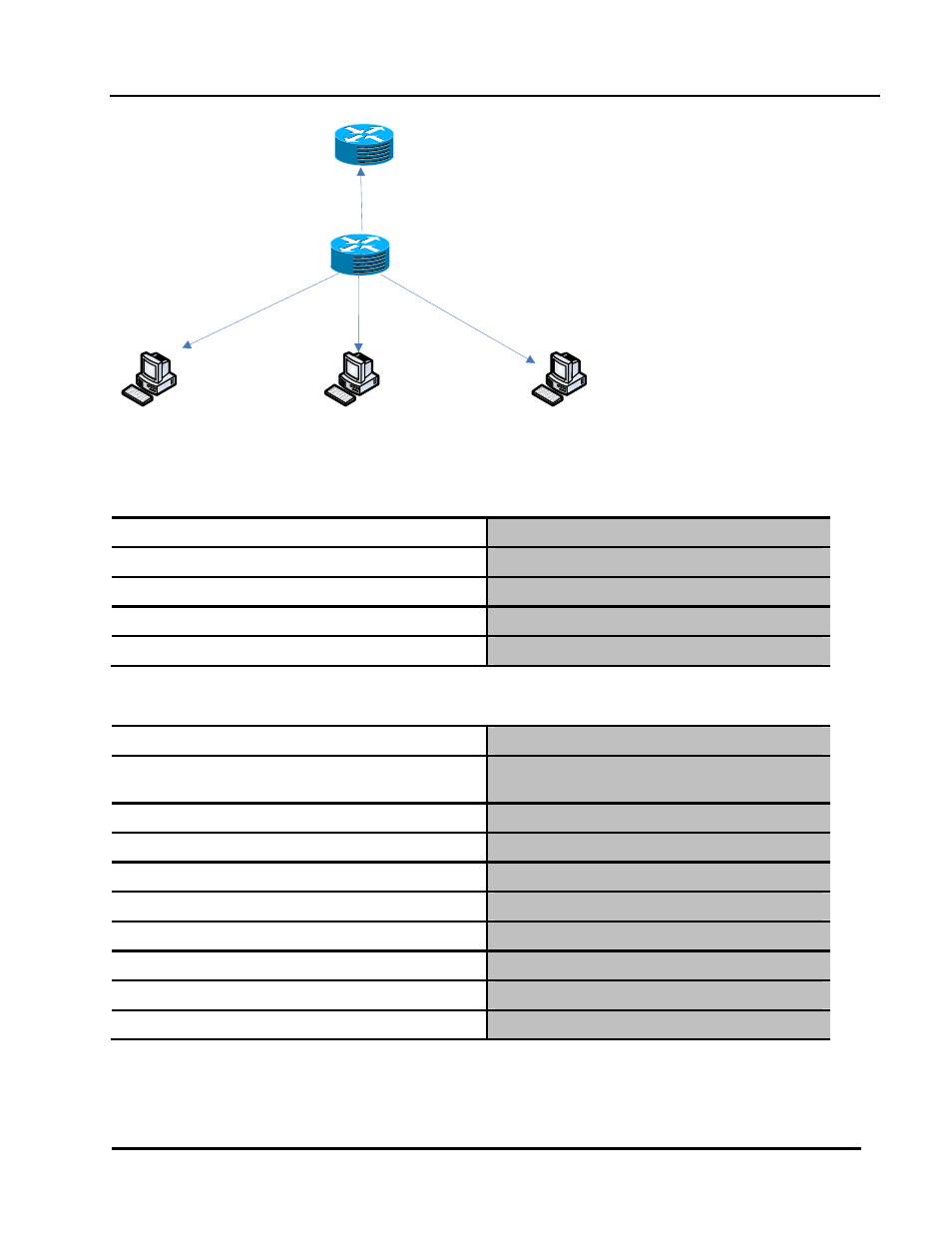

This figure is the networking topology for testing ARP Inspection functions.
36.1.3 Configurations
Create vlan
DUT#configure terminal Enter the Configure mode.
DUT(config)#vlan database Configure VLAN database.
DUT(config-vlan)#vlan 2 Create vlan 2.
DUT(config-vlan)#exit Exit the vlan Configure mode.
DUT(config)#exit Exit the Configure mode.
Add interface to vlan
DUT#configure terminal Enter the Configure mode.
DUT(config)#interface eth-0-1 Enter the Interface Configure mode and begin to
configure port eth-0-1
DUT(config-if)#switchport access vlan 2 Add the port to vlan 2.
DUT(config-if)#interface eth-0-2 Begin to configure port eth-0-2.
DUT(config-if)#switchport access vlan 2 Add the port to vlan 2.
DUT(config-if)#interface eth-0-3 Begin to configure port eth-0-3.
DUT(config-if)#switchport access vlan 2 Add the port to vlan 2.
DUT(config-if)#interface eth-0-4 Begin to configure port eth-0-4.
DUT(config-if)#switchport access vlan 2 Add the port to vlan 2.
DUT(config-if)#exit Exit the Interface Configure mode.
Configure ARP Inspection
