2. Remove the empty core.
WARNING Hot surface. Do not touch the printer mechanism.

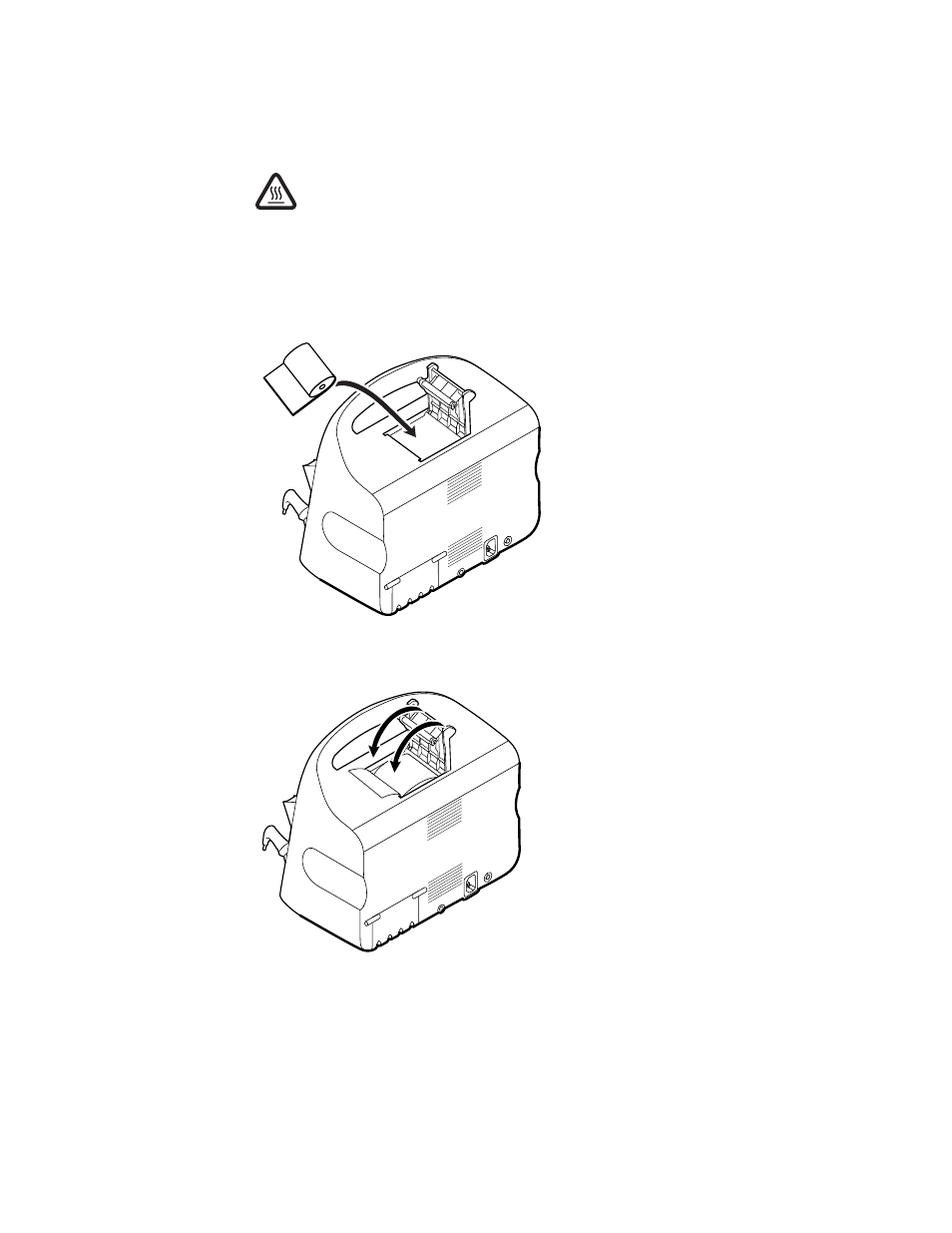

3. Insert a new roll of paper.
Note The paper roll must be installed so that it unwinds from the
bottom of the roll, as illustrated. If the paper roll is not
installed correctly, the printer will not print properly.
4. Advance the end of the roll past the roller so that it extends past the printer door, as
shown.
5. With one hand, pull lightly on the paper to take up any slack. With the other hand,
close the printer door by pushing it down and into place until it clicks.
Be certain that the paper does not catch in the printer door.
Change the battery
Before removing the battery, shut down the monitor.
1. Turn the monitor upside down to access the battery cover.
158 Maintenance and service Welch Allyn Connex ® Vital Signs Monitor 6000 Series™
