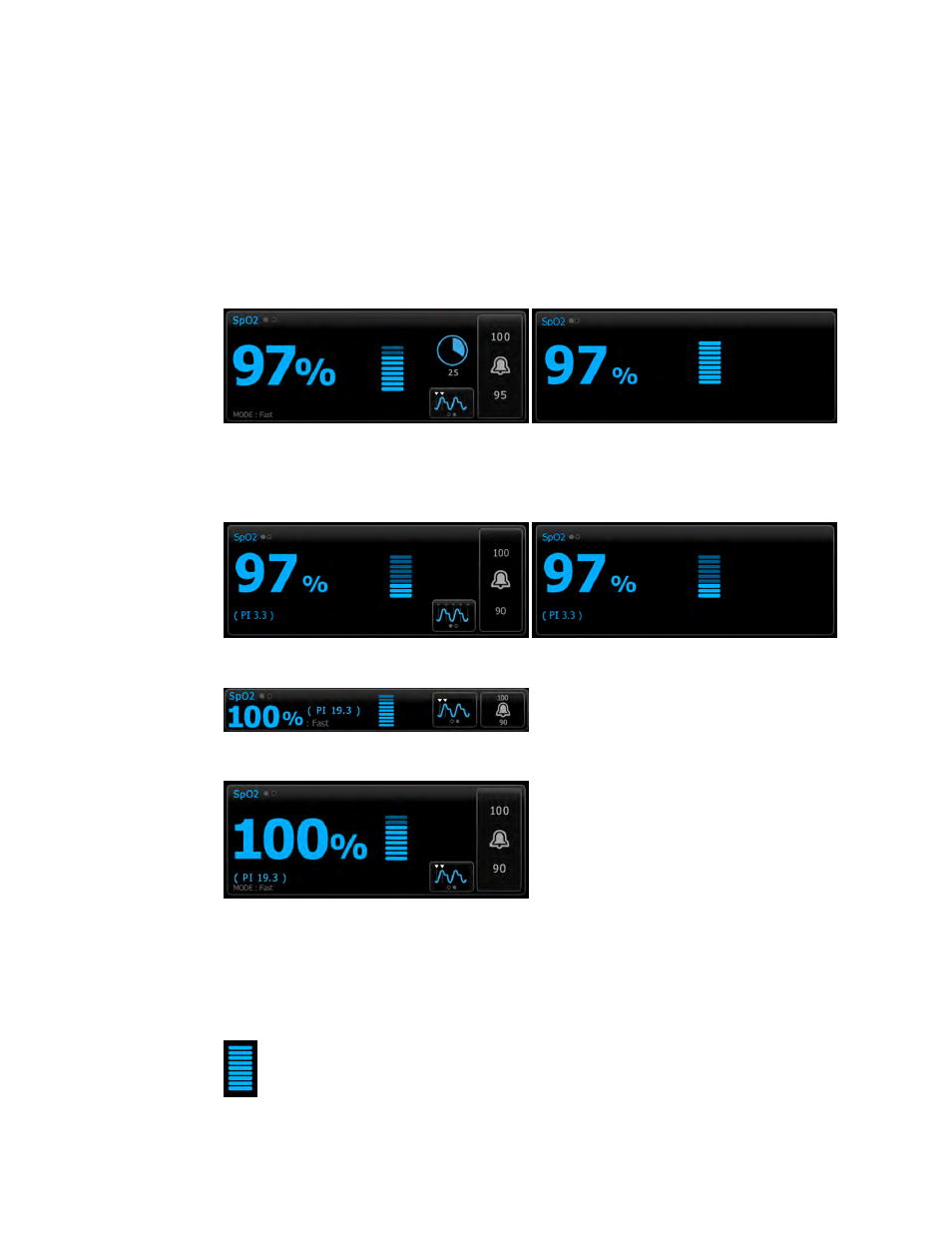

SpO2 numeric view
The numeric view indicates the SpO2 saturation percentage and the pulse amplitude.
Features of this view differ based on the type of sensor enabled and the profile selected.
The size of the SpO2 frame and displayed measurements varies based on your
configuration.
Nellcor sensor
Intervals Monitoring and Continuous Monitoring profiles Spot Check and Triage profiles
Masimo sensor
Intervals Monitoring profile, no SpHb license Spot Check and Triage profiles
Intervals Monitoring profile, SpHb license activated
Continuous Monitoring profile
Pulse amplitude
The pulse amplitude bar indicates the pulse beat and shows the relative pulse strength.
More bars illuminate as the detected pulse gets stronger.
Directions for use Patient monitoring 143
