Note Monitors configured with EarlySense cannot be configured with Masimo
rainbow Acoustic Respiration (RRa) or Oridion Microstream® capnography.
Note Patient movement monitoring is not available for neonatal/infant patients.
Note The EarlySense system has not been studied on any specific patient group,
nor has it been studied as a tool to diagnose any specific disease of
medical condition. It is an adjunctive tool used to measure respiratory rate,
pulse rate, and patient movement.

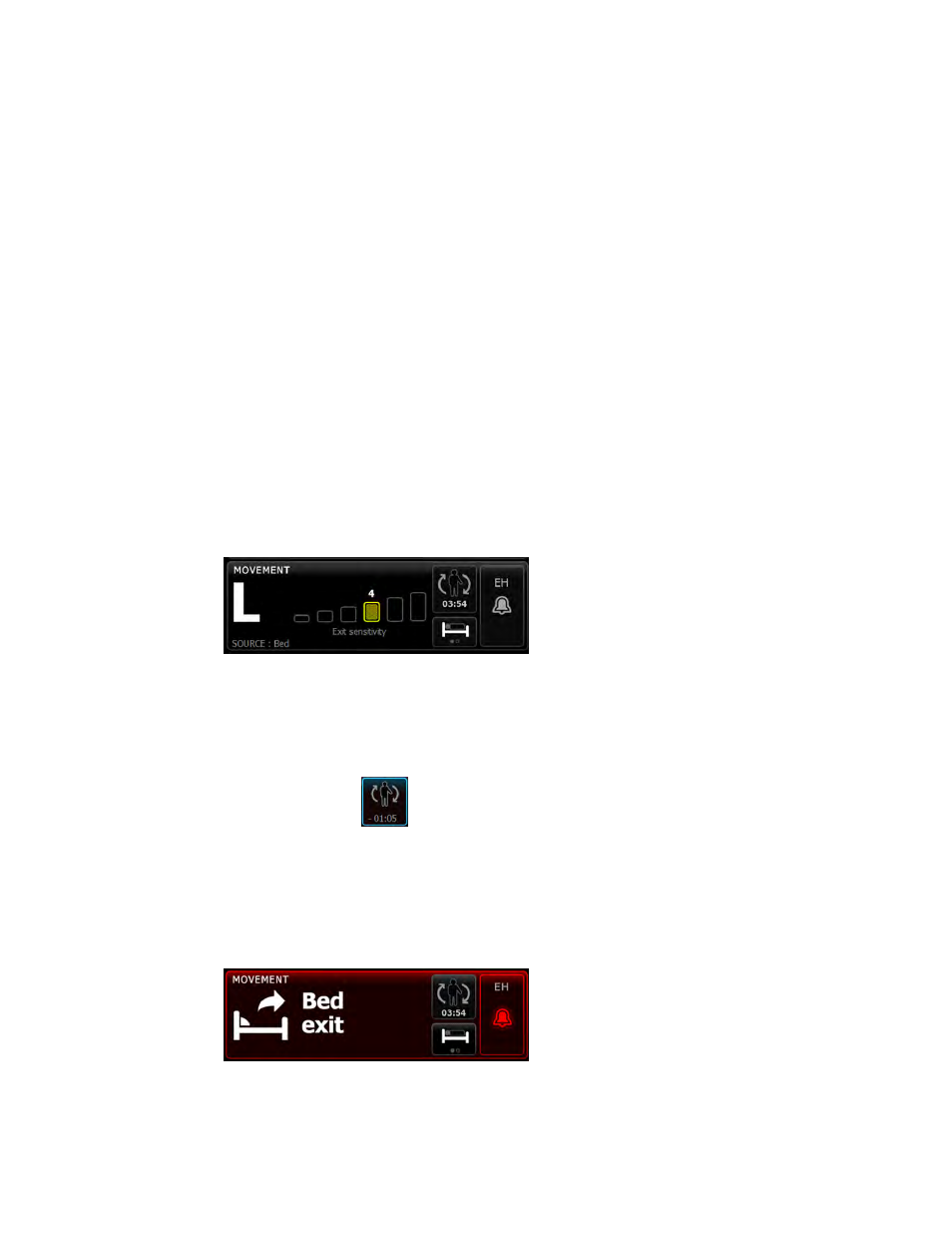

Movement frame
The Movement frame displays the following data and controls used to monitor patient
movement:
•
Patient motion level
• Exit sensitivity
• Movement-related alarm conditions
• Patient turn events and status (time overdue or time remaining until next scheduled
turn)
• Sensor source indicator
The size of the Movement frame and displayed data varies based on your configuration.
If the patient turn reminder is active, the timer counts down to zero and then displays a
reminder in the Device Status area to perform and log a patient turn. If a scheduled
patient turn remains overdue, a "Patient turn overdue" alarm message appears in the
Device Status area, and the patient turn control is highlighted based on the priority of the
alarm (for example, indicates a very low alarm). The timer displays a negative
time until the next patient turn or the timer reaches –99:59.
Exit alarm view
The Exit alarm view is displayed automatically when an exit alarm is triggered. An exit
graphic replaces the movement level and exit sensitivity indicators in the frame. The
entire frame and alarm icon are highlighted based on the priority of the exit alarm.
Set up movement
The Movement vertical tab (Settings > Setup > Movement) presents information on
the status of sensors. Only alarm settings and modifiers can be changed for this
Directions for use Patient monitoring 101
