Changing the Password Using the Personal Computer Interface (PCI)

For this procedure, the PC must be connected to the Controller via
USB cable, and the Controller must be ON.

1. Go to File > Change Safety Controller Password. The

Change Password screen will appear.

2. Fill in the boxes for Safety Controller password, new pass-

word, and new password again. Click OK.

3. The Entering Configuration Mode screen will appear, saying,

“Are you sure you want to do this? All Safety Outputs will be
turned off.” (If you click Yes, all Safety Outputs will turn OFF,
along with the machine or system the Safety Controller is
monitoring.)

4. Click Yes. The Change Password screen will reappear.
5. Click Close. The password is now changed. Record the

password for safekeeping.

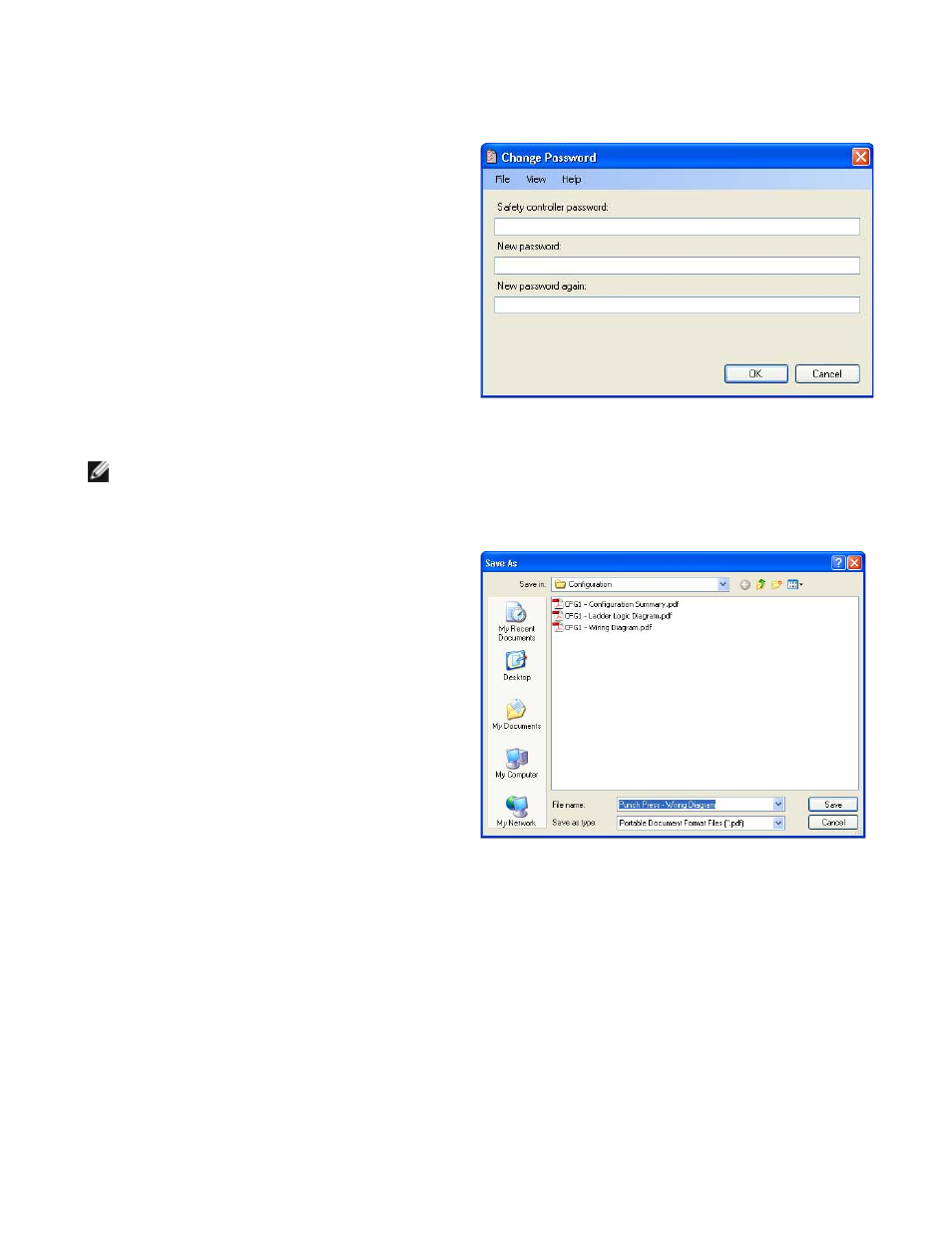

Figure 43. Change Password screen

NOTE: If the password becomes lost, contact Banner Engineering for assistance.

Export Documents

Configuration notes can be exported in different formats. To export
a configuration document:

1. Open the configuration file that you want to save.
2. Go to File > Export in the upper left of the tool bar.
3. Select the configuration document you want to export.
4. Verify that the File name is correct and pick the Save as

type file option you need.

5. Select Save.

Figure 44. Save As screen

Print Options

To print a configuration file:

1. Open the configuration file that you want to print.
2. Go to File > Print in the upper left of the tool bar.
3. Select the configuration document you want to print.
4. A Page Setup menu will appear. Make the page and printer choices and click OK. (Hint: Wiring diagrams typically fit the page

better when “landscape” is selected; the other documents fit better on “portrait.”)
