One-Channel EDM Hookup to IM-T-9A Interface Module

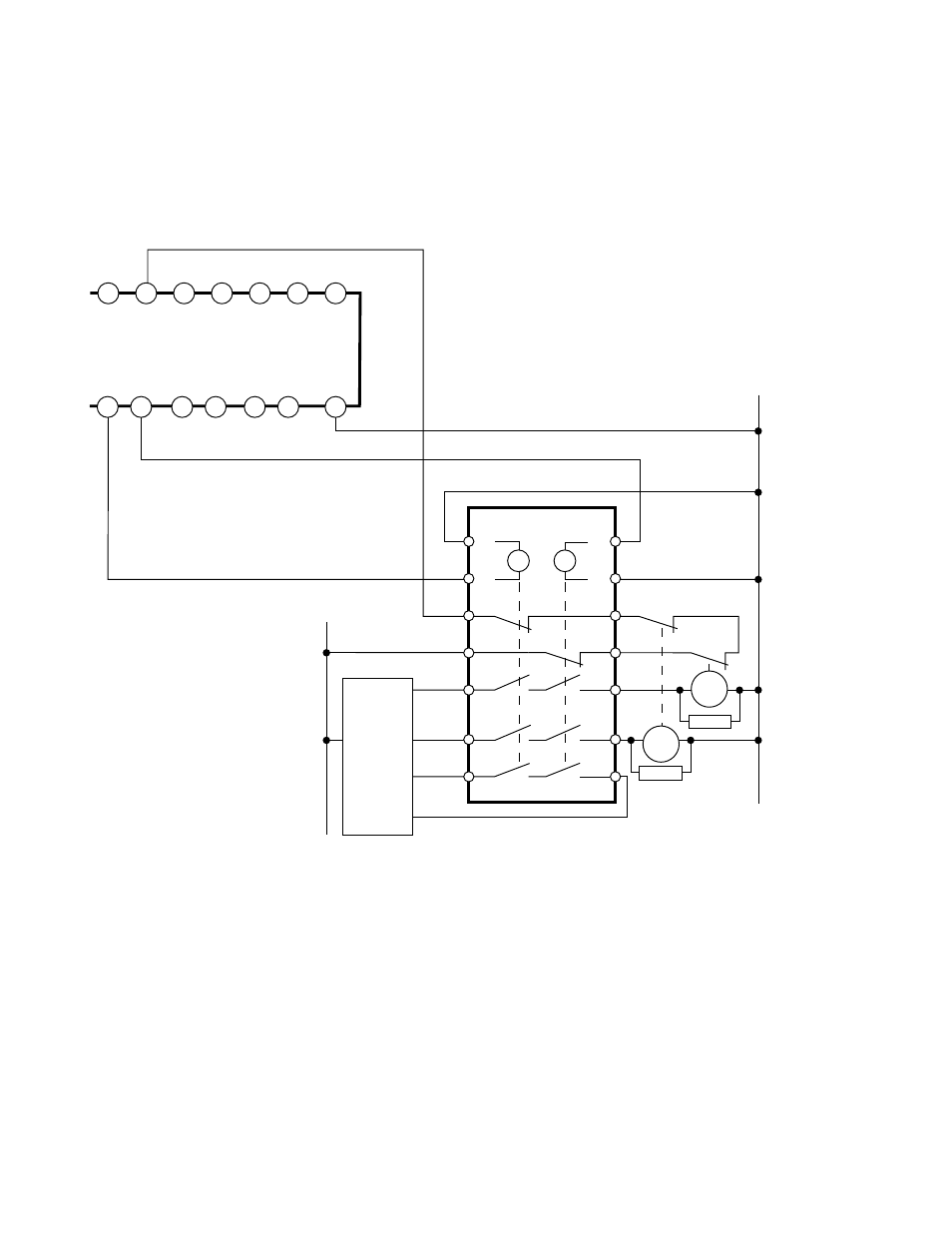

The IM-T-9A interface module depicted in the following figure is shown in one-channel EDM hookup. The IM-T-11A module is connected
in a similar manner.

Depending on the application, each Safety Output requires a separate and individually wired IM-T-..A module.

0V dc

S3

S4

Y3

Y1

13

23

33

Y4

Y2

14

24

34

S1

S2

K2

K1

MPCE

2

MPCE

1

IM-T-9A

*

*

1A 1B

2A 2B

3A 3B

A2

SO1

SO2

SO3

+24V dc

Feedback (optional)

* Installation of transient (arc) suppressors across the coils of MPCE1 and MPCE2

is recommended (see Warning)

Machine

Control

Input Terminals

Safety Controller

Figure 31. Hookup: One-channel EDM hookup to IM-T-9A interface module

SC22-3/-3E Safety Controller Instruction Manual

48

www.bannerengineering.com - tel: 763-544-3164

P/N 133487 rev. C
