10.11.10 Mute Timing Sequences

Safety Light Screen

Mute Enable

Mute Sensor 1

Mute Sensor 2

Backdoor Timer

Safety Output

Max.

Time

Max.

Time

Max.

Time

Max.

Time

<

 3s

<

 3s

Mute cycle ends due to the

expiration of the Backdoor Timer

Mute cycle ends due to the

expiration of the Backdoor Timer

Mute cycle prevented due
to open Mute Enable input

Mute cycle prevented due
to open Mute Enable input

Power

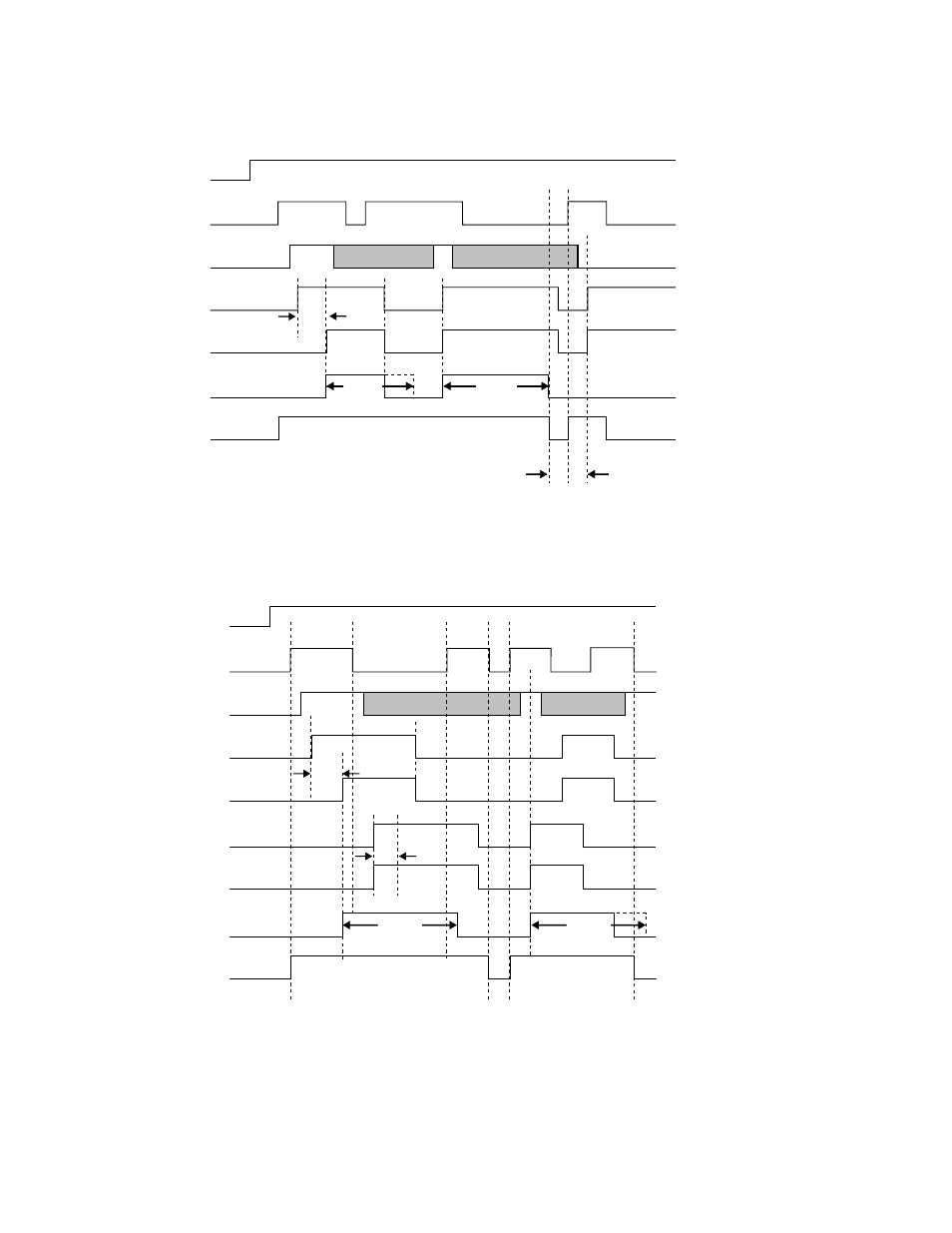

Figure 67. Timing logic: two mute sensors, mute enable, safety light screen and limited mute time. Mutable safety device config-
ured for Auto Reset.

Power

Safety Light Screen

Mute Enable

Mute Sensor 1

Mute Sensor 2

Mute Sensor 3

Mute Sensor 4

Backdoor Timer

Safety Output

Max.

Time

Max.

Time

Max.

Time

Max.

Time

<

 3s

<

 3s

<

 3s

<

 3s

Figure 68. Timing logic: four mute sensors, mute enable, safety light screen and limited mute time. Safety light screen config-
ured for Auto Reset.

When a two-hand control is muted: Once muted, the outputs will remain ON until one of the mute sensors opens, another safety input
device causes a stop, the mute time limit (backdoor timer) expires, a lockout occurs, or the Module loses power. Both hand control actua-
tors must be released in order to start another cycle.
