Two-Channel EDM Hookup to IM-T-9A Interface Module

The IM-T-9A interface module depicted in the following figure is shown in two-channel EDM hookup. The IM-T-11A module is connected
in a similar manner. Depending on the application, each Safety Output requires a separate and individually wired IM-T-..A module.

0V dc

S3

S4

Y3

Y1

13

23

33

Feedback (optional)

* Installation of transient (arc) suppressors across the coils of MPCE1 and MPCE2
is recommended (see Warning)

Y4

Y2

14

24

34

S1

S2

K2

K1

Machine

Control

MPCE

2

MPCE

1

IM-T-9A

Input Terminals

Safety Controller

*

*

1A

1B

2A

2B

3A

3B

A2

SO1

SO2

SO3

+24V dc

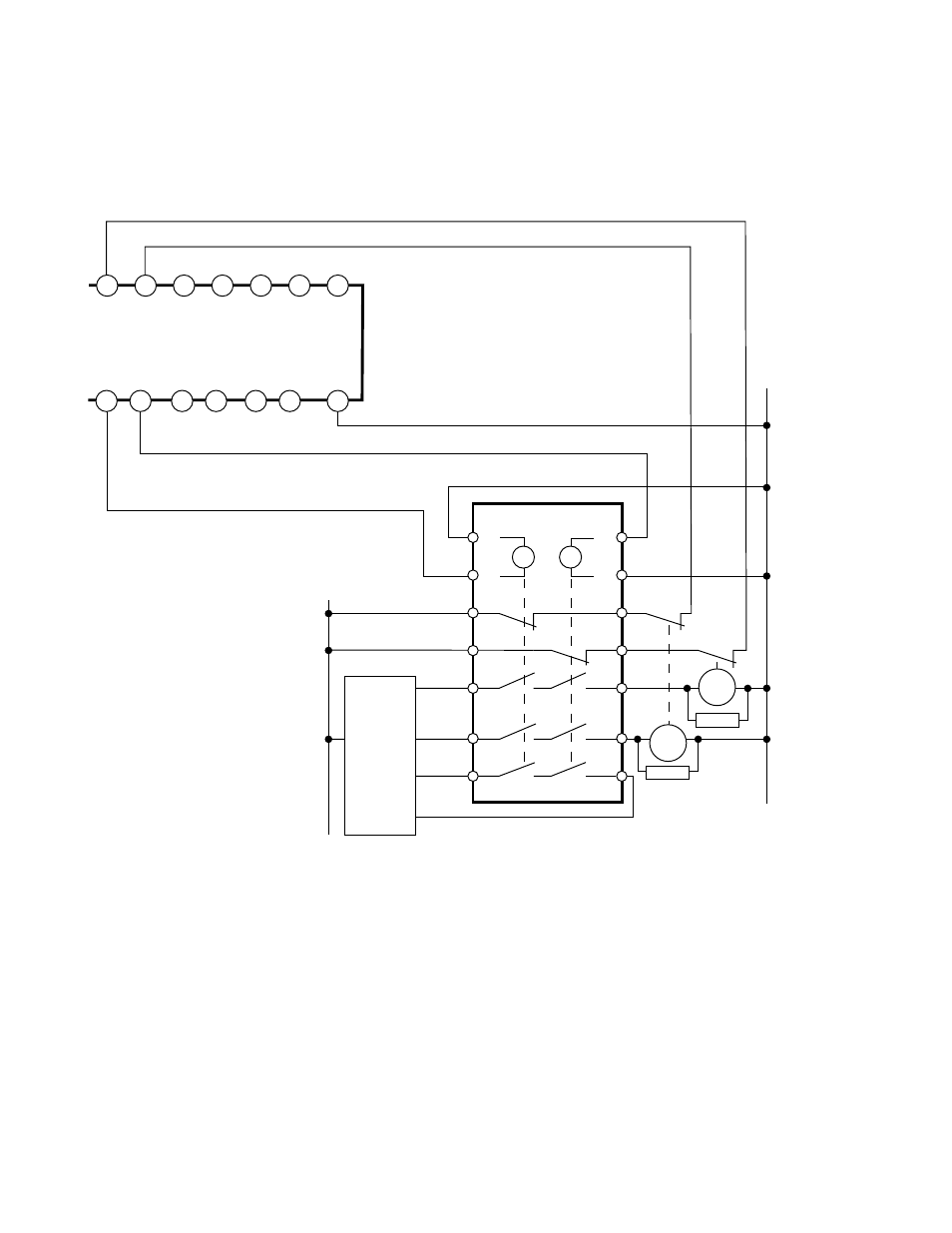

Figure 30. Hookup: Two-channel EDM hookup to IM-T-9A interface module

SC22-3/-3E Safety Controller Instruction Manual

P/N 133487 rev. C
