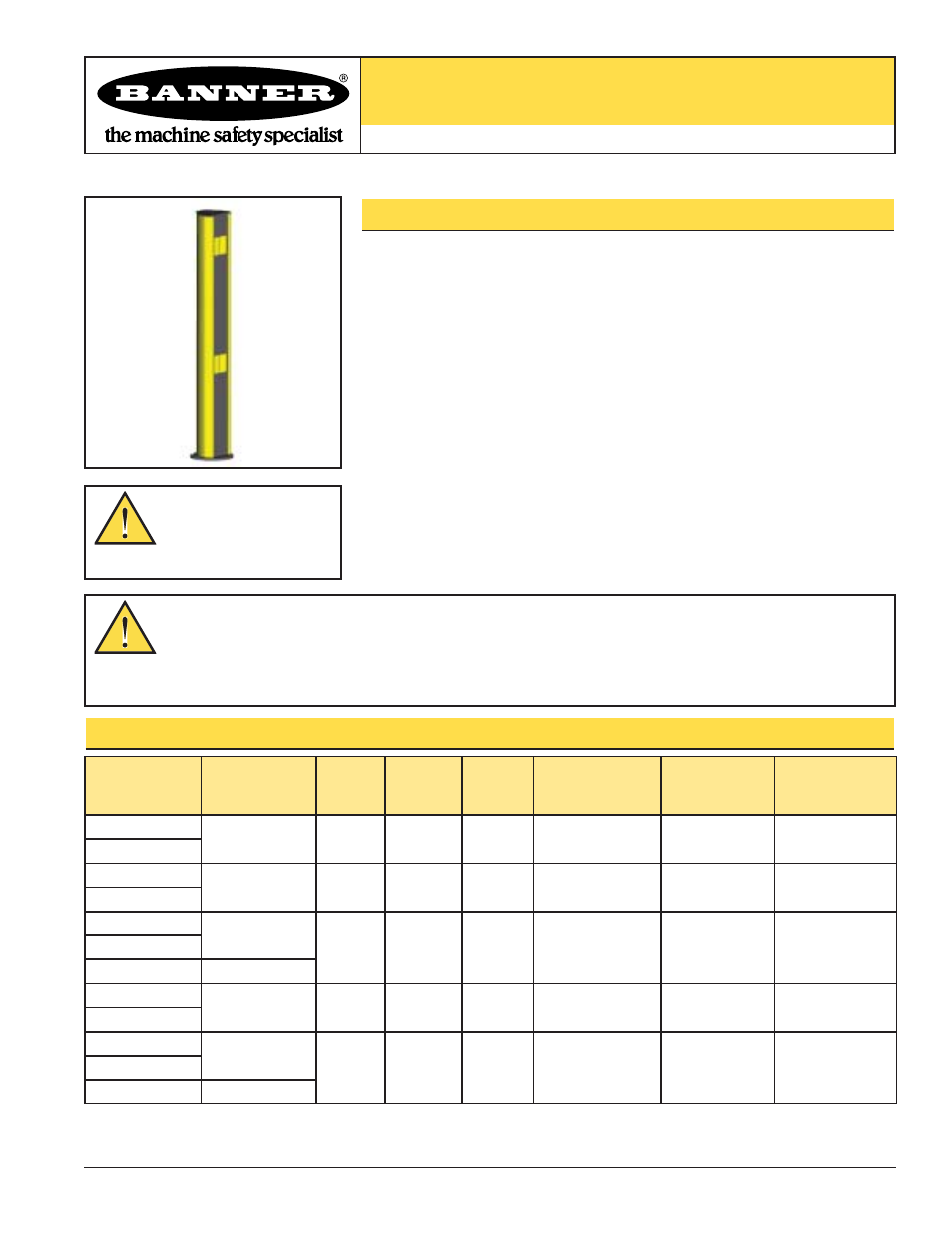

background image

EZA-S Series Enclosures

For mounted protection of EZ-SCREEN

Point and Grid Sensors and Mirrors

Features

• 12 models available: 5 with corner mirrors, 2 with return 45° mirrors for access

guarding applications; 5 to house EZ-SCREEN Point and Grid Sensors

Models meet ANSI/RIA 15.06 and ISO 13855 standards for beam spacing

Robust aluminum housing with a tough safety yellow finish

Independently adjustable mirrors to simplify alignment

Circular bubble level on top of enclosure with three leveling screws in base

Base allows enclosure to rotate up to 20°

Banner EZA-S Series Enclosures are designed specifically for use with Banner EZ-SCREEN
Point and Grid models. The enclosures are constructed of a powder coated extruded
aluminum housing with an anodized aluminum top plate and mounting base. The
enclosures have leveling and rotational positioning capabilities. Units with mirrors have
3 adjusting screws per mirror to optimize beam direction. The enclosures are available in
12 different models to accommodate ANSI/RIA 15.06 and ISO 13855 beam spacing
standards. The rear-surfaced glass mirrors are rated at 85% efficiency per mirror and
reduce maximum range by 8% per mirror.

Printed in USA

02/12

P/N 109308 rev. B

NOTE . . .

Reduced

Sensing Range

Sensing range is reduced to
85% efficiency per mirror.

WARNING . . .

Maintain Required Separation Distance

The light screen produced by the optical safety system sensors must be placed at a minimum safe distance from the
dangerous motion of the machine being guarded.
This necessary minimum distance is called the separation distance, and is
discussed in Section 3 of the appropriate manuals. Failure to calculate this distance correctly and to maintain minimum
separation distance can result in serious injury.

Models*

Enclosure

Height

L1**

No. of

Windows

Distance from Floor

to Bottom Window

L2**

Protected

Height

Application

Standard

EZ-SCREEN

Models

EZA-S300

1543 mm

(60.75")

4

300 mm

(11.8")

900 mm

(35.4")

ANSI/RIA R15.06

ISO 13855

SG(XL)P4-300

EZA-S400

1238 mm

(48.75")

3

300 mm

(11.8")

800 mm

(31.5")

ANSI/RIA R15.06

ISO 13855

SG(XL)P3-300

EZA-S300-M

EZA-S400-M

EZA-S533

1543 mm

(60.75")

3

305 mm

(12.0")

1066 mm

(42.0")

ANSI/RIA R15.06

SG(XL)P3-533

EZA-S533-M

EZA-S500

1035 mm

(40.75")

2

400 mm

(15.8")

500 mm

(19.7")

ISO 13855

SG(XL)P2-500

EZA-S500-M45

EZA-S500-M

EZA-S584

1238.2 mm

(48.75")

2

305 mm

(12.0")

584 mm

(23.0")

ANSI/RIA R15.06

SG(XL)P2-584

EZA-S584-M45

EZA-S584-M

Models

Distance

Between Beams

L3**

300 mm

(11.8")

400 mm

(15.8")

533 mm

(21.0")

500 mm

(19.7")

584 mm

(23.0")

*Model numbers with suffix “M” include vertical mirrors for perimeter-guarding applications.

Model numbers with suffix “M45” include two 45°-mounted mirrors for access-guarding applications.

**Refer to Figure 1.

SP(XL)P1

SP(XL)P1
