Safe Maximum Speed and Direction Monitoring
Chapter 9
If an SMS Speed fault is detected during the Stop Delay [Maximum Stop Time]
and the [Safe Maximum Speed Monitoring Stop Behavior] parameter equals Use
Safe Torque Off with Check for Standstill, the SMS Speed fault is reported and
motion power is removed. The Stop Delay [Maximum Stop Time] continues
with standstill checking enabled.

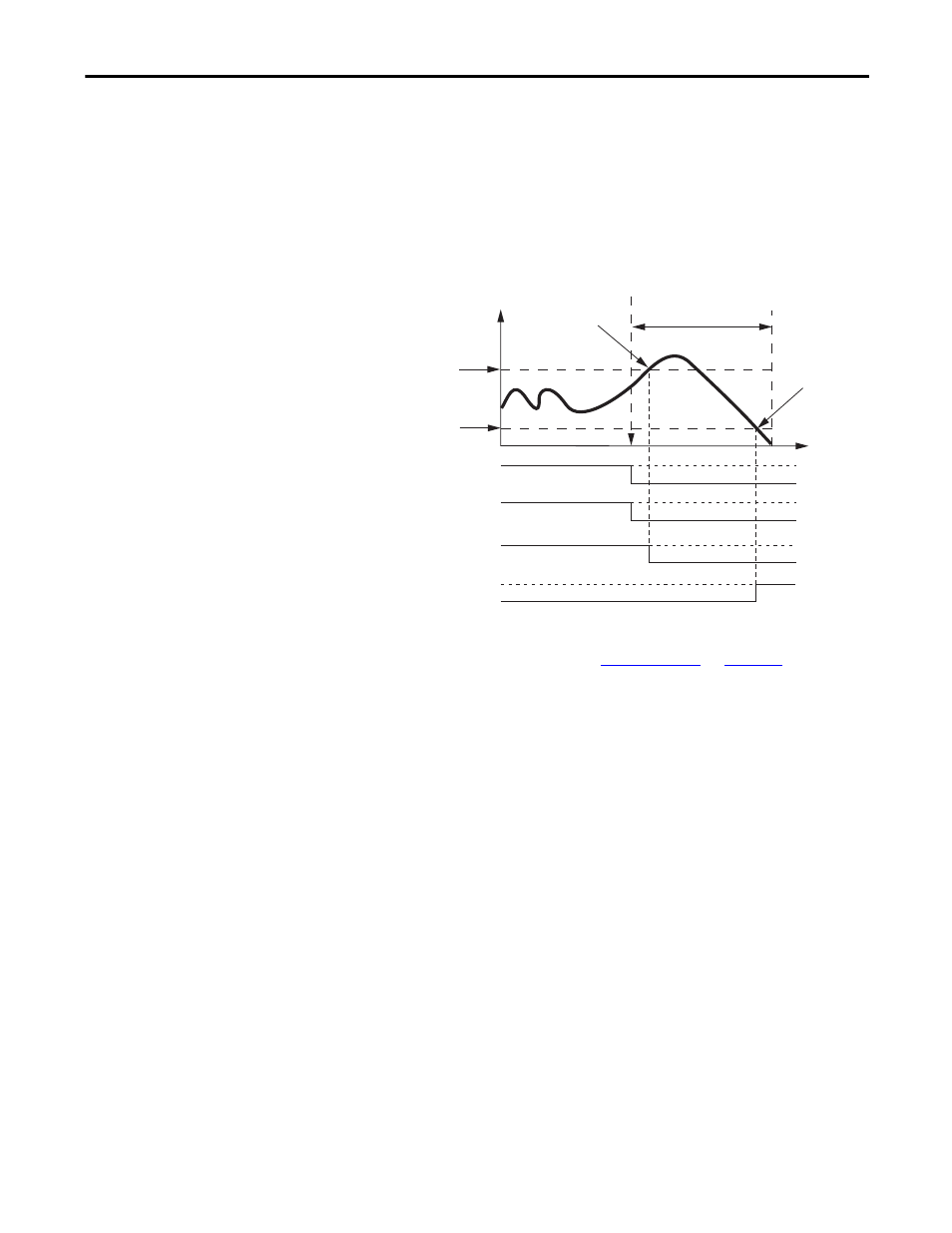

Figure 41 - SMS Speed Fault When [Safe Maximum Speed Monitoring Stop Behavior] Set to
‘Use Safe Torque Off with Check for Standstill’
(1) This signal is internal to the drive.
For more information about faults, see
on
.
Stop Request
Stop Delay
SMS Speed Fault
Standstill Speed
Speed
Time
Safe Max Speed
Limit
Motion Power
(1)
Unlock
Door
DC_Out
SS_In
SS_Out
