standard Ethernet cable. When connecting the SmartGuard controller directly to
your personal computer or a NIC card, use a cross-over (null modem) cable.

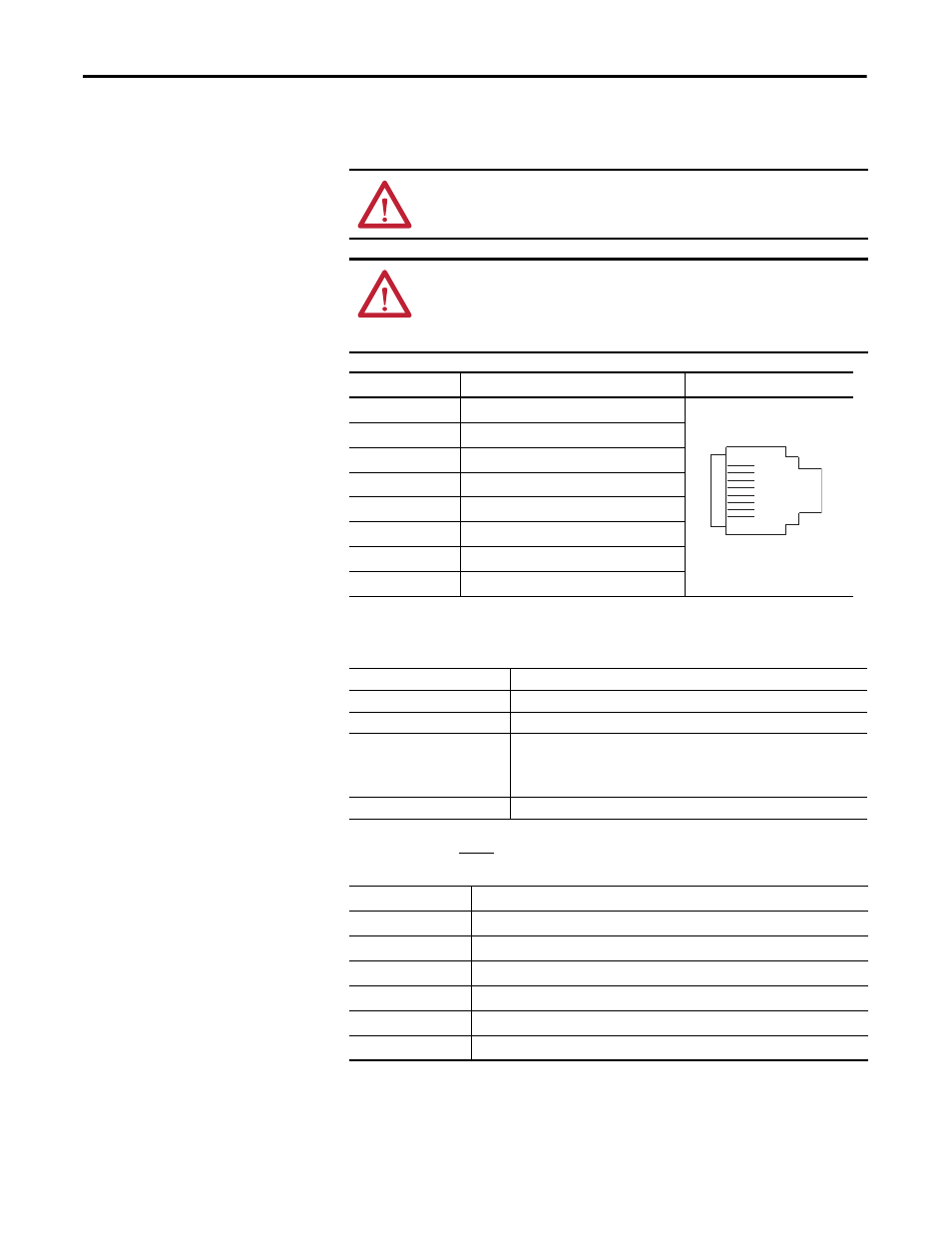

Wiring the SmartGuard 600
Controller
Use cables of 30 m (98 ft) or less.
ATTENTION: The cable length must be less then 100 m (328 ft) between hub
and nodes.
WARNING: If you connect or disconnect the Ethernet cable with power applied
to this controller or any other device on this network, an electrical arc can occur.
This could cause an explosion in hazardous location installations. Be sure that
power is removed or the area is nonhazardous before proceeding.
Pin No.
Pin Name
Pin placement
8
Not used
7
Not used
6
RD-
5
Not used
4
Not used
3
RD+
2
TD-
1
TD+
8
1
Attribute
Value
Wire type
Copper
Wiring category
(1)
(1) Use this Conductor Category information for planning conductor routing. Refer to Industrial Automation Wiring and Grounding
Guidelines, publi
2 - on power, signal, and communication ports
Wire size
For power supply and I/O, use 0.2…2.5 mm
2
(12…24 AWG) solid wire, or
0.34…1.5 mm
2
(16…22 AWG) stranded flexible wire. Before connecting,
prepare stranded wires by attaching ferrules with plastic insulation collars
(DIN 46228-4 standard compatible).
I/O Terminal Screw Torque
0.56…0.79 N•m (5…7 lb•in)
Terminal Designation
Description
V0
Power terminal for internal circuit (logic).
G0
Power terminal for internal circuit (logic).
V1
Power terminal for input circuits and test outputs.
G1
Power terminal for input circuits and test outputs.
V2
Power terminal for safety outputs.
G2
Power terminal for safety outputs.
