Monitor Status and Handle Faults
Chapter 12
2.

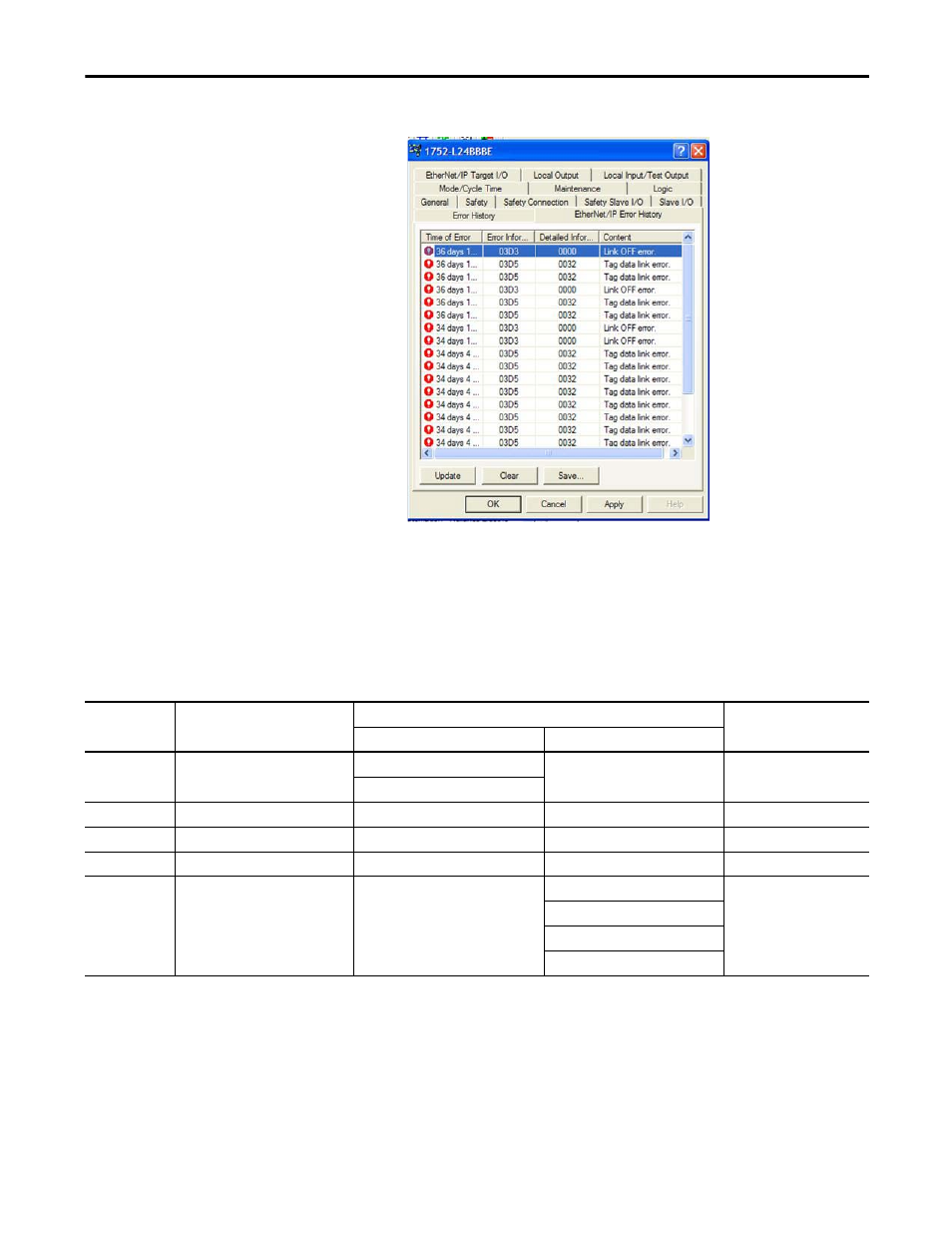

Click the EtherNet/IP Error History tab.
a. Click Save to save the error history data, which can also be saved in a
separate CSV file.
b. Click Clear to erase the error history saved in the controller.
c. Click Update to refresh the error history information.
Ethernet Error History Table
Error Code
Error
Detail Code
7-segment Display
1st Byte
(1)
2nd Byte
(1)
0602
CPU Bus Unit Memory
01: Read error
Variable
E9<->n4
02; Write error
020F
Communications Controller
00
01
F4<->n4
0211
Duplicate IP Address
02
Lower byte of IP address
F0<->n4
021A
Logic Error in Setting table
00
Variable
UF
03C4
Server Connection
04;BOOTP
01; Specific host does not exist
E3<0>n4
07: Transmission error
08: Reception error
0A: Obtaining IP address error
