Rockwell Automation Publication 1752-UM001E-EN-P - June 2014 29
Installing and Wiring the SmartGuard 600 Controller Chapter 2
For detailed information on EtherNet/IP communication, refer to the EtherNet/
IP Performance and Application Solution, publication ENET-AP001.

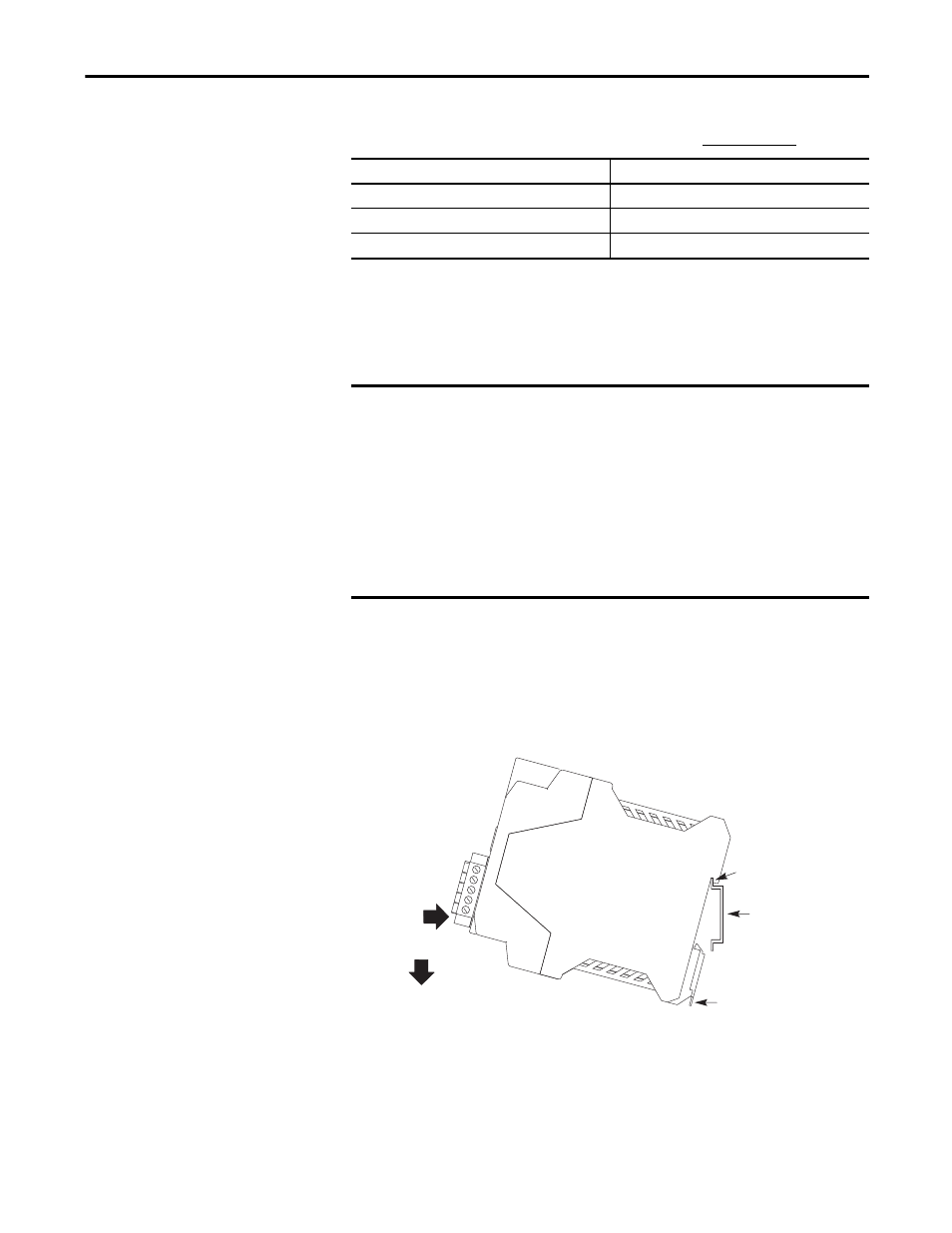

Mount the SmartGuard
Controller
The controller cannot be panel-mounted. Follow these steps to mount the
controller to an EN50022-35x7.5 or EN50022-35x15 DIN rail.
1. Hook the top slot over the DIN rail.
2. Snap the bottom of the controller into position while pressing the
controller down against the top of the rail.
3. Attach end plates to each end of the DIN rail.
To remove the controller from the DIN rail, use a flathead screwdriver to pull
down the latch and lift the controller off of the rail. The 1752-L24BBB
controller has one latch and the 1752-L24BBBE controller has two latches on the
bottom of the controller.
Attribute Value
Number of CIP packets 2
Allowable Unit communication bandwidth 3000 pps
(1)
(1) PPS is packets Per second. It indicates the number of send or receive packets that can be processed per second.
Explicit message communication 502 B
(2)
(2) The maximum message length for class 3 connection and UCMM connection.
IMPORTANT For effective cooling:
· mount the controller on a horizontal DIN rail. Do not mount the controller
vertically.
· provide a gap of at least 50 mm (2.0 in.) above and below the controller
and 5 mm (0.20 in.) on each side.
· select a location where air flows freely or use an additional fan.
· do not mount the controller over a heating device.
Latch
Top Slot
DIN Rail
