132 Rockwell Automation Publication 1752-UM001E-EN-P - June 2014
Chapter 8 Configure Your Controller for EtherNet/IP Communication
Configure Communication
between a Standard
PanelView Terminal and a
SmartGuard 600 Controller
over an EtherNet/IP Network Follow these steps to configure a standard PanelView terminal to be able to
communicate with a SmartGuard 600 controller over an EtherNet/IP network.

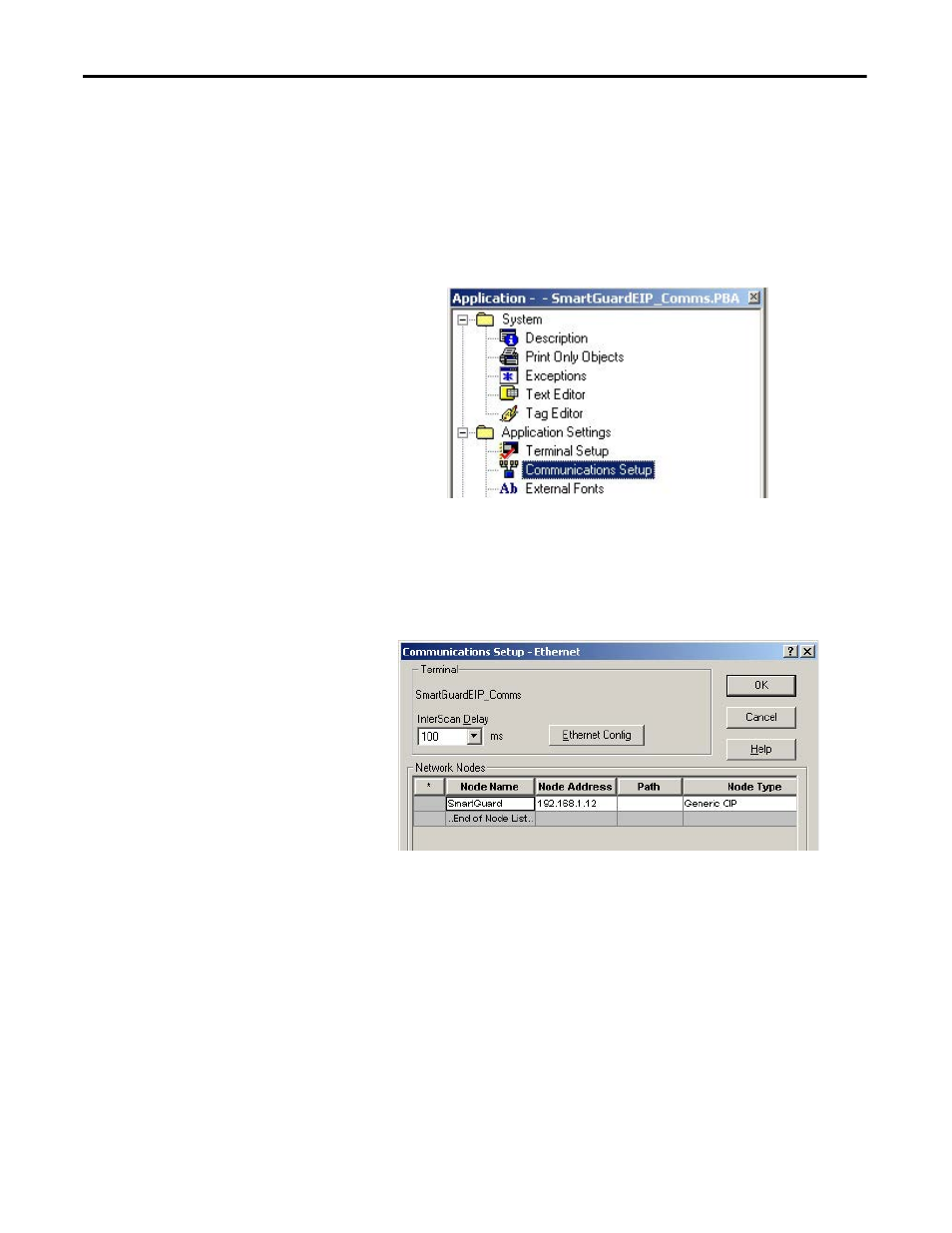

1. Open your PanelView application within PanelBuilder™ 32 software.
You need to define the communication path between the PanelView
terminal and the SmartGuard 600 controller.
2. Click Communications Setup.
The Communications Setup - Ethernet dialog box appears.
3. Click Insert.
4. Enter the node name and node address of the SmartGuard controller.
5. Enter the node type as Generic CIP.
6. Click OK.
Follow this procedure to define tags within the PanelView tag database that will
access the target I/O assemblies in the SmartGuard 600 controller.
