Rockwell Automation 1752-L24BBBE SmartGuard 600 Controllers User Manual User Manual
Page 116
116
Rockwell Automation Publication 1752-UM001E-EN-P - June 2014
Chapter 7
Configure Your Controller for DeviceNet Communication

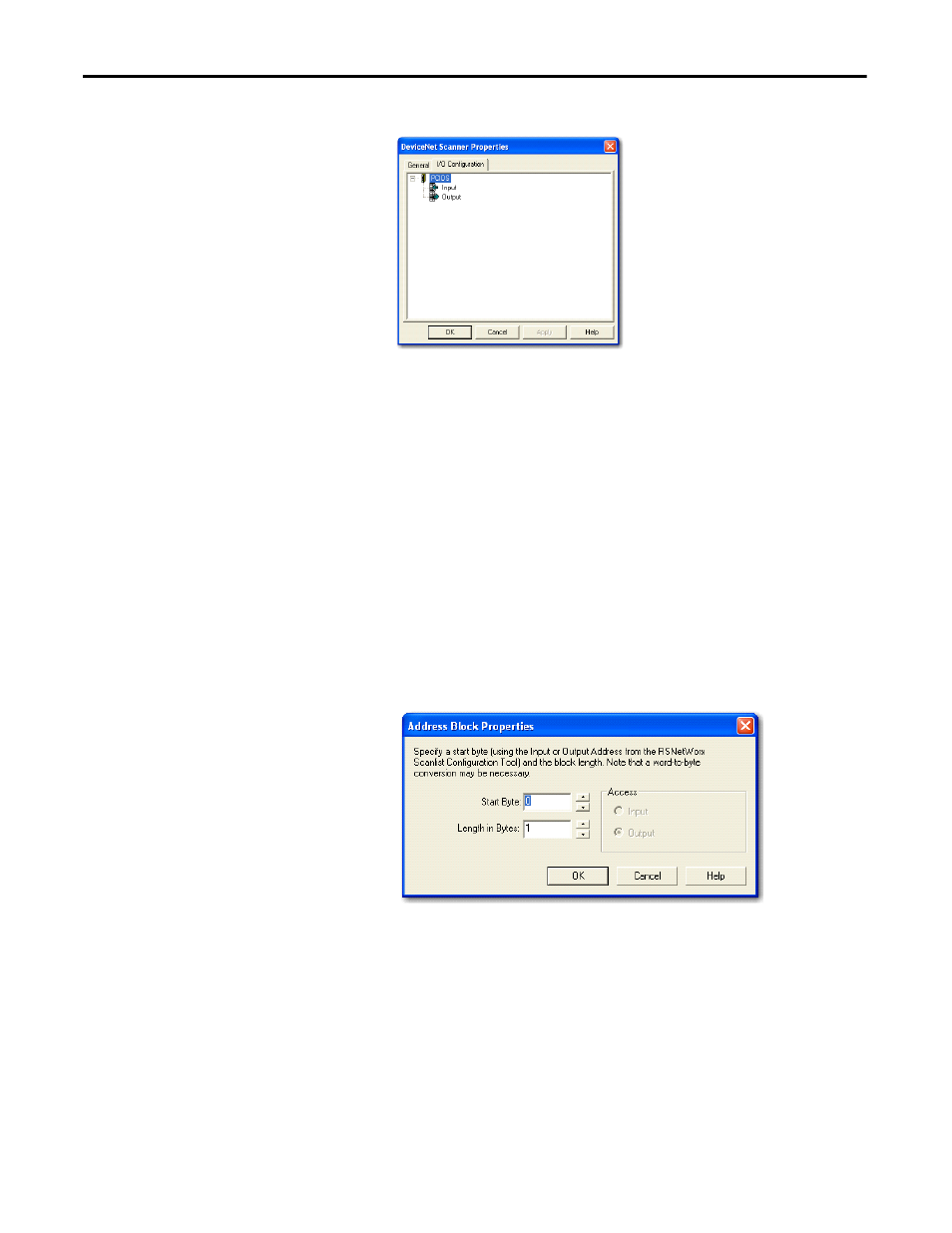

The following dialog box appears.
The configuration of the input block is covered in the ‘How to Read BOOLs’
section of this document. Refer to that section to configure the data that will be
read from the SmartGuard controller and displayed on the PanelView Plus
interface.
Configure the Data that is Written from the PanelView Plus Interface
to the SmartGuard Controller
Follow this procedure to configure the data that is written from the PanelView
Plus interface to the SmartGuard controller.
1.
Right-click Output and choose Add Address Book.
The following dialog box appears.
2.
Select one as the Length in Bytes.
This will match what the scanner is writing to the SmartGuard controller.
3.
Click OK.
