Page 146

146
Rockwell Automation Publication 1752-UM001E-EN-P - June 2014
Chapter 10
Create Your Application Program

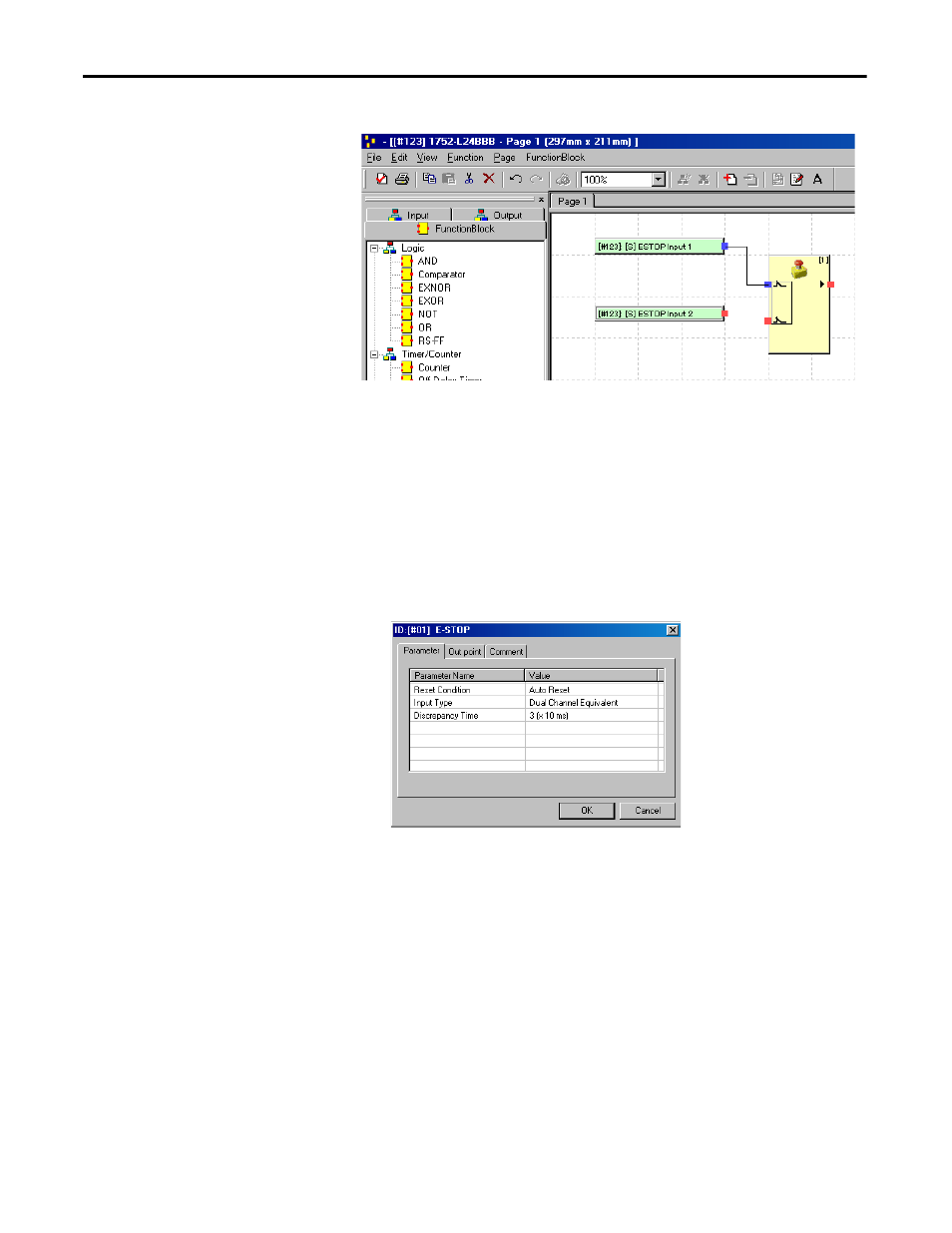

Figure 35 - Connect Tags to Function Blocks
Edit Function Block
Parameters
You can edit function blocks by changing parameter settings, changing the
number of inputs or outputs, adding optional I/O, and adding comments
pertaining to your application. The parameters that can be edited depend upon
the type of function block.
To open the Function Block Properties dialog box, right-click the function block
and choose Edit.
Figure 36 - Parameter Tab
In/Out Settings
You can edit the Number of Inputs, Number of Outputs, and, in some cases, the
Fault Present settings for many instructions.
