Appendix C
Logic Functions Command Reference

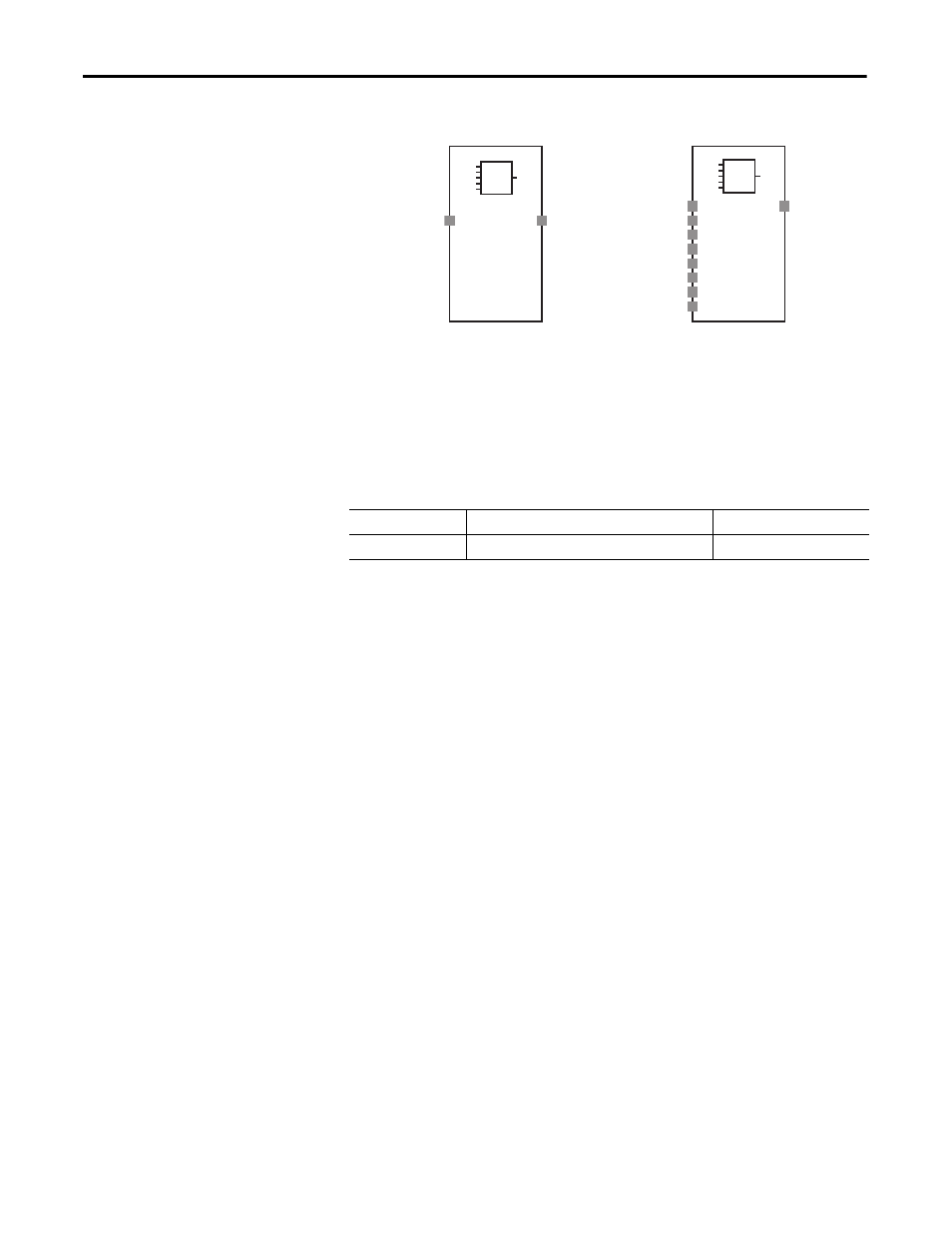

Comparator Instruction Diagram
Comparator Instruction Parameters
Set these parameters for the Comparator instruction.
You can set the comparison pattern and increase the number of inputs from one
to eight on the In/Out Setting tab of the Function Block Properties dialog box in
RSNetWorx for DeviceNet software. The default is one input. You set the
comparison pattern by using a combination of 0 (input off ), 1 (input on), and X
(input on or off ).
Table 6 - Comparator Function Block Parameters
Parameter
Valid Range
Default Setting
Comparison value
00000000…11111111 (bit 7…0)
00000001
1
0
1
0
1
1
0
1
0
1
Input 1
Output 1
Output 1
Input 1
Input 2
Input 3
Input 4
Input 5
Input 6
Input 7
Input 8
Default Connections
Maximum I/O for Comparator Instruction
