Rockwell Automation 1752-L24BBBE SmartGuard 600 Controllers User Manual User Manual
Page 123
Rockwell Automation Publication 1752-UM001E-EN-P - June 2014
123
Configure Your Controller for DeviceNet Communication
Chapter 7

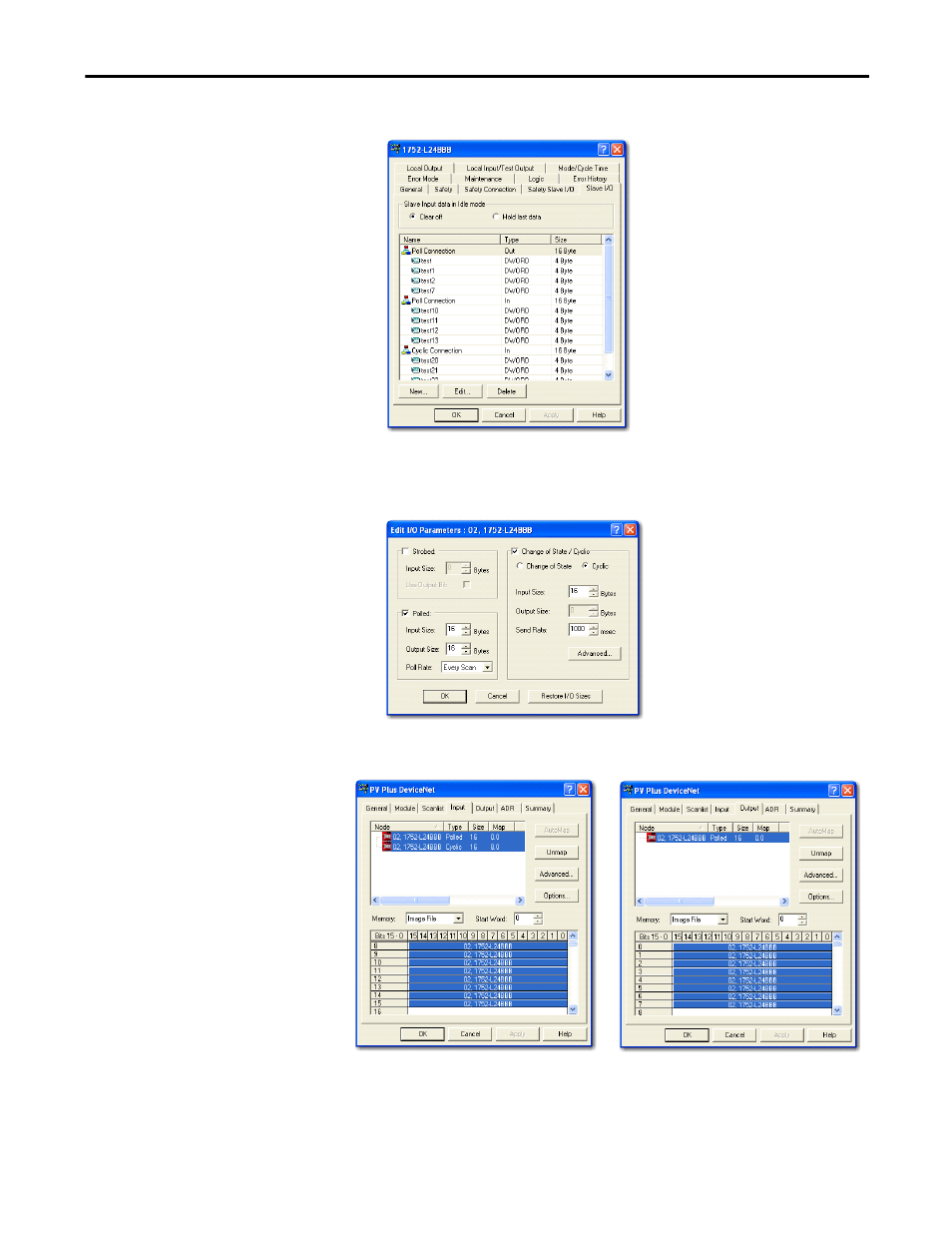

Figure 26 - SmartGuard Slave I/O Configuration
The DeviceNet scanner connection properties appear as shown.
Figure 27 - DeviceNet Scanner Configuration
The FactoryTalk® to RSView® Enterprise software I/O configuration appears as
shown.
