Rockwell Automation Publication 1752-UM001E-EN-P - June 2014 219
Function Blocks Command Reference Appendix D

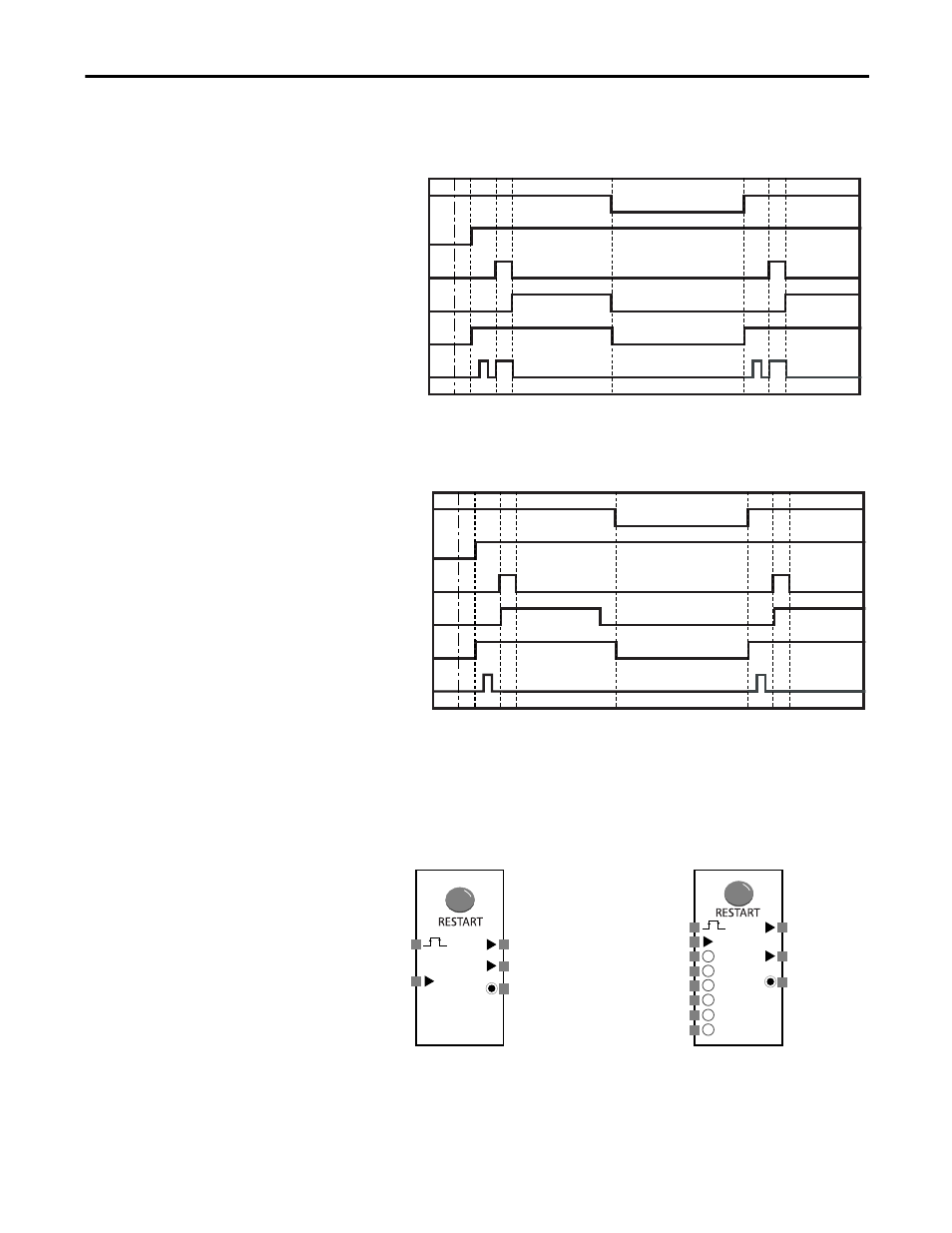

Reset Function Block Timing Charts
Figure 45 - Low-High-Low Reset Signal
Figure 46 - Rising Edge Reset Signal
Restart Function Block Figure 47 - Restart Function Block Diagram
The number of inputs can be increased from two to eight on the I/O Settings tab
of the Function Block Properties dialog box in RSNetWorx for DeviceNet
software. The default number of inputs is two.
Monitored Input
Optional Input
(N)
Reset
Output Enable
Static Release
Reset Required
Indication
Idle to Run
Monitored Input
Optional Input
(N)
Reset
Output Enable
Static Release
Reset Required
Indication
Idle to Run
Restart
Restart
Optional Input 1
Monitored Input
Output Enable
Monitored
Input
Output Enable
Static Release
Restart Required
Indication
Optional Input 2
Optional Input 3
Optional Input 4
Optional Input 5
Optional Input 6
Static Release
Restart Required
Indication
Default Connections Maximum Inputs for Restart Function
