Configure Your Controller for DeviceNet Communication Chapter 7
This configuration allows 32 bytes of input data (16 via polled and 16 via COS or
Cyclic) and 16 bytes of output data via the polled connection. This configuration
is described in greater detail in this chapter.
Read BOOLs from the SmartGuard Controller and Display Them on the
PanelView Plus Interface
Follow this procedure to read BOOLs from the SmartGuard controller and display
them on the PanelView Plus interface.
1. Open your RSNetWorx software.
2. Open the SmartGuard properties.
3. Click the Slave I/O tab.

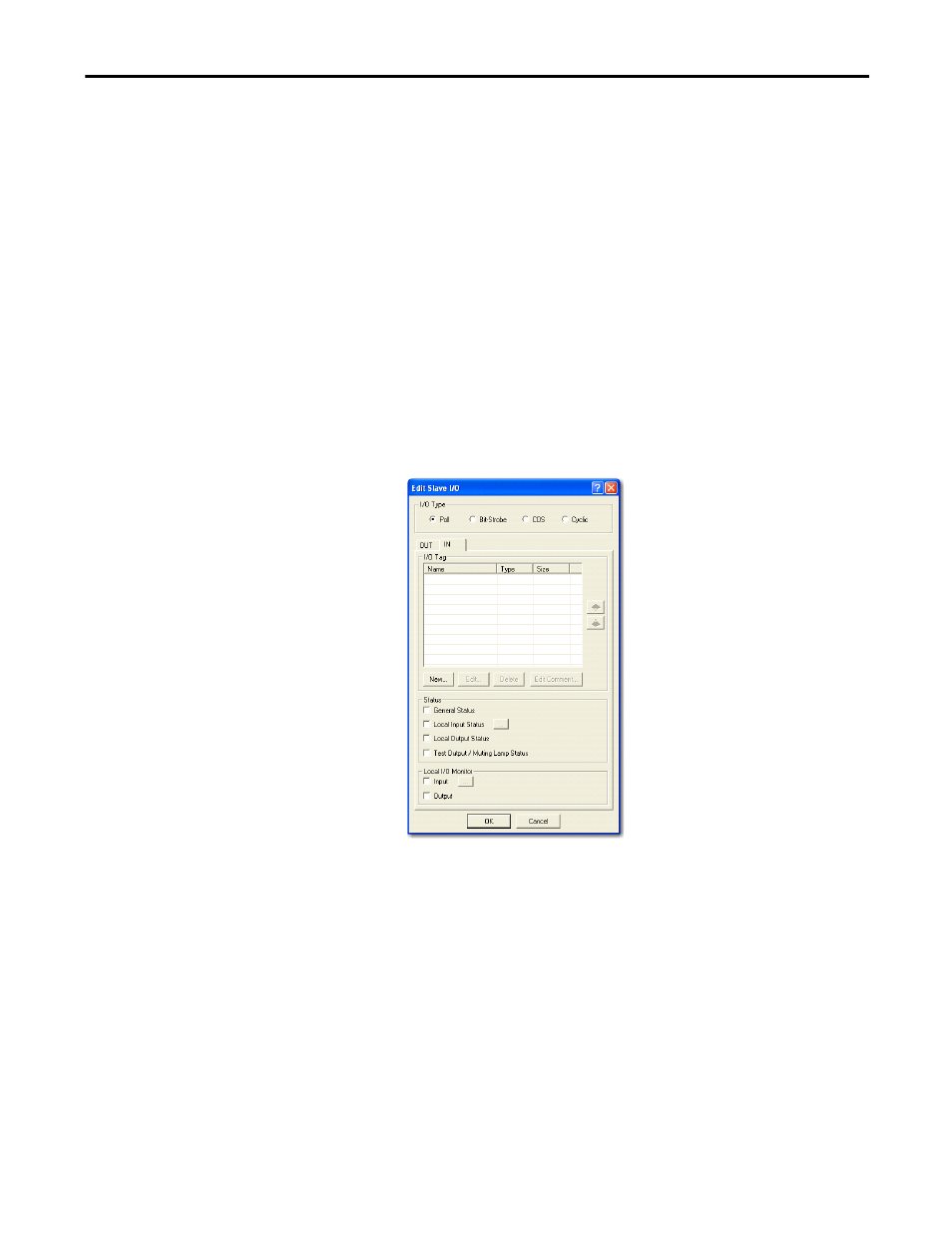

The following dialog box appears.
4. Click the IN tab.
5. Enter the tag names that will be read by the PanelView Plus interface.
