Appendix D Function Blocks Command Reference
Enable Switch Function Block Error Handling
Use this table to diagnose and reset a discrepancy error in the Enable Switch
function block.

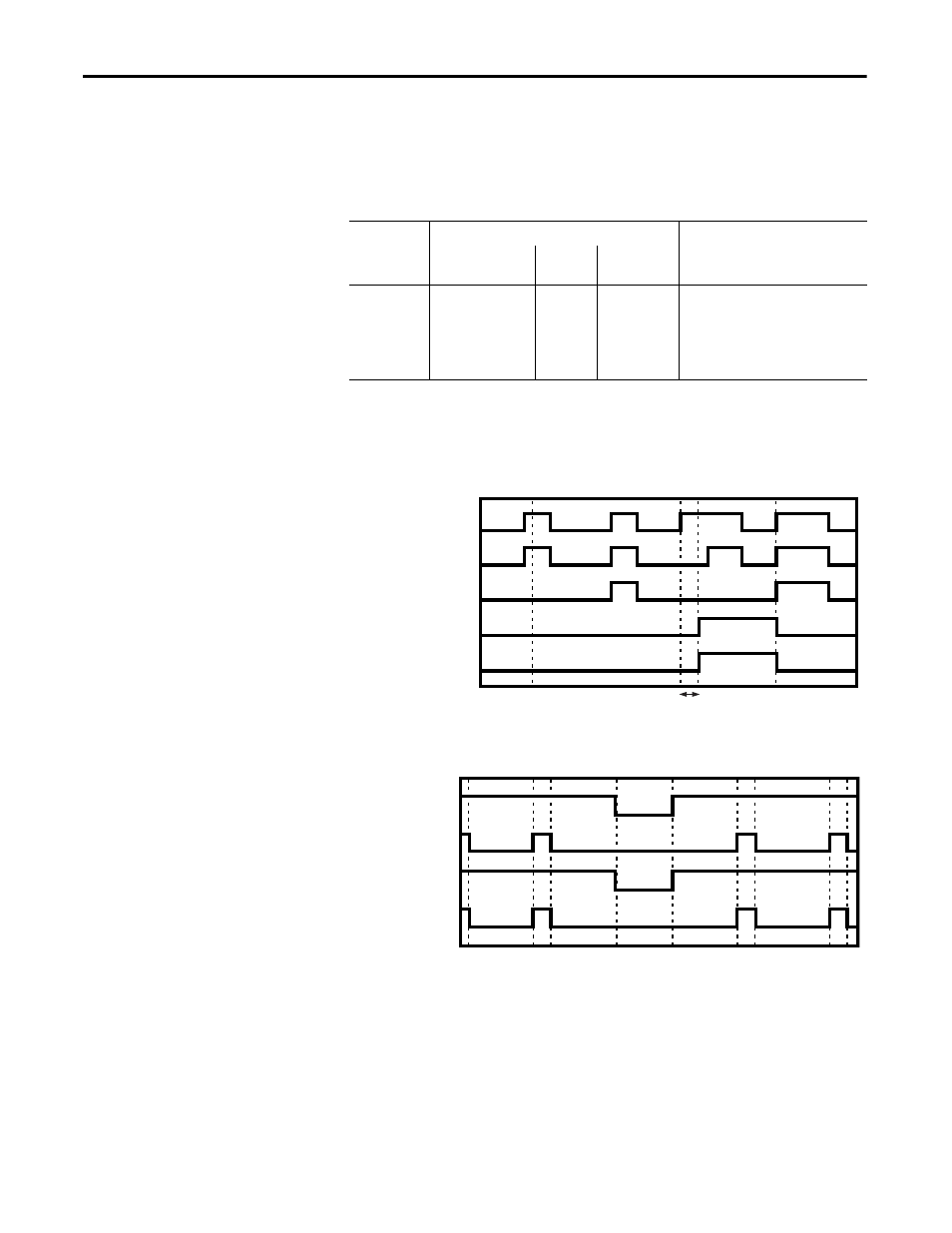

Enable Switch Function Block Timing Charts
Figure 79 - Normal Operation and Discrepancy Error
Figure 80 - Grip Signal and Release Signal
Table 31 - Error Detection and Reset for Enable Switch Function Block
Error
Condition
Status When an Error Occurs To Reset the Error Condition
Output Enable Fault
Present
Error Output
Discrepancy
error at input
pair OFF
(safety state) ON Discrepancy
Error: ON Remove the cause of the error, then
either:
1. Make both input pairs 1 and 2
inactive and active again.
2. Change the controller’s operating
mode to Idle and back to Run.
Input 1 (NO)
Output Enable
Discrepancy Time
Fault Present
Input 2 (NO)
Discrepancy Error
Grip Input
Grip Enable
Release Input
Release Enable
