Interface Configuration
PRI ISDN
The most important aspect of PRI interface configuring is the configuration of the PRI
line between the NetStar and PBX systems. The first information we need is the PRI
interface configuratin on the PBX. In case you are not sure about the PBX PRI port
configuration, contact a person responsible for the PBX maintenance without delay. In
our case, the PBX was connected to the PSTN and so the PRI port is configured as TE.

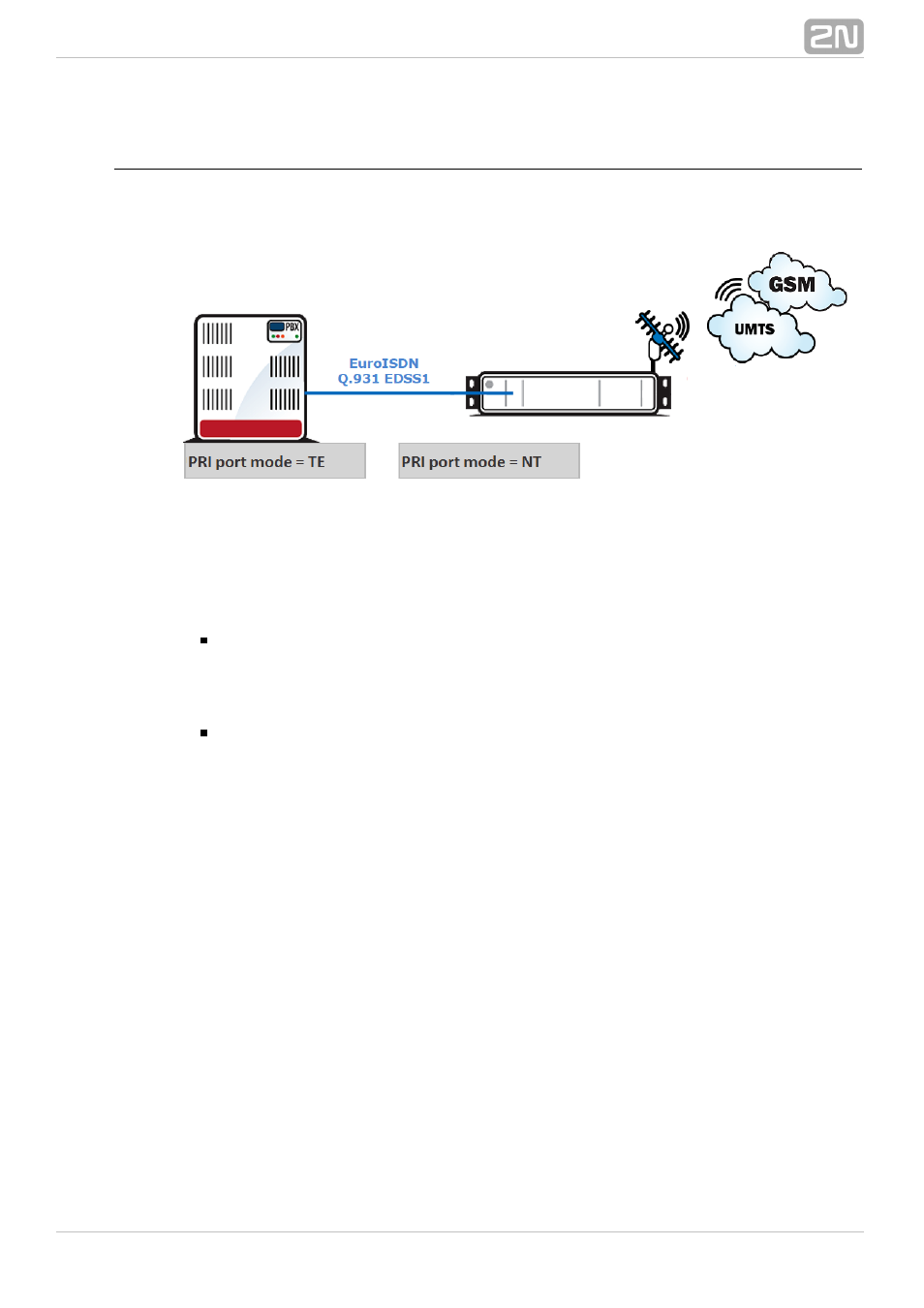

For correct interconnection, NetStar has to be configured as NT. To do so you have to:
Set PRI card jumpers – to do so switch NetStar into the service mode. When
the light goes off on the PRI card, remove the card from the rack and check the
jumper configuration. For a correct jumper placing use the sticker on the PRI
port.
Set correct communication protocol in the NetStar configuration tool. To do
so go to the
menu in and choose the port to be configured. Boards Hardware
Set the and tags for this port. When you are in the Stack Virtual port Stack
menu, set the interface mode to . NT
