186

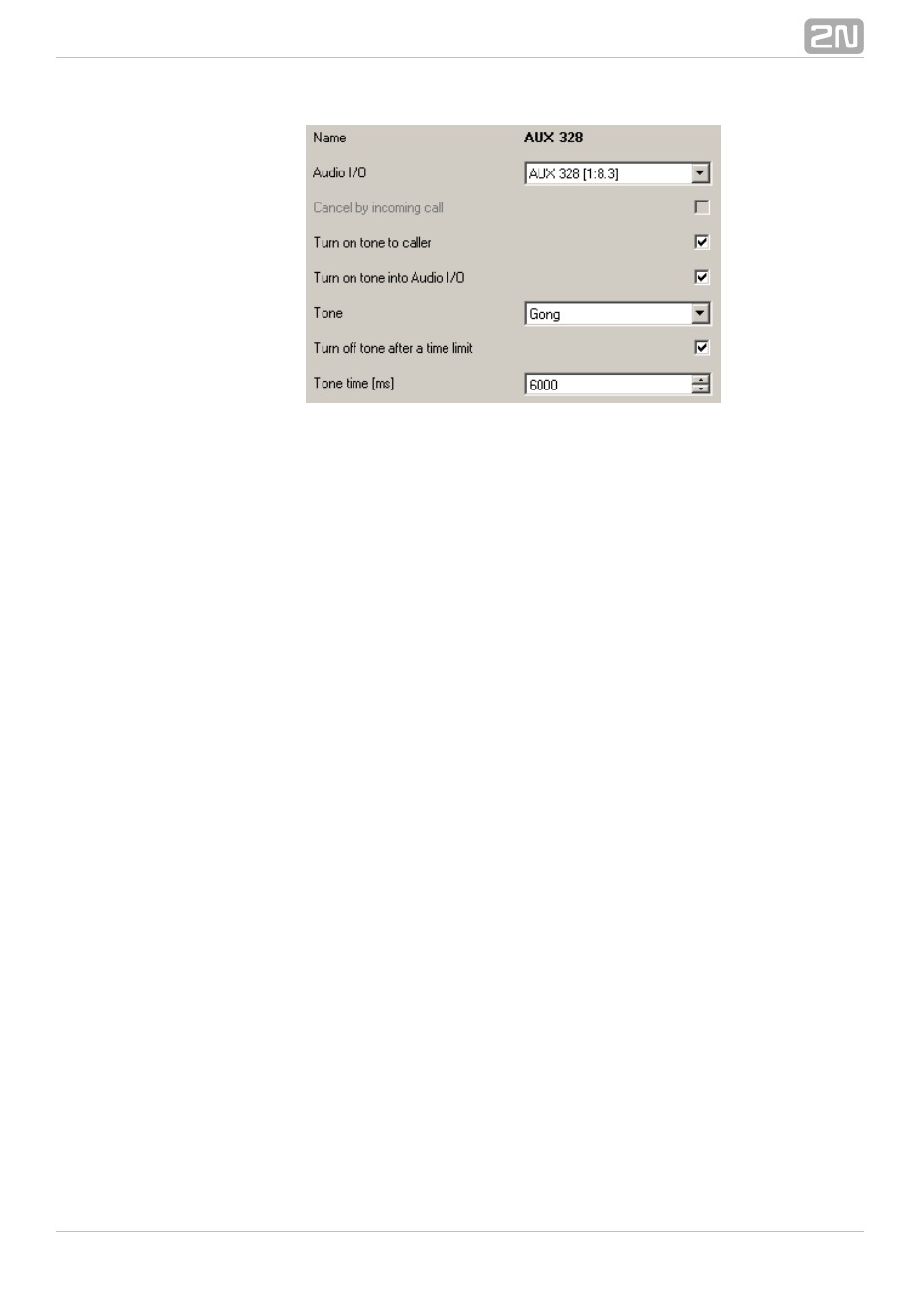

Figure: View of Audio I/O Configuration Menu
Example 1 – Broadcast
To use the audio port for broadcasting set the selected port onto in the Boards Output
menu and then assign it to the selected Audio I/O routing object. The broadcast
function is activated by an incoming call to this routing object. To play an
announcement (e.g. We are beginning ... 5, 4, 3, 2, 1, on air...), select the message in
the
parameter. When a call comes to the routing object, the selected message is Tone
played in the selected direction (calling or both) first and then the calling user is
connected to the assigned source for broadcasting.
Example 2 – External Music on Hold source
To use an Audio/IO/Relay board source as an external Music on Hold (or other progress
tone) source, configure it as
. You do not even need the Audio I/O routing object Input
for this purpose. Add a new input to the tag in left–hand upper part of Audio inputs
the menu and then assign Localisation and the Global data – Progress tones
Audio/IO/Relay board port to it in the right–hand upper part of the menu.
Subsequently, use the
tag to select this Audio input as a Music on Hold Progress list
input. Now assign the progress tone to a selected user group in the Properties –
tag in the parameter. The selected group of users will thus get music Basic Hold tone
played to the port from an mp3 player or another source instead of the Music on Hold.
