Hardware profiles 2.1
17
2 Hardware
2.1 Hardware profiles
Setting up of hardware profiles you can find in the menu HW – HW profiles . With this setting you
can use your system more efficiently in some specific cases. This menu contains five different
hardware profiles. Its benefites and disadvantages are evident from following table.

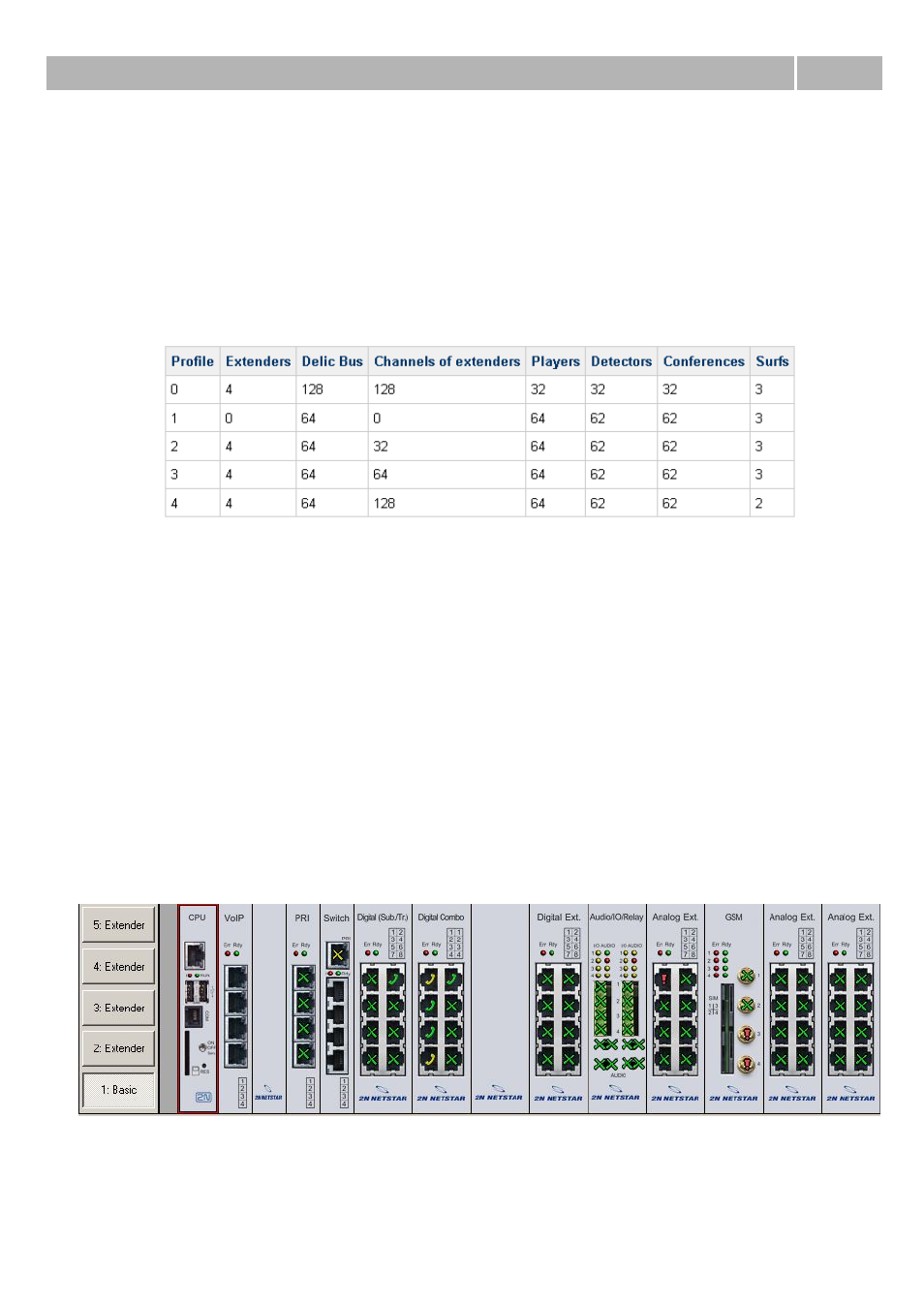

Table 1 Shows benefits and disadvantages of each of five hardware profiles.
Enabled – With this option you can disable or enable using of this rack.
HW profile – After profile choosing you have to save configuration to the PbX and it will be set to
service regime and back to bring changes in effect. It is made because different hardware profiles use
different frequencies on bus in basic case and in extenders.
The column Delic Bus shows maximal count of digital channels, which can be allocate within the
basic case. From this value you have to subtract four channels which are allocated for extenders
connection.
2.2 Boards
Arrangement of HW
After clicking on the menu HW – Rack the rack fitting is displayed.
Figure 1 View of instaled boards of the PbX in the main case.
With buttons on the left side of the PbX you can change view from main case to selected extender.
