Additional status text items −
•
If the EZ−Boom 2010 system is connected and the Rate switch is in either the Rate 1 or Rate 2
position, the lightbar shows two additional status text items:
♦
The intended target application rate (T:) is located at the bottom left of the main guidance
screen.
◊
The actual current application rate (A:) is located at the bottom right of the main
guidance screen.
◊
If the Rate switch is in the M (manual) position and the vehicle is moving, the status text items
are:
♦
The current flow rate (F:) is located at the bottom left of the main guidance screen.
◊
The actual curent application rate (A:) is located at the bottom right of the main guidance
screen.
◊
If the Rate switch is in the M position and the vehicle is not moving, the status text displays N/A.
♦
Rate switch position indicator − The lightbar shows the current position of the Rate switch: Rate 1, Rate
2, or Manual.
•
Boom section indicators − Indicators appear at the bottom of the main guidance screen. They change
color to show the current state of each boom section:
•
Green − The boom section is enabled and spraying.
♦
Orange − The boom section is enabled but not currently spraying.
♦
Red − The section is off (the switch is off).
♦
If a fence nozzle is enabled, an indicator appears to the left or right of the boom section indicators. Fence
nozzle status is represented with the same colors as the boom sections.
Automatic/manual switching indicator − This indicator appears on the bottom right of the main guidance
screen and shows which switching mode the controller is in.
•
When the controller is in manual switching mode, the indicator is gray.
♦
When the controller is in automatic switching mode, the indicator is in color.
♦

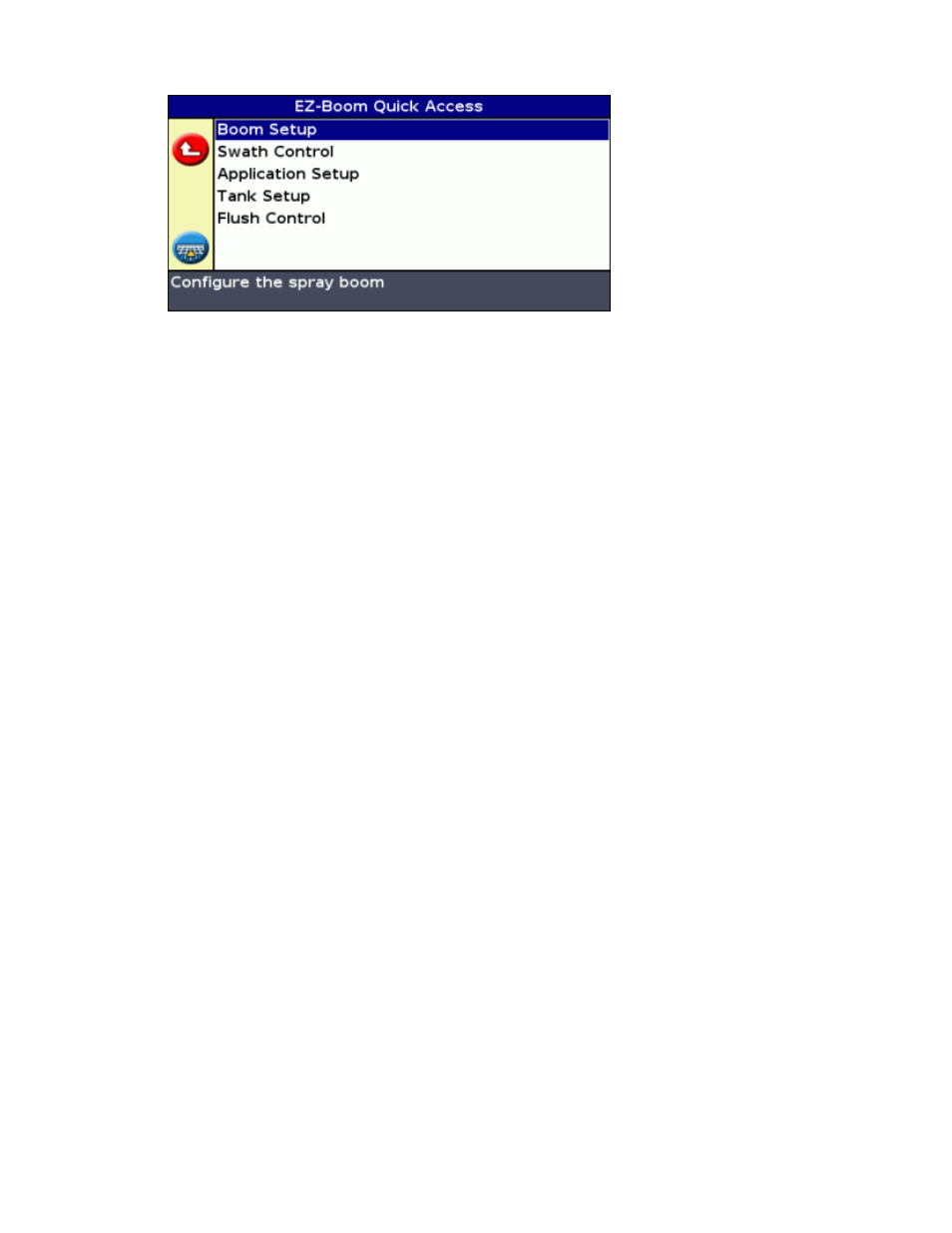

To configure the EZ−Boom 2010 system for use with the lightbar, set the User Mode to Advanced and then select
Configuration / Application Control.
For more information, refer to the EZ−Boom 2010 System for the EZ−Guide 500 Lightbar Quick Reference Card.
Refilling the Tank
There are two ways to refill the tank:
