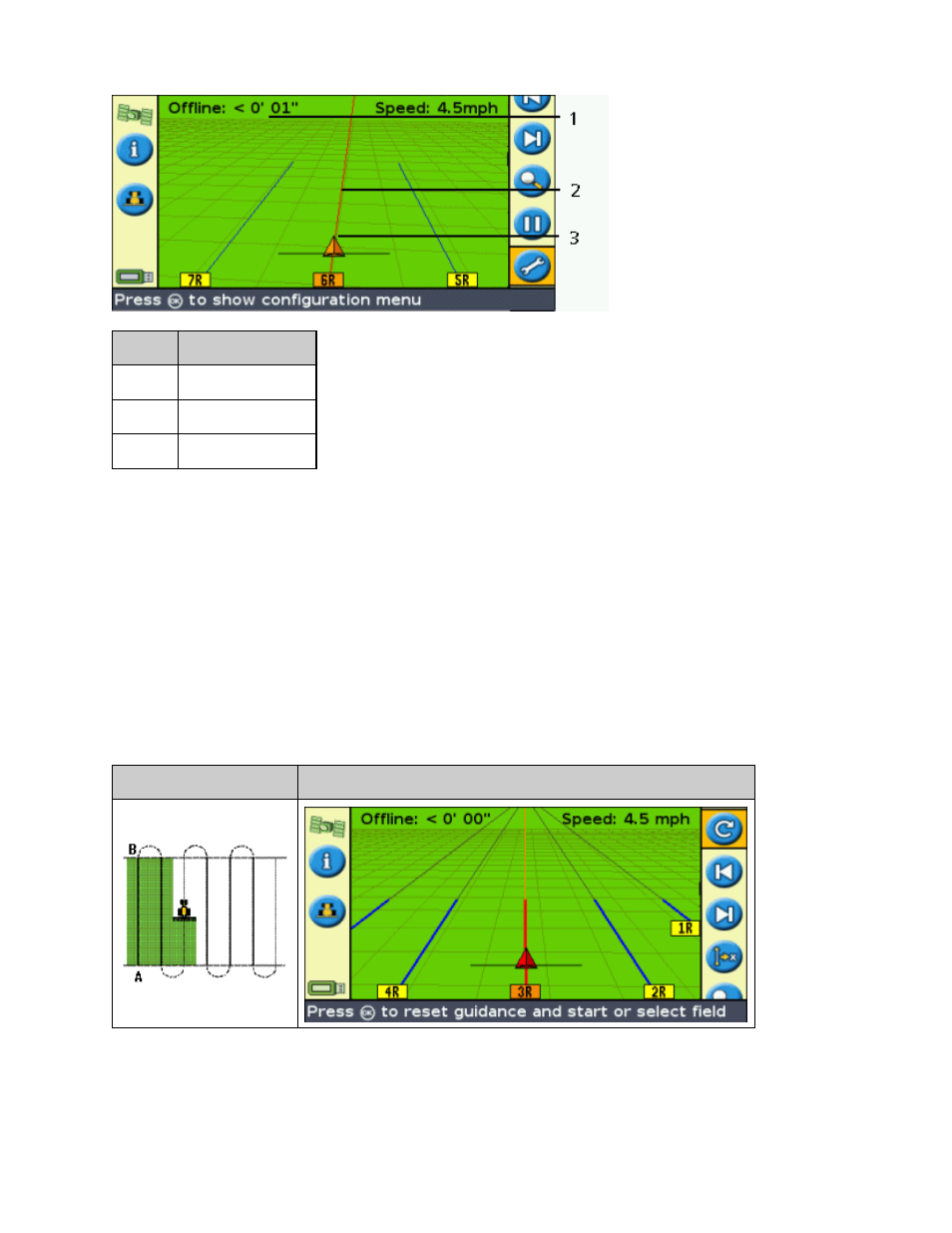

ITEM DESCRIPTION
1 Offline distance
2 Guidance line
3 Vehicle position
Guidance Patterns
The EZ−Guide 500 lightbar has seven guidance patterns so you can create guidance to suit your field layout.
Straight AB
A Straight AB is the most simple form of line. Use a straight AB Line when you do not need to define headlands
and you want to drive the field in parallel straight lines.
To create a straight AB Line, define a start point (A) and an end point (B). The Straight AB Line then appears as a
straight line between the two points.
PATTERN EXAMPLE
Note: When the vehicle is on a guidance line, the line extends 1 km (0.6 miles) before Point A and 1 km beyond
Point B. This makes it easier to see where the next swath is, and to get online after the turn.
