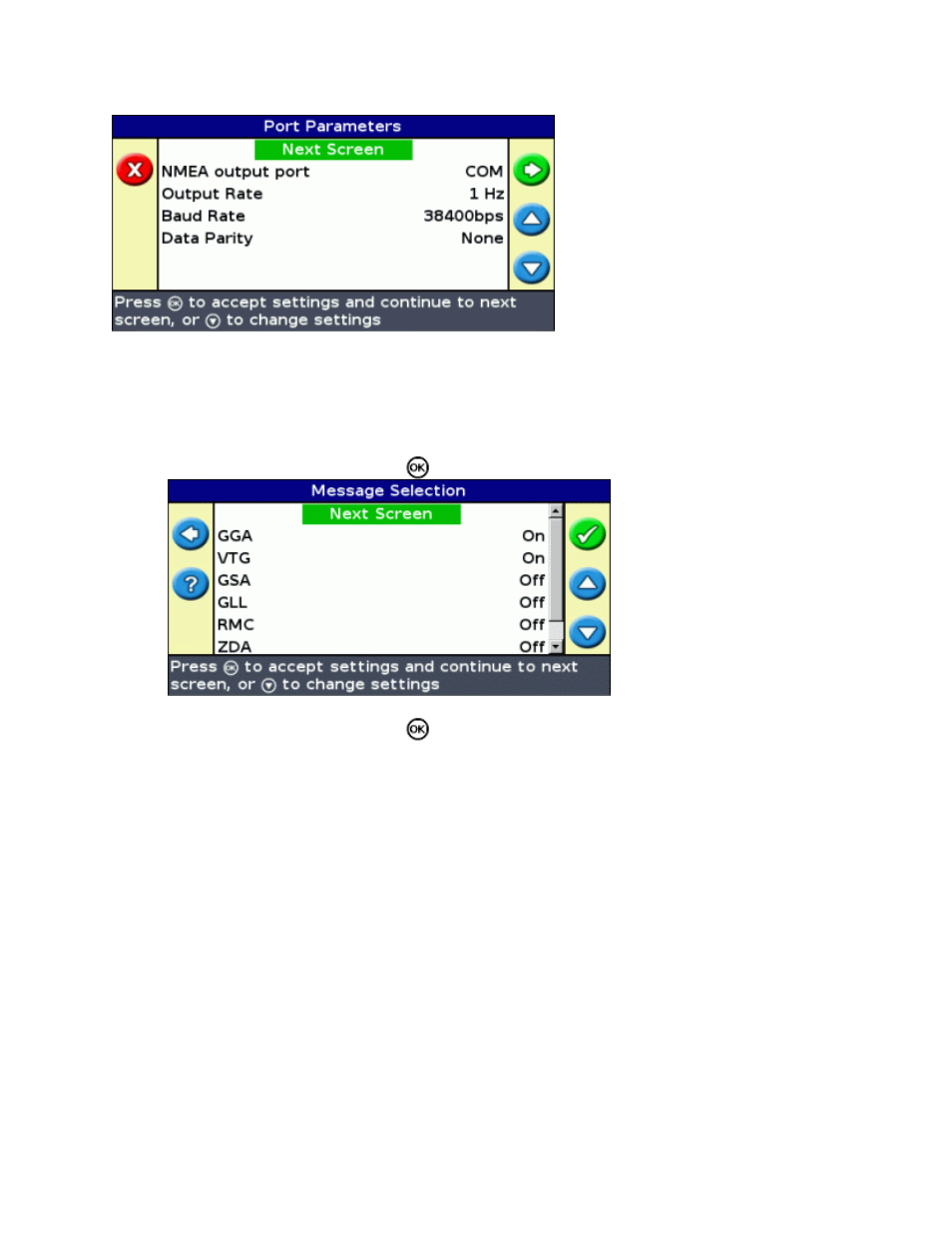

To configure NMEA output, select Configuration / System / GPS / NMEA Output.
Set the NMEA output port option to the lightbar port that the NMEA device is connected to. 1.
Set the lightbar port parameters. 2.
Tip − To be able to communicate, the parameters must match those of the device.
Select Next Screen and then press . The Message Selection screen appears. 3.
Set the various message formats to On or Off, depending on whether they are required. 4.
Select Next Screen and then press . 5.
If you turned GGA on, then select the number of decimal places in the GGA message. 6.
Note: Some external devices cannot read the GGA message if there are too many decimal places in the
string.
Outputting NMEA messages with RTK corrections
If you are using RTK corrections and outputting NMEA, you must connect the NMEA device to the AUX port.
Use the port expansion cable (P/N 62609) and the accessory cable (P/N 63076):
