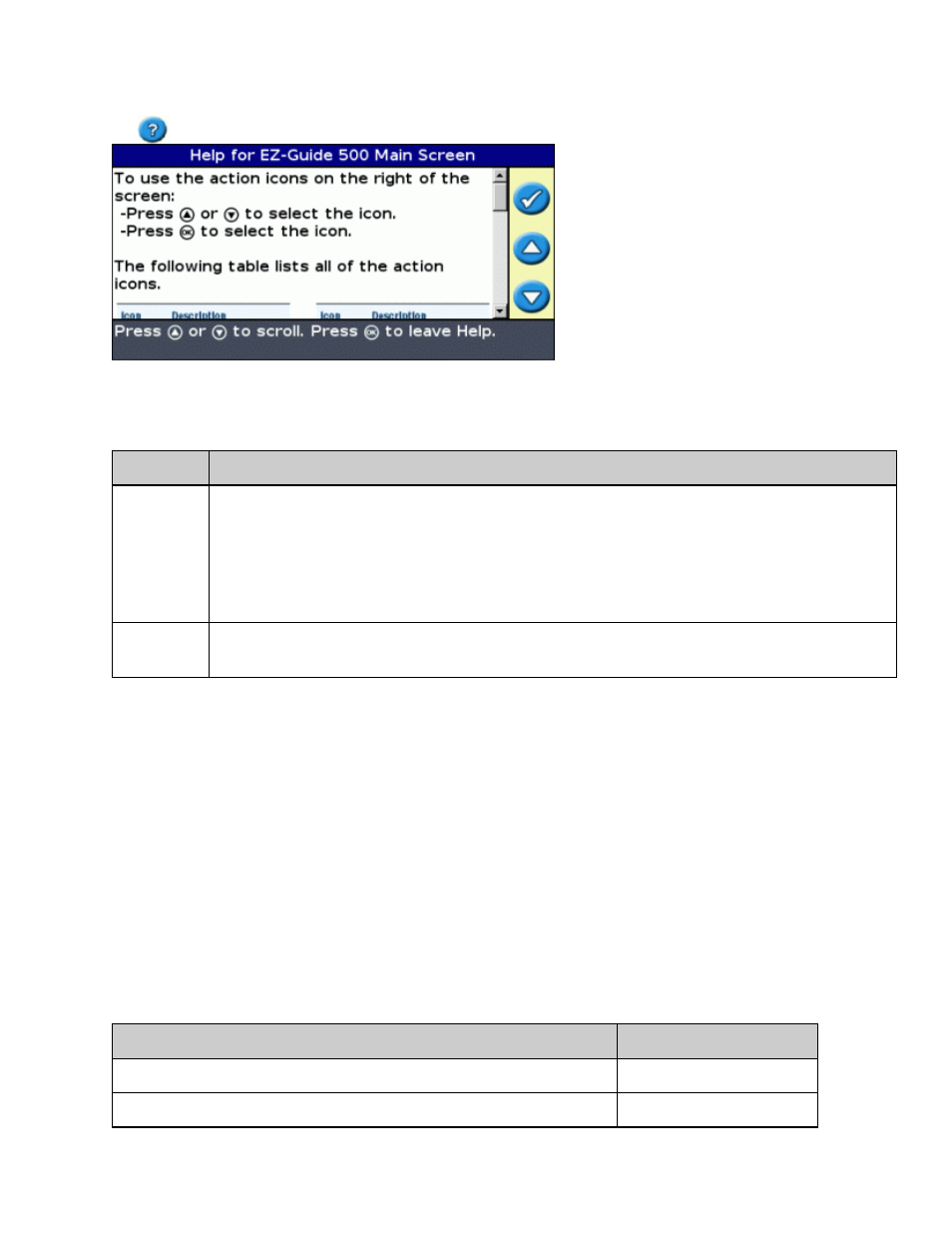

The EZ−Guide 500 lightbar has built−in help that explains how to use the current screen. To access the help, press
the
function button:
Optional Accessories
ITEM DESCRIPTION
Antenna
There are two antenna options for the EZ−Guide 500 lightbar:
− Ag15 antenna for autonomous positions and free WAAS and EGNOS DGPS corrections
− Z+ high−accuracy antenna for OmniSTAR XP/HP or RTK corrections
Caution: Do not use the patch antenna from the EZ−Guide 250 lightbar with the EZ−Guide 500
lightbar. The patch antenna uses a different voltage to other EZ−Guide antennas and the
EZ−Guide 500 lightbar will damage it.
Remote
keypad With the optional remote keypad installed, you can control the lightbar without having to reach to
it. The six buttons on the keypad mirror the six buttons on the front of the lightbar.
Upgrades
The EZ−Guide 500 lightbar guidance system can be connected to:
the EZ−Steer® assisted steering system
•
the AgGPS® Autopilot(TM) automated steering system
•
the EZ−Boom(TM) 2010 automated application control system (when the lightbar has firmware version
2.00 or higher)
•
a serial variable rate controller
•
Fuse Information
The EZ−Guide 500 lightbar has two fuses:
FUSE LOCATION DESCRIPTION
In cigaretter lighter connector of power connector cable (P/N 62818) 30 A glass cartridge fuse.
In fuse holder on power cable (P/N 62817) 10 A spade fuse.
