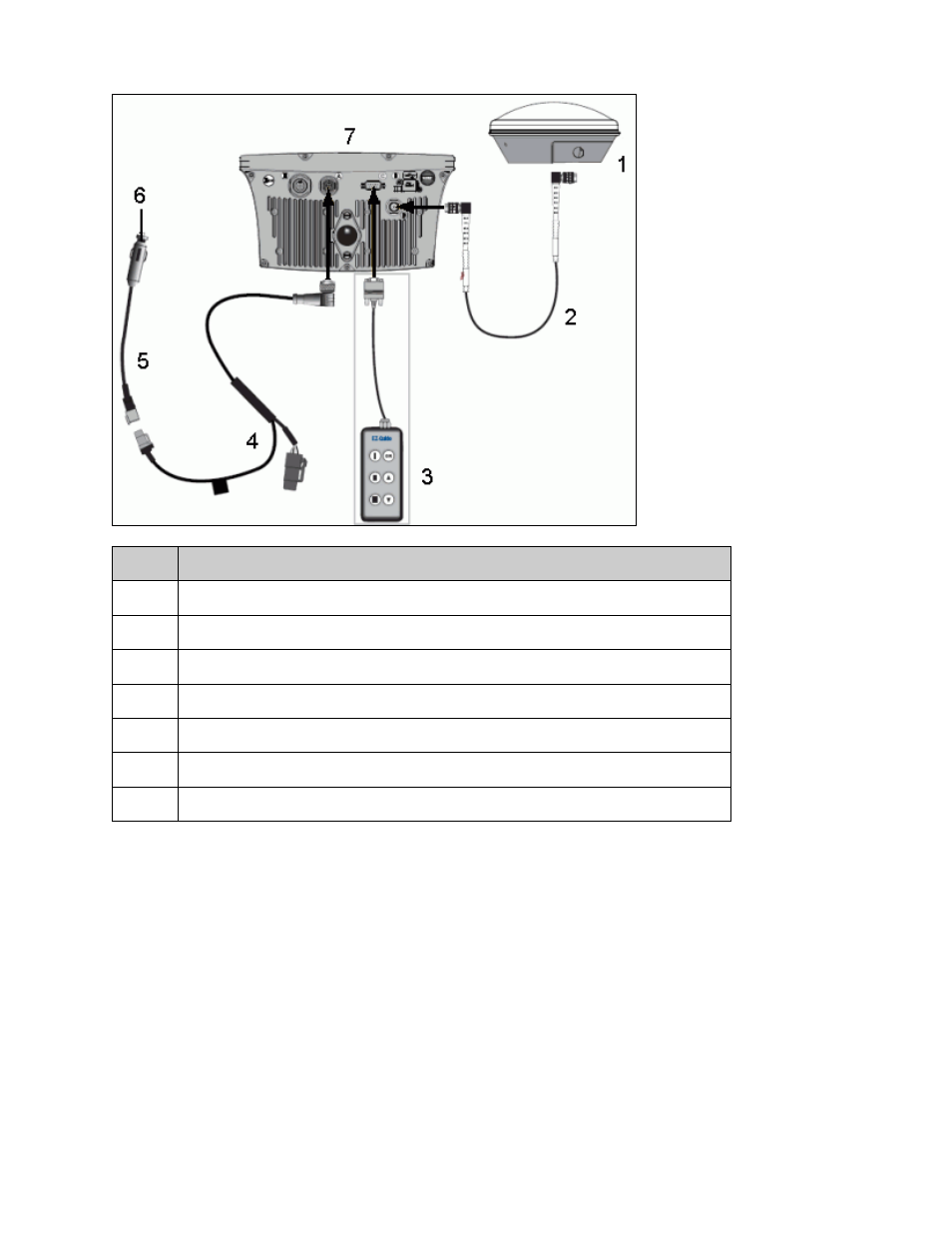

ITEM DESCRIPTION
1 Antenna (P/N 60600−01 for DGPS or P/N 57200−00 for OmniSTAR/RTK)
2 Antenna cable (P/N 50449)
3 Remote keypad (optional − P/N 66030−00)
4 Power cable (P/N 60198 or P/N 62817)
5 Power connector cable (P/N 62818)
6 To power (cigarette lighter)
7 EZ−Guide 500 lightbar (reverse)
Connect the power cable to the power port on the back of the lightbar. 1.
Note: Ensure that the power cable points straight into the back of the lightbar − not at an angle.
Connect the antenna cable to the antenna port. 2.
Tighten the cable connector until it is fully secure. 3.
Connect the other end of the power cable to the vehicle cigarette lighter. The lightbar turns on. 4.
Caution: Do not disconnect or connect any cables or connect the EZ−Steer 500 system while the lightbar is
running. To connect or disconnect cables, first turn off the system.
