Name the field (if you are creating a field). 4.
Enter record keeping information. 5.
Drive and define the guidance line. 6.
Step 1: Selecting the pattern type
Note: If the pattern type and implement setup are already correct, just press .
Press to select Pattern Type. 1.

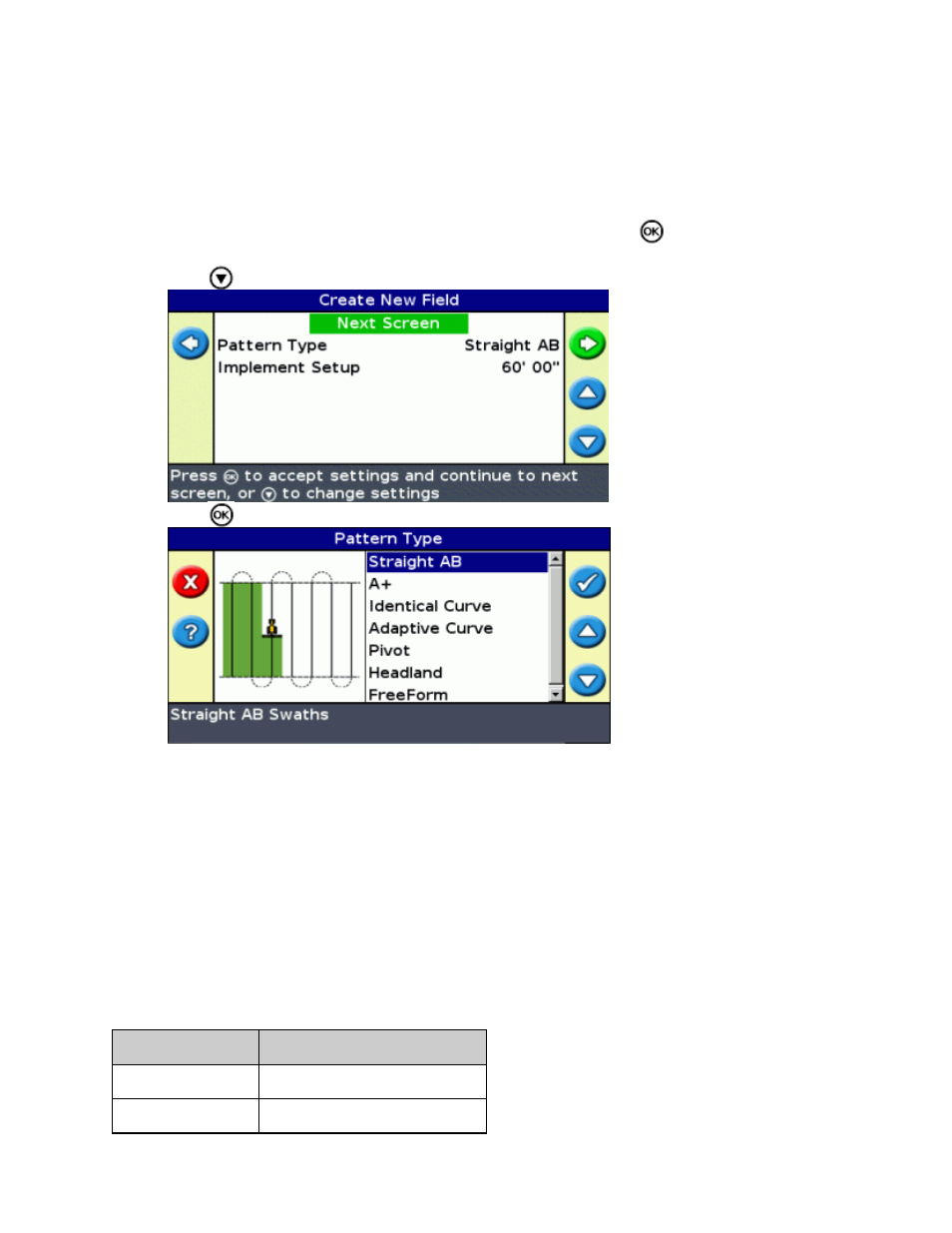

Press . The Pattern Type screen appears. 2.
Select which of the seven guidance patterns you want to base guidance on. For a description of the
different field patterns, see
Guidance Patterns.
3.
Step 2: Setting up the implement (if necessary)
To make optimal use of the EZ−Guide 500 system, correctly configure the implement that is attached to the
vehicle. If the implement is offset and you do not configure it, there will be gaps and overlaps in your coverage.
See Implement Setup.
Step 3: Setting up any additional pattern requirements (if necessary)
Some guidance patterns require additional information:
If you selected ... You need to ...
A+ define the heading.
Headlands define the number of circuits.
