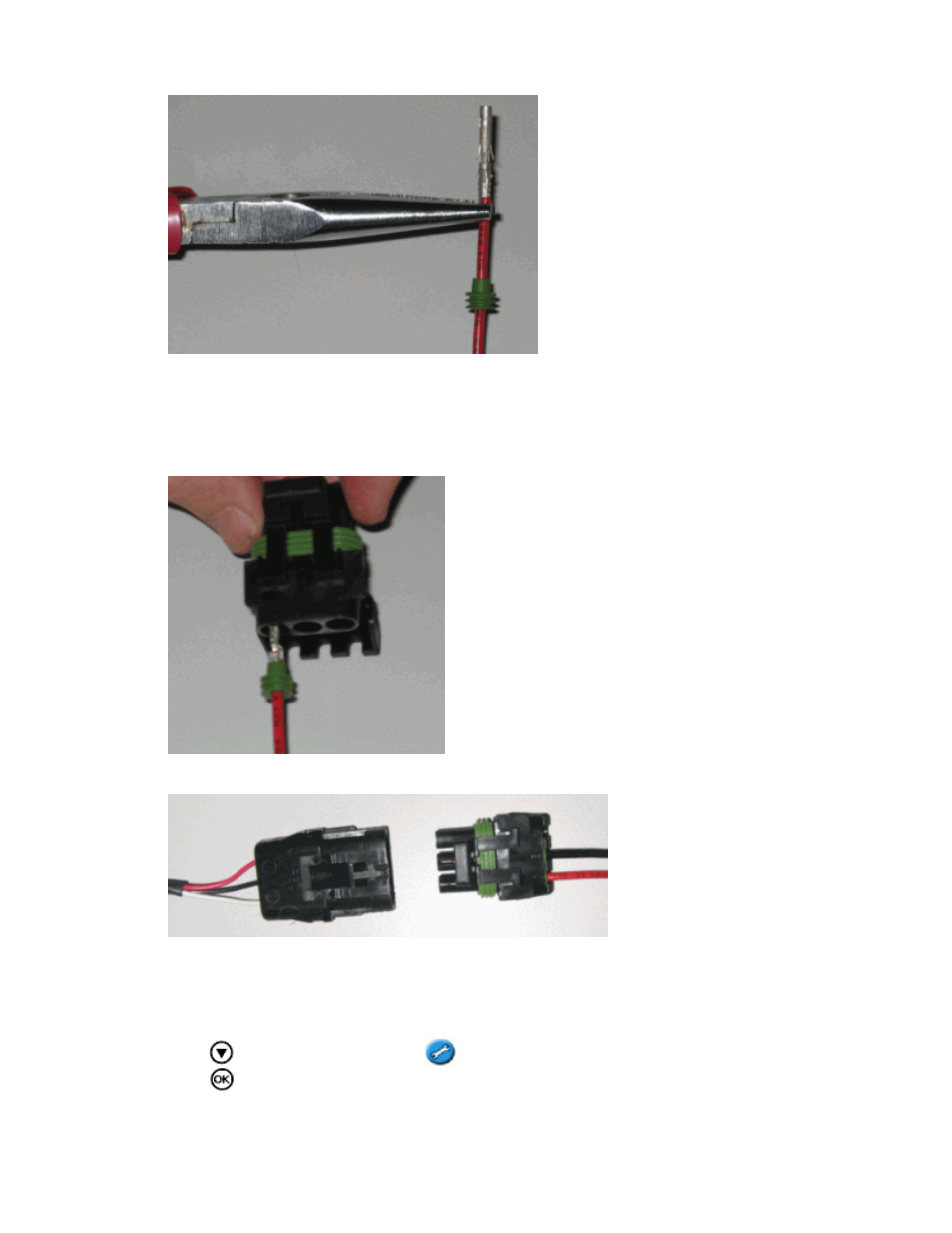

Insert the wires with terminal connectors and the cable seals into the appropriate holes on the female
WeatherPack connector: 4.
Ground wire − Connector hole B
♦
Switch wire − Connector hole C
♦
Caution: Ensure that you do not supply either wire with power. If necessary, use a relay to isolate the
lightbar from the power source.
Plug the female connector into the male connector on the interface cable: 5.
Enabling the switch on the lightbar
From the main guidance screen:
Press until you have selected the icon. 1.
Press . The Configuration screen appears. 2.
Make sure that the User Mode field is set to Advanced. 3.
