EZ−Boom 2010 System
EZ−Boom Features
When the EZ−Guide 500 system has firmware version 2.00 (or higher), it can be connected to the EZ−Boom 2010
automated application control system. This chapter describes features of the lightbar when an EZ−Boom 2010
system is connected.

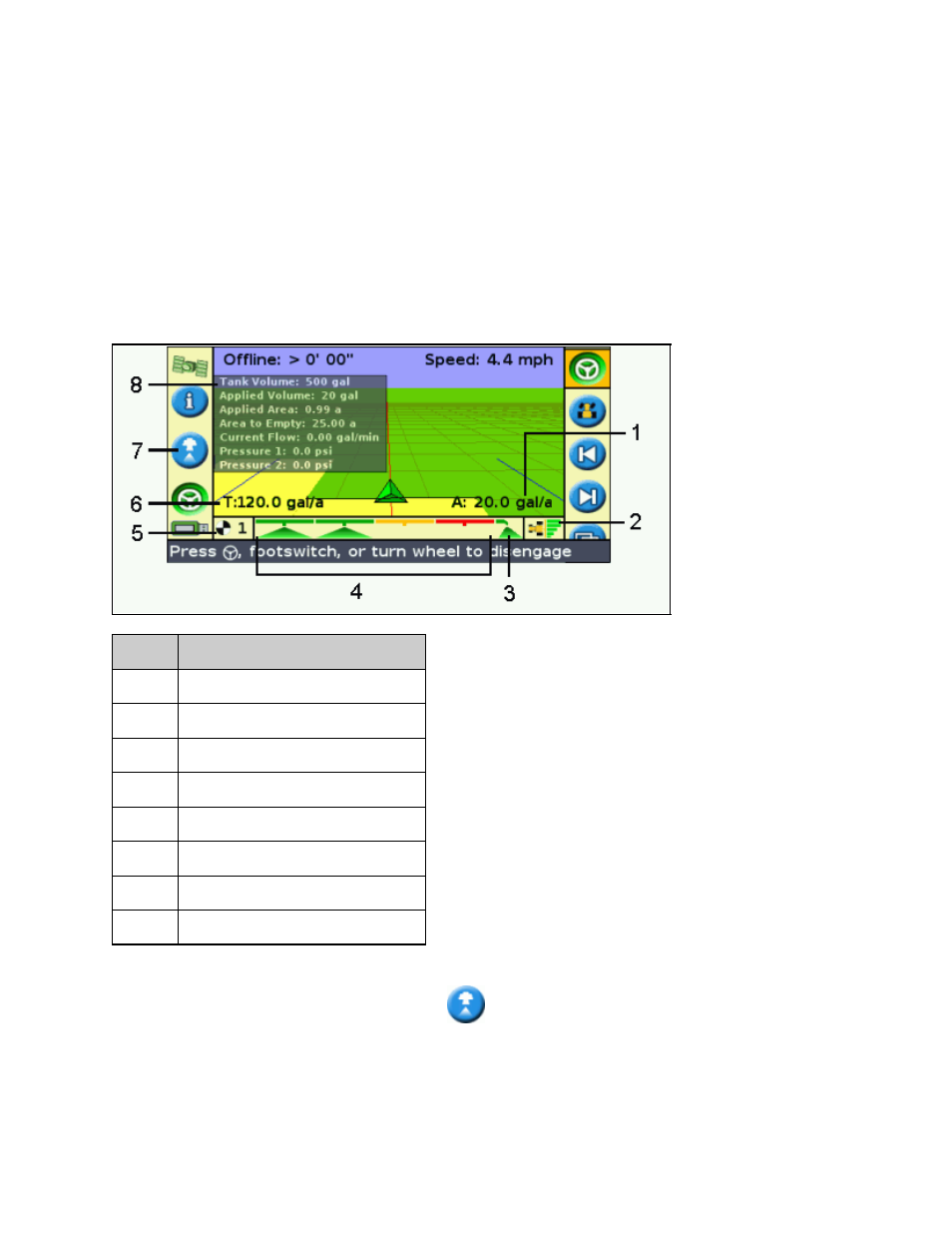

When the EZ−Boom 2010 system is connected to the lightbar, the following features appear or become available:
ITEM DESCRIPTION
1 The actual current rate
2 Auto/manual switching indicator
3 Fence nozzle indicator
4 Boom section status indicators
5 Rate switch position
6 The intended target rate
7 EZ−Boom quick access icon
8 Information tab
Information tab − An additional information tab lists sprayer−specific information.
•
EZ−Boom quick access icon − The icon enables you to access the most common EZ−Boom settings
more quickly. When you select the icon, the following screen appears:
•
