To complete the headland, do one of the following: 5.
Drive around the rest of the headland and then drive back into the start−point circle. When you
drive into the start−point circle, the headland is defined.
♦
Select the icon and then press . The headland completes with a straight line from the
vehicle position to the start point.
♦
The headland guidance line appears.
When the vehicle moves out of the headland and into the interior of the pattern, the interior is populated
with guidance lines (straight AB or A+, depending on which internal pattern you selected).
FreeForm
The FreeForm(TM) guidance pattern is an advanced pattern that enables you to create multiple lines of different
types in a single field to obtain guidance in fields of any shape. You need to record each line that you drive, to
generate the next guidance line. You can create:
Curved line segments
•
Straight line segments in the form of straight AB Lines
•
With this combination, the FreeForm pattern can be useful for creating non−circular spirals or multiple curved
guidance lines for irregular−shaped fields.

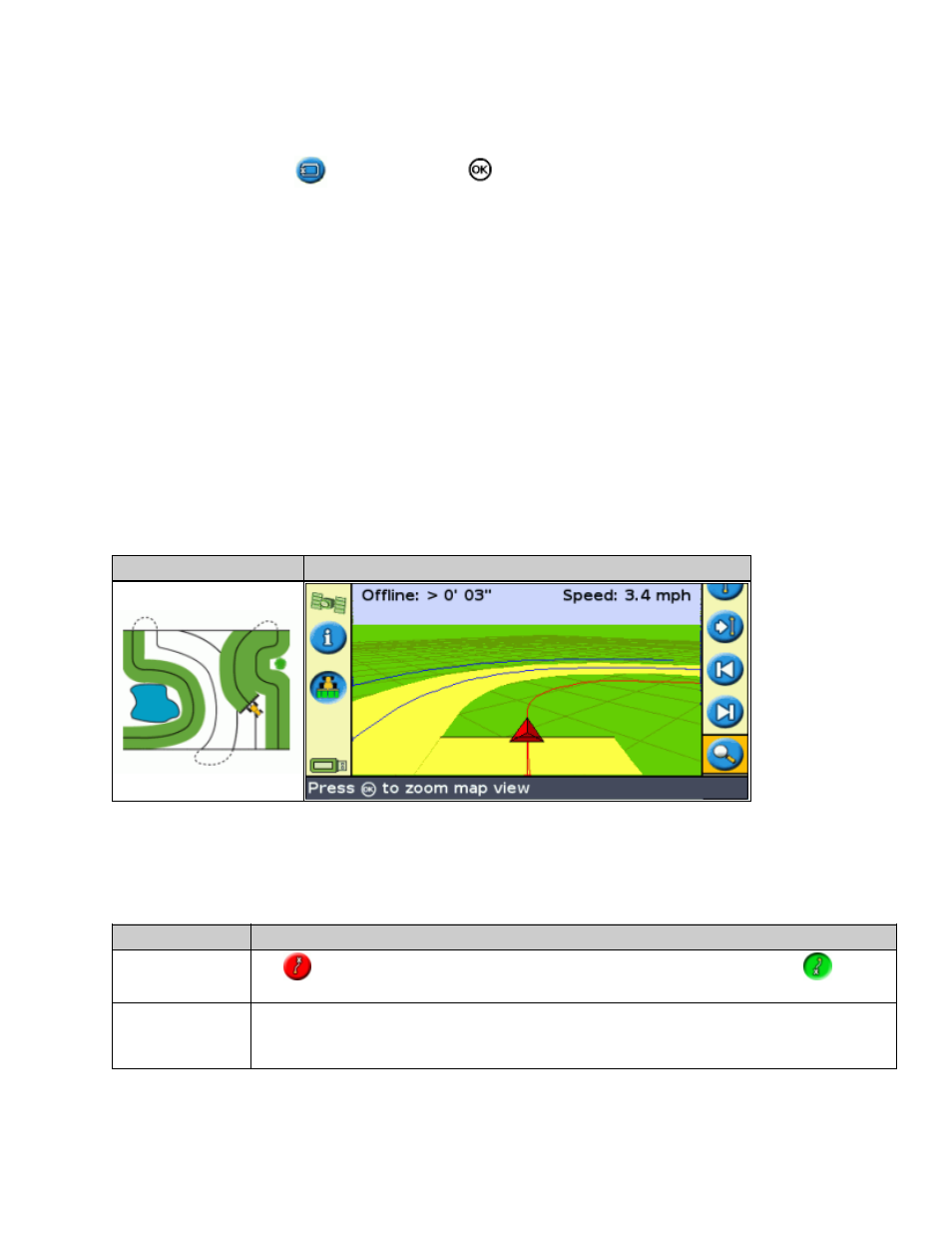

PATTERN EXAMPLE
The FreeForm Recording option
When you are driving a curve, you need to record your path so the lightbar can create your next guidance line.
There are several different options that control when the lightbar records your path:
ITEM DESCRIPTION
Manual
The icon enables you to manually start recording a FreeForm curve and the icon
enables you to manually end recording.
Coverage
A FreeForm curve is recorded whenever coverage logging is enabled.
If the EZ−Boom 2010 system is connected, a FreeForm curve is recorded whenever the
EZ−Boom master switch is on.
To adjust the FreeForm Recording option:
