Drive to the start point and then select one of these icons to begin defining guidance.
For more information about the various field patterns, see Guidance Patterns.
Implement Setup
To make optimal use of the EZ−Guide 500 system, correctly configure the implement that is attached to the
vehicle. If the implement is offset and you do not configure it, there will be gaps and overlaps in your coverage.
From the Create New Field or Add AB Line screens:

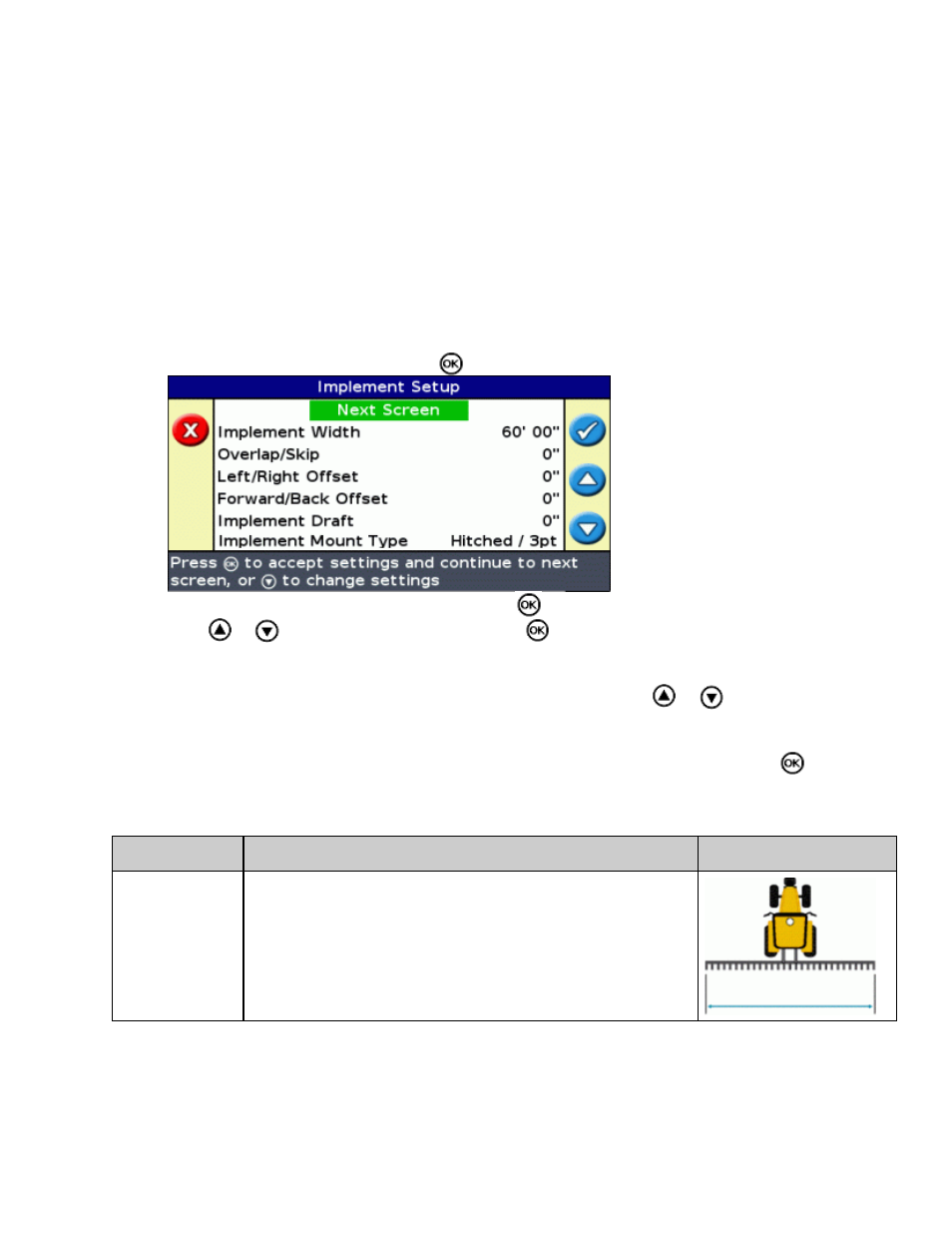

Select Implement Setup and then press . The Implement Setup screen appears: 1.
Select a setting you want to change and then press . The adjustment screen for that setting appears. 2.
Press or to adjust the setting and then press . The Implement Setup screen reappears with the
changed setting.
3.
Note: When you need to adjust a value by a larger margin, hold down or to change the value.
After a few seconds the digits will change more quickly.
When you have set all the required implement options, select Next Screen and then press . 4.
The implement settings are:
ITEM DESCRIPTION EXAMPLE
Implement
Width
The side−to−side width of the implement.
44
