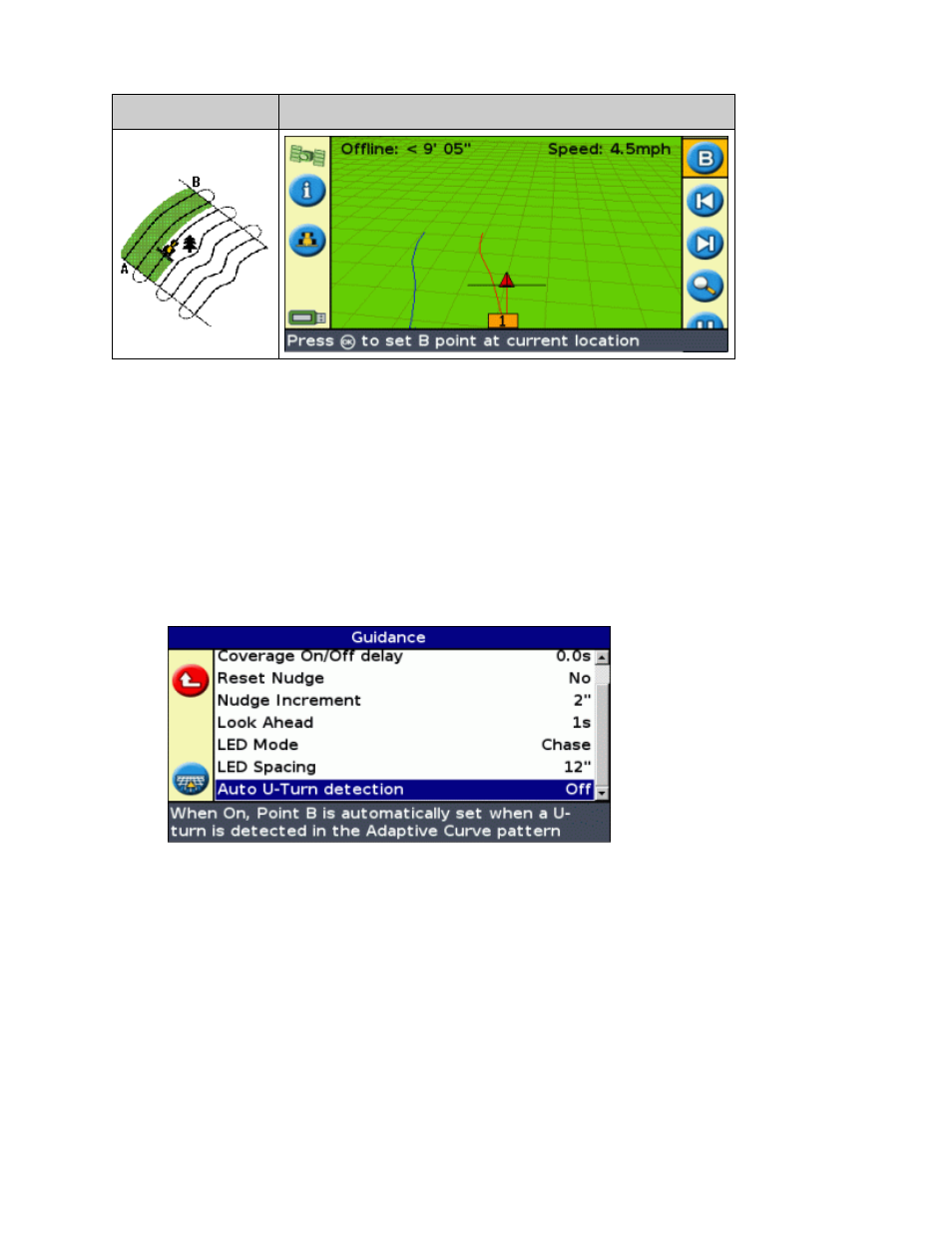

PATTERN EXAMPLE
There are two ways to define adaptive curves:
Set the A and B points
•
Set the A point and perform a U−turn onto the next swath (which is automatically detected)
•
The method that you use depends on the Auto U−Turn detection setting.
Changing the Auto U−Turn detection setting
Note: To change the Auto U−turn detection, the lightbar must be in Advanced mode.
Select Configuration / System / Guidance. The Guidance screen appears. 1.
Adjust the Auto U−Turn detection setting. 2.
Mapping an adaptive curve
There are two ways to use the adaptive curve pattern:
Automatically: Set the Auto U−turn detection option to On and then perform a U−turn to generate each
new swath.
•
Manually: Set the Auto U−turn detection option to Off and then set the B point at the end of each swath to
generate the next swath.
•
Adaptive curves with automatic turn detection
Drive to the start point of the curve. 1.
25
