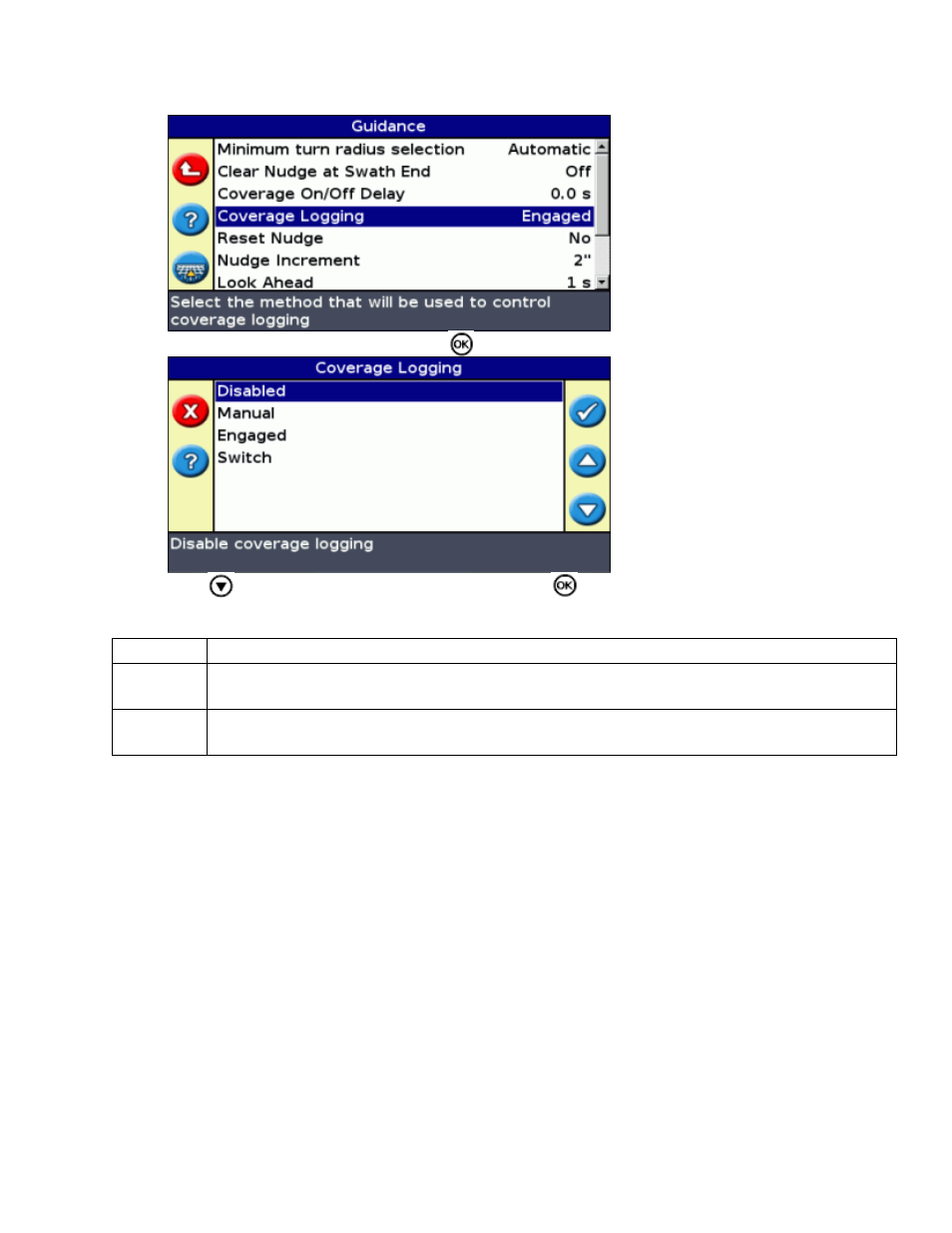

Select System / Guidance. The Guidance screen appears: 4.
Select Coverage Logging and then press . The Coverage Logging screen appears: 5.
Press until you have selected Switch and then press . 6.
In the Coverage Logging Input screen, select one of the two options: 7.
ITEM DESCRIPTION
Active Low
When the switch is closed, the two pins should be crossed and the coverage will be recorded.
When the switch is open, the two pins will not be in contact and the coverage will not be recorded.
Active High
When the switch is open, the two pins will not be in contact and the coverage will be recorded.
When the switch is closed, the two pins should be crossed and the coverage will not be recorded.
Note: If necessary, set the user mode back to Easy.
