Press or to select the correct value. 1.
Press to enter the selection and proceed. 2.
You can select whether or not the Quick Start Wizard appears next time you turn on the lightbar. If you choose to
hide the wizard at startup, the lightbar skips the wizard and starts on the main guidance screen.
To alter these settings after startup, run the Quick Start Wizard from Configuration / Quick Start Wizard.
Once you complete the Quick Start Wizard, the main guidance screen appears.

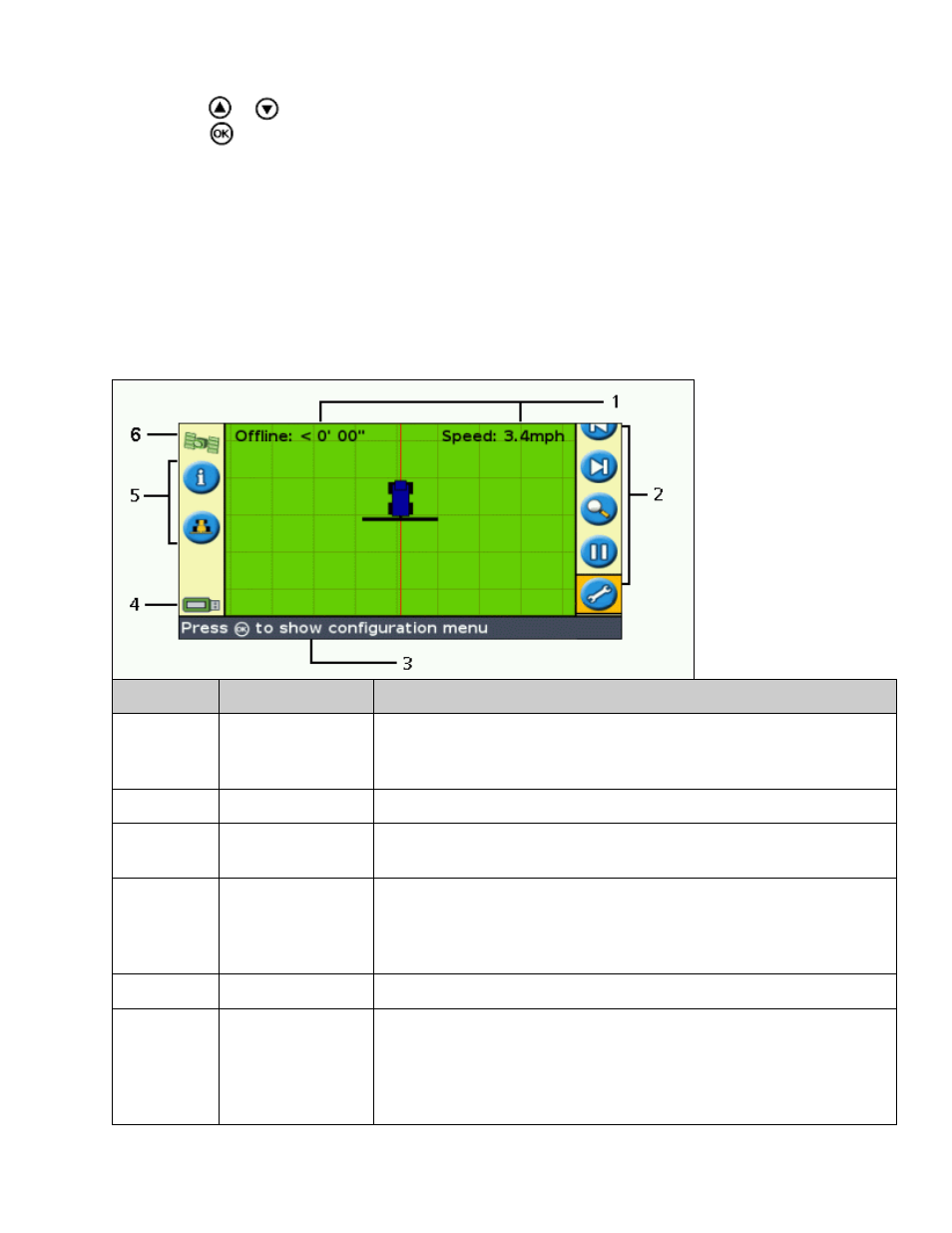

Items on the Main Guidance Screen
ITEM NAME DESCRIPTION
1 Status text
There are two status text items on the main guidance screen. The item on
the left shows the distance that the vehicle is from the guidance line. The
item on the right shows the current vehicle speed.
2 Action icons How the Buttons Work
3
Tips / Message
panel The Tip / message panel explains the icon functions and shows driving
tips.
4 USB status icon
Show the status of the USB drive:
Green − the drive is installed and ready
Orange − the drive is installed, but still loading
Red − the drive has been disabled due to an error
5 Function icons How the Buttons Work
6 GPS quality icon
Shows the quality of the GPS signal:
Green − the signal is within the appropriate bounds
Yellow − there is a signal, but it is outside the lightbar's quality tolerance
settings
Red − there is no signal
15
