Fabric OS 5.0.0 Advanced Web Tools user guide 65

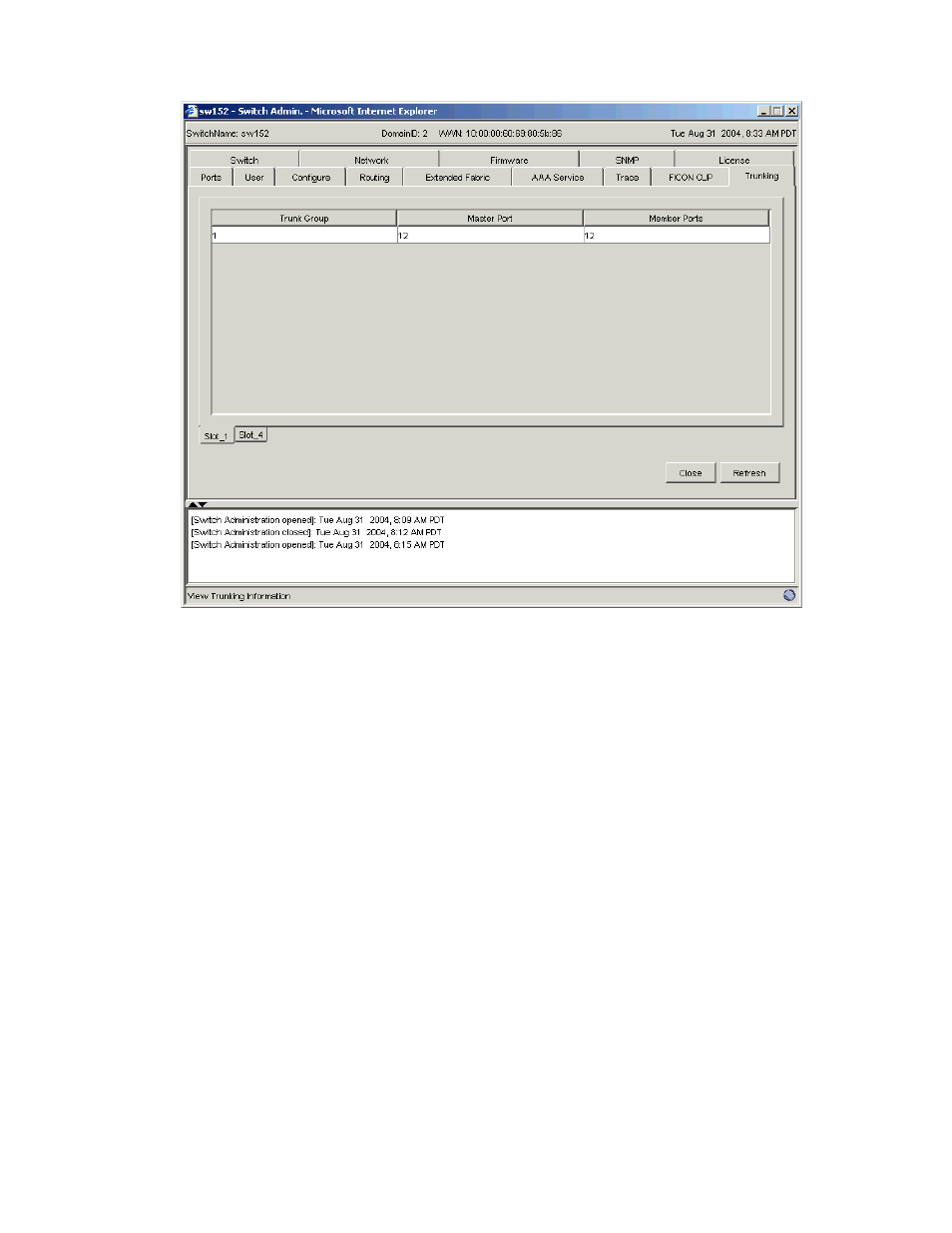

Figure 15 Trunking tab
Displaying trunk group information
Use this procedure to display the following information about ISL Trunking groups:
• Trunk group number identifier
• Master port
• Member ports
To view information on a trunk group:
1. Launch the Switch Admin module as described on page 43 .
2. Click the Trunking tab.
3. Optional: Click Refresh to refresh the information.
Disabling or reenabling trunking mode on a port
When the trunking license is activated, trunks are automatically established on eligible ISLs and trunking
capability is enabled by default on all ports. Use the following procedure to disable trunking on a port or
to reenable trunking if it has been disabled.
To disable or reenable trunking mode on a port:
1. Launch the Switch Admin module as described on page 43 .
2. Click the Ports tab (see Figure 10 on page 52).
