Fabric OS 5.0.0 Advanced Web Tools user guide 29

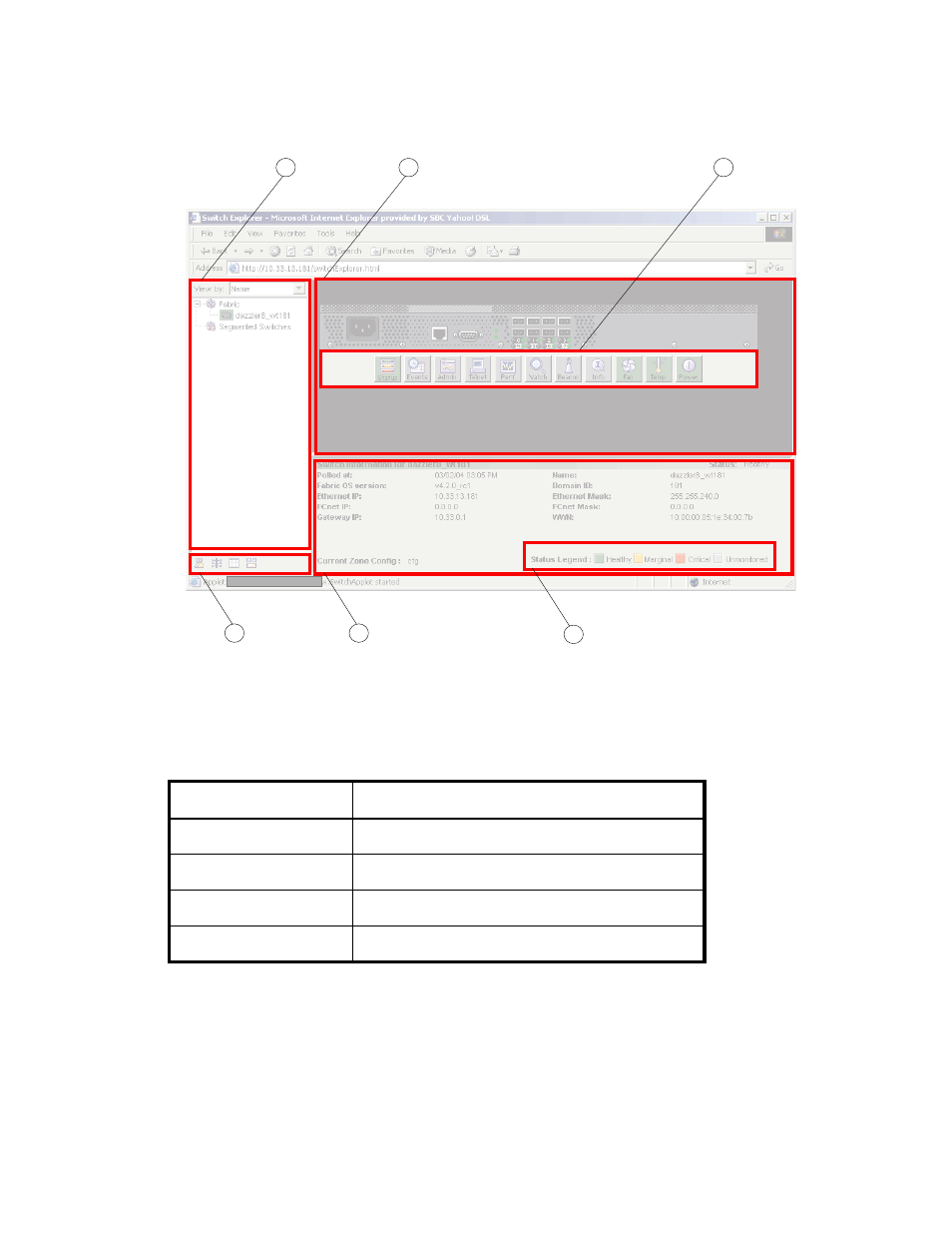

Figure 4 is an example of the Advanced Web Tools Switch Explorer for a SAN Switch 2/8V. This is the
same format of the Switch Explorer used in Advanced Web Tools for the SAN Switch 2/16V, SAN Switch
2/32, and SAN Switch 4/32.
Figure 4 Advanced Web Tools Switch Explorer for a SAN Switch 2/8V
Different areas of the Switch Explorer refresh at different rates. Table 3 lists the polling rates for the various
panels in Advanced Web Tools.
Fabric Tree
The Fabric Tree is the left panel of the Switch Explorer. The Fabric Tree displays all switches in the fabric,
including switches that do not have an Advanced Web Tools license. Switches segmented before
Advanced Web Tools is launched are not displayed.
Although all switches in the fabric are displayed, only switches that have an Advanced Web Tools license
installed can be managed through Advanced Web Tools. Other switches must be managed through the
Fabric OS command line interface (CLI) or another management application. For information on adding
an Advanced Web Tools license to a switch, see ” Installing an Advanced Web Tools license ” on page 37.
Table 3 Polling rate in the Switch Explorer window
Switch Explorer area Polling rate
Name Server User-defined; 15 seconds minimum
Zoning Database 60 seconds
Fabric Watch 15 seconds
Performance Monitor 30 seconds
A C
F E B
