74 Managing your fabrics, switches, and ports
4. Enter the password.
The HA Admin module opens, as shown in
Figure 19 .

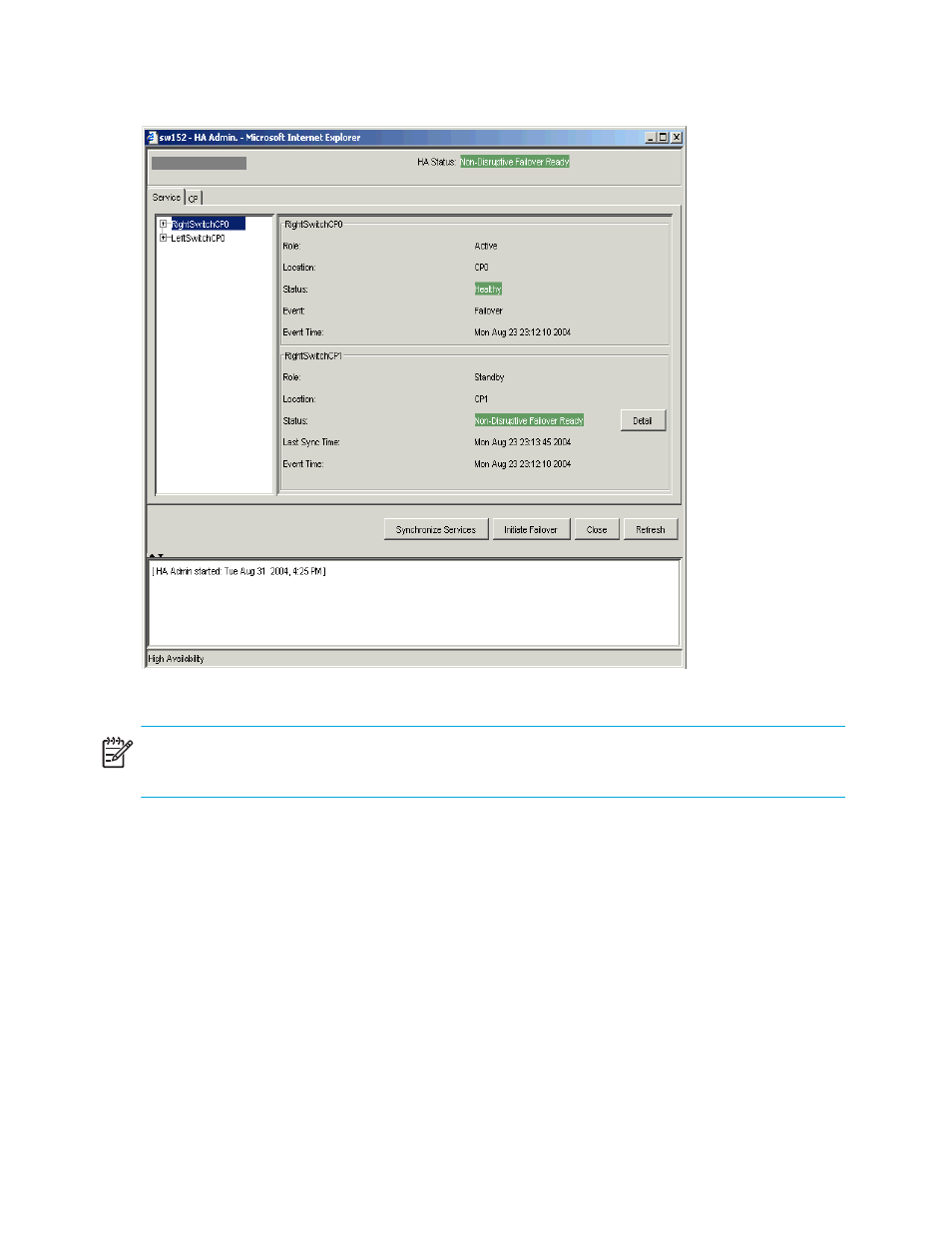

Figure 19 HA Admin module for the Core Switch 2/64
NOTE: There is a background color with the HA Status for each CP. The HA Admin module is not
refreshed automatically. Click Refresh to update the information displayed in the HA Admin module.
Synchronizing services on the CP
A nondisruptive CP failover is possible only when all the services on it have been synchronized.
To synchronize the services:
1. Launch the Hi Avail module as described in ” Launching the Hi Availability module ” on page 73.
2. If the HA Status field displays
Non-Disruptive Failover Ready
, you are finished.
If the HA Status field displays
Disruptive Failover Ready
, continue with step 3 .
3. Click the Synchronize Services button.
The Warning dialog box opens.
4. Click Yes and wait for the CPs to complete a synchronization of services, so that a nondisruptive
failover is ready.
5. Click Refresh to update the HA Status field.
