Figure 11 extended fabric tab – HP Brocade 4Gb SAN Switch for HP BladeSystem c-Class User Manual
Page 19
Fabric OS 5.0.0 Advanced Web Tools user guide
19
•
On page 56, replace
, “Extended Fabric tab,” with the following:

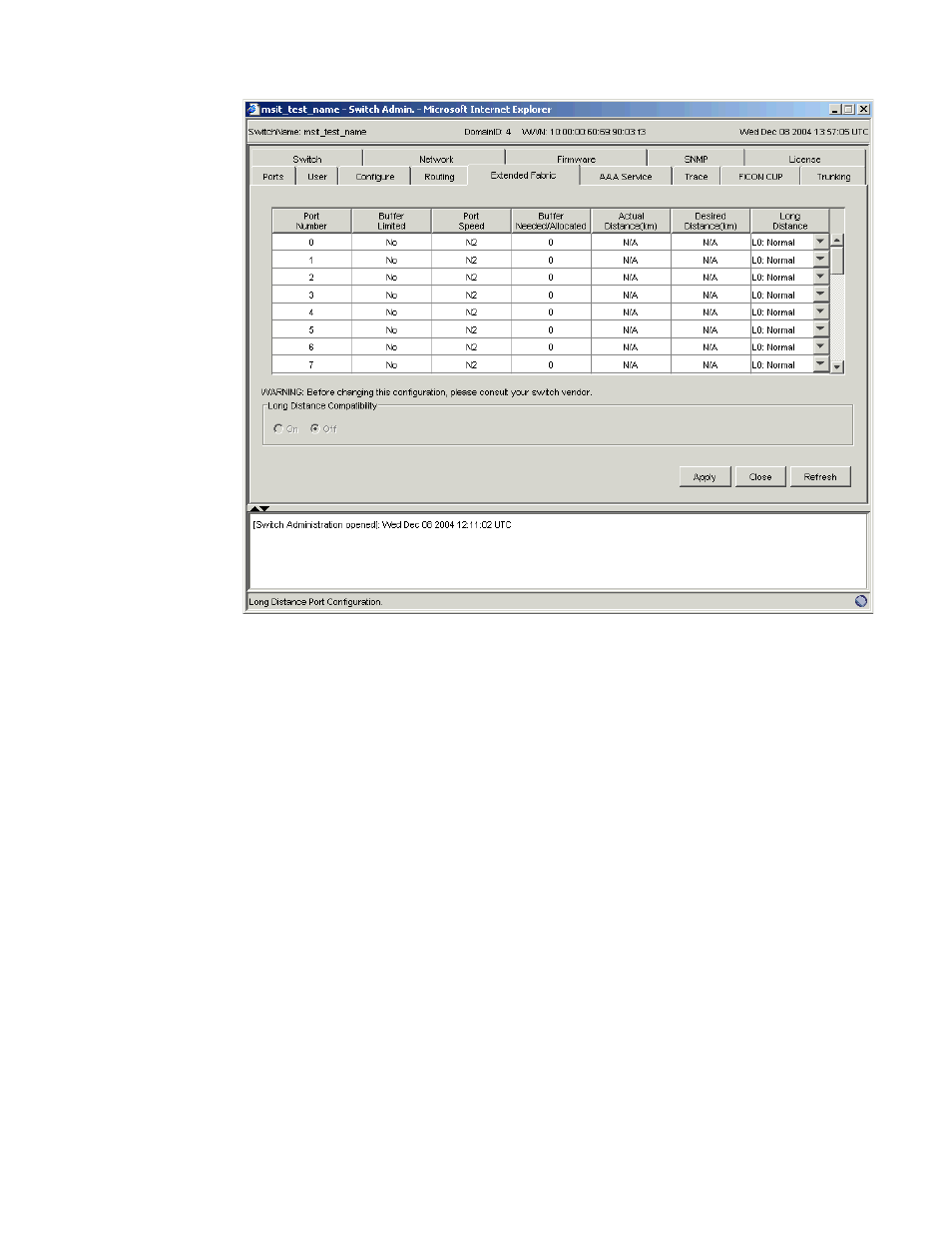

Figure 11
Extended Fabric tab
•
On page 56, in the section, “To configure a port for long-distance connection,” replace this sentence:
For HP StorageWorks SAN Switch 2/8V, SAN Switch 2/16V, SAN Switch 2/32, and SAN Switch
4/32 switches, proceed directly to the next step.
With the following:
For HP StorageWorks SAN Switch 2/8V, SAN Switch 2/16V, SAN Switch 2/32, SAN Switch
4/32, and Brocade 4Gb SAN Switch for HP p-Class BladeSystem, proceed directly to the next
step.
•
On page 57, in the section “Configuring routes,” replace this paragraph:
Routing policies are configured from the CLI. For Fabric OS 4.x, the supported routing policies are:
• port-based
• device-based (SAN Switch 4/32 only)
• exchanged-based (SAN Switch 4/32 only)
For the SAN Switch 4/32 only, the exchange-based routing policy is the default.
With the following:
Routing policies are configured from the CLI. For Fabric OS 5.0.x, the supported routing policies
are:
• port-based
